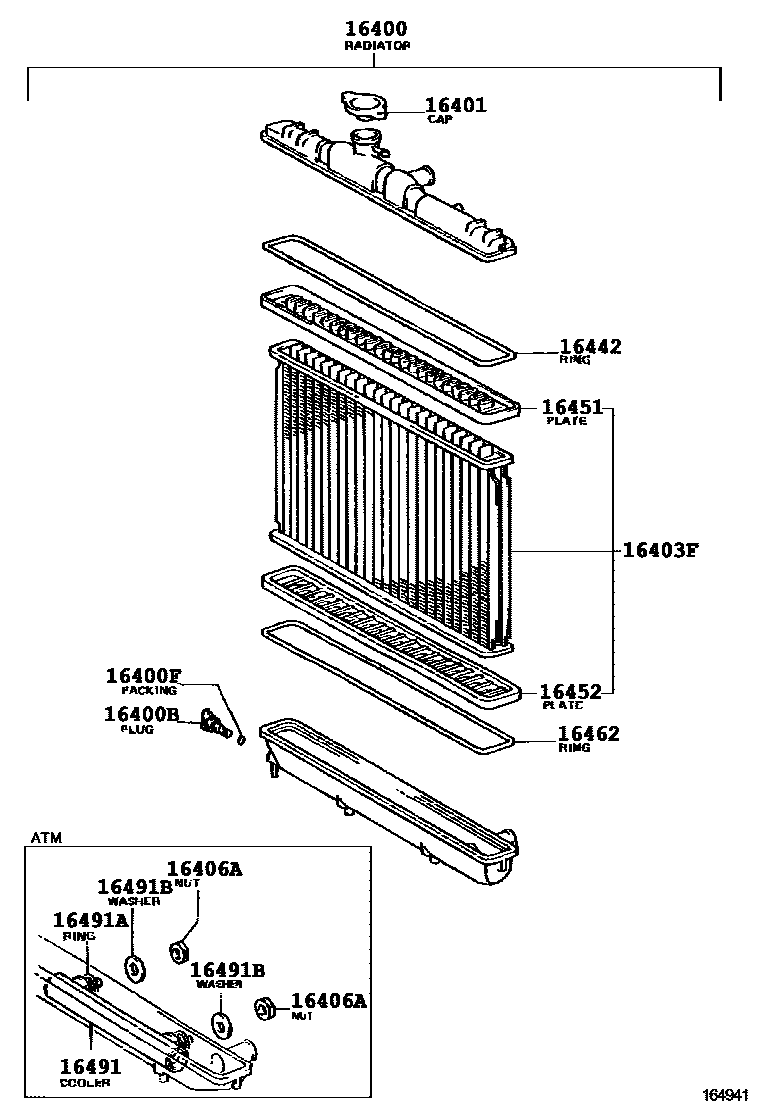

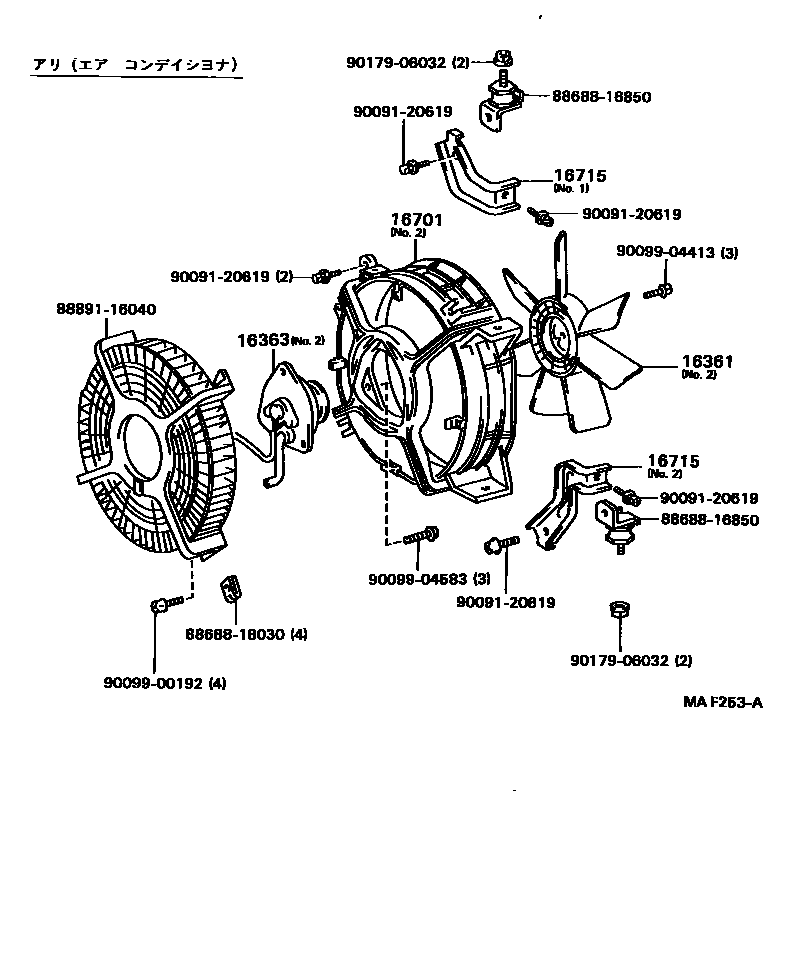

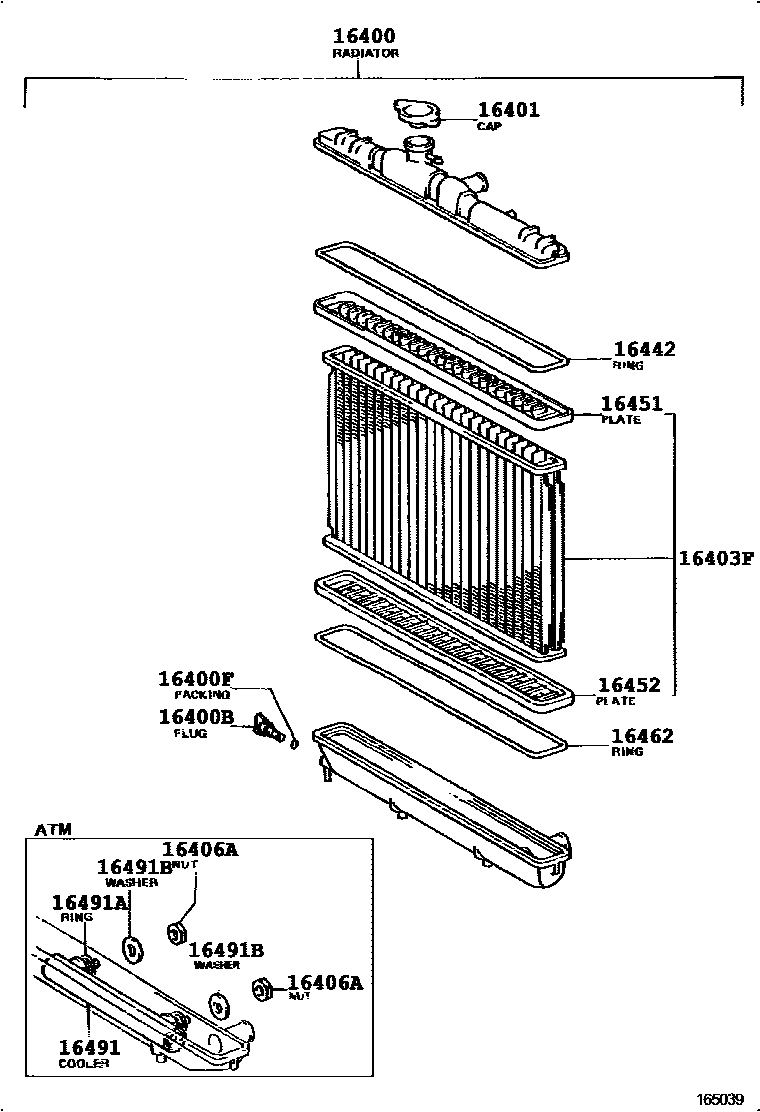

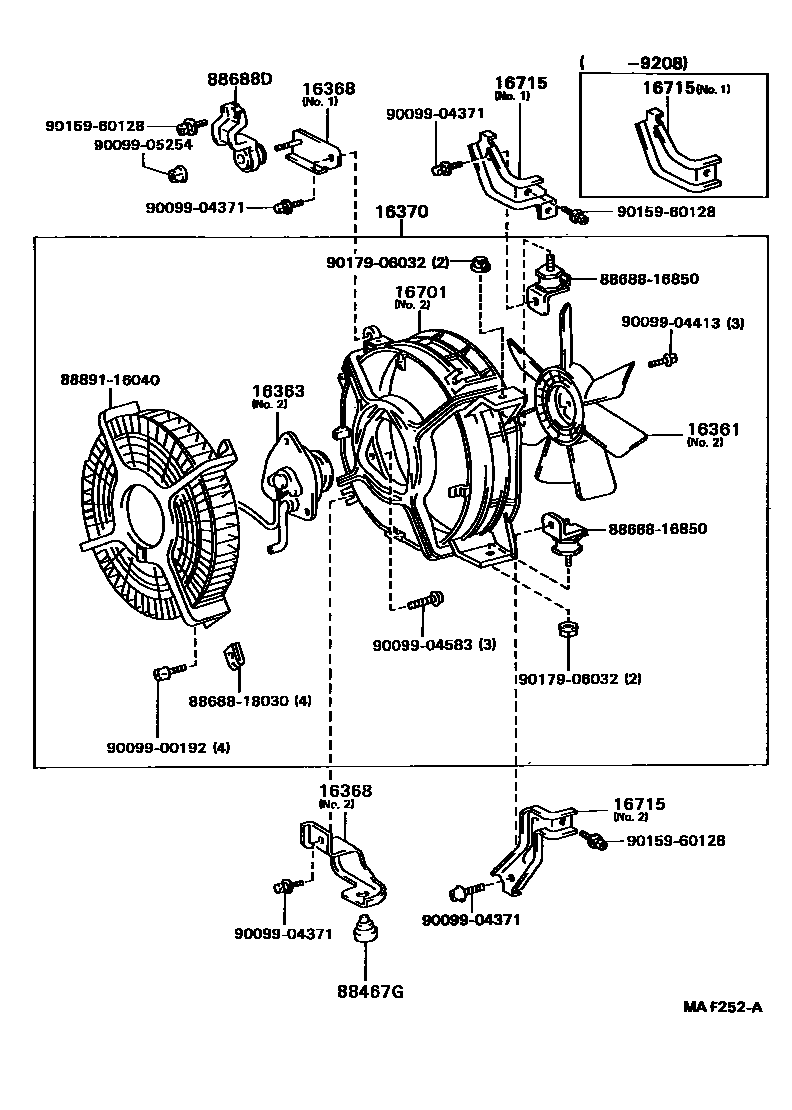

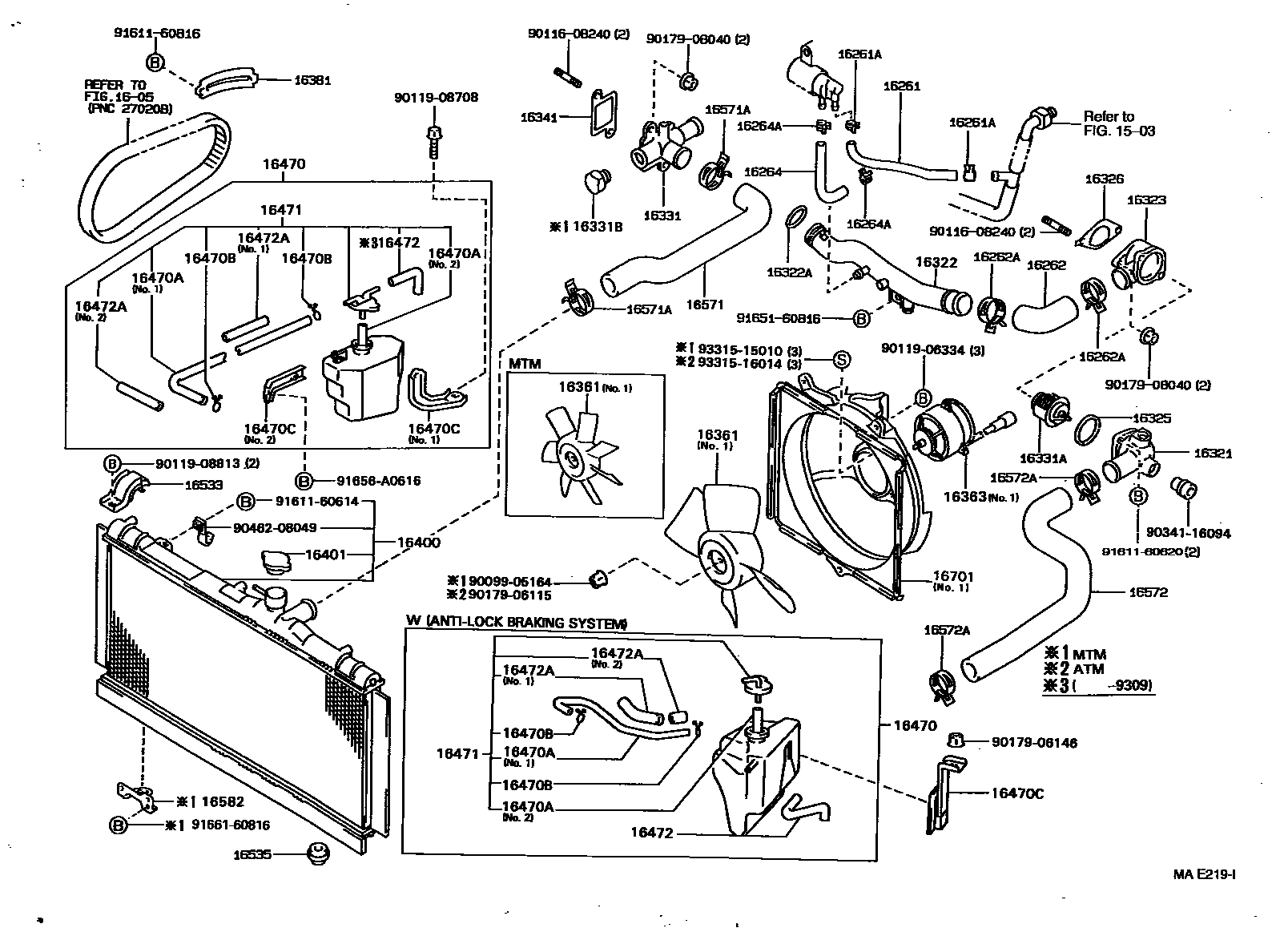

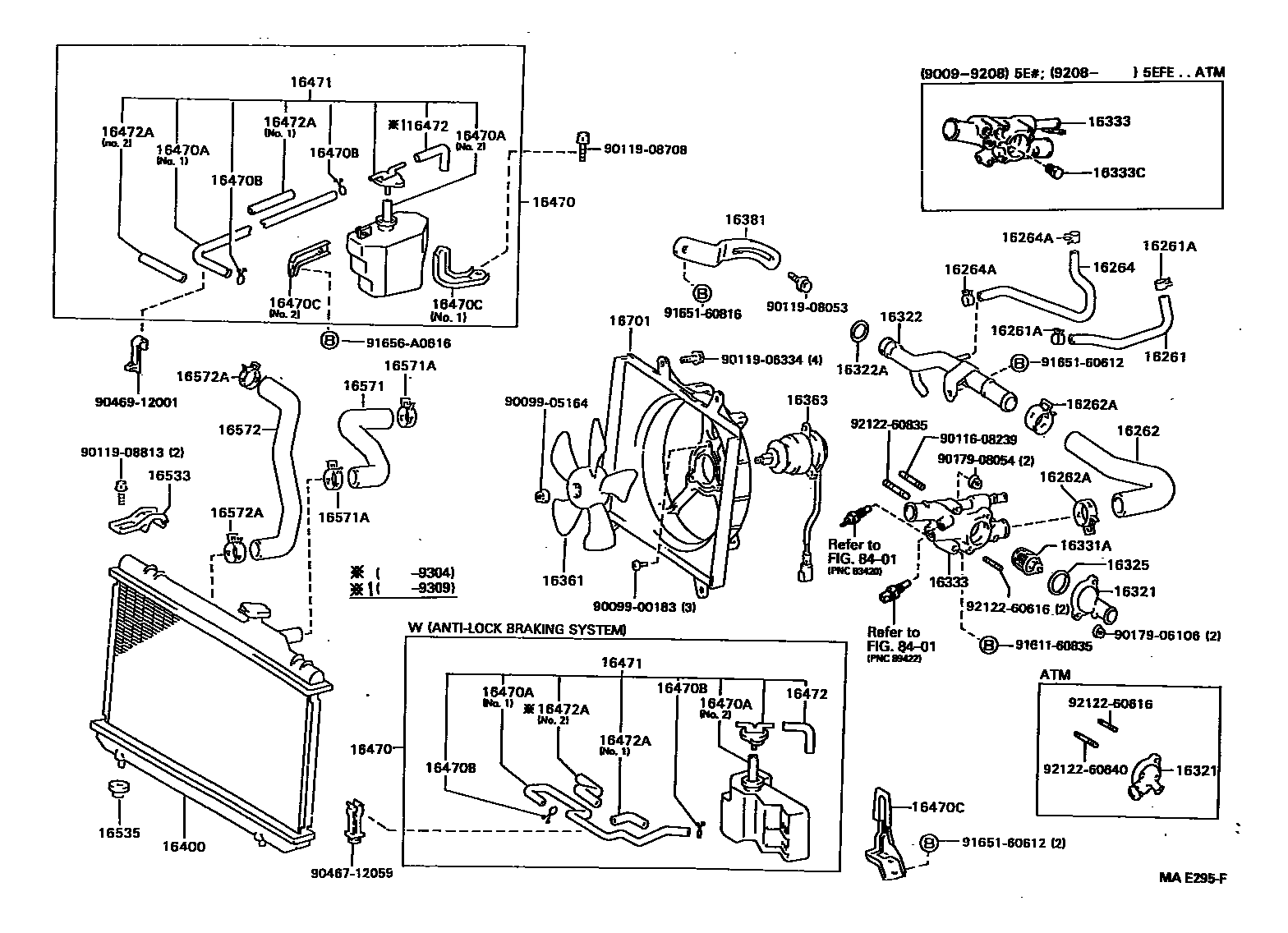

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 6 images and 54 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 16261-11030 · 16261-11050 · 16261-55040 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-11009 · 90467-15022 |
| 16262 | water inlet hose | 16262-10010 · 16262-10020 · 16262-55010 |
| 16262A | Clamp (for water inlet hose) | 90467-34003 · 90467-37001 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-11050 · 16264-11051 · 16264-11060 · 16264-11061 · 16264-55010 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-11009 · 90467-15022 |
| 16321 | water inlet | 16321-10011 · 16321-11011 · 16321-55010 |
| 16322 | PIPE, WATER INLET | 16322-11160 · 16322-11161 · 16322-11162 · 16322-55110 · 16322-55120 |
| 16322A | O-RING, WATER INLET | 90301-31008 · 96711-35028 · 96711-35031 |
| 16323 | HOUSING, WATER INLET | 16032-55010 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-63010 · 16325-63011 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16325-55011 |
| 16331 | Water outlet | 16304-55020 |
| 16331A | thermostat | 90916-03046 |
| 16331B | Screw plug (for water outlet) | 90345-53001 |
| 16333 | Water outlet shell | 16303-11180 · 16303-11190 · 16333-11120 · 16333-11180 |
| 16333C | Headed tapered thread plug | 90345-53007 |
| 16341 | GASKET, WATER OUTLET | 16341-55011 |
| 16361 | Fan | 16361-11020 · 16361-55010 · 16361-55030 · 16361-55040 · 16361-63020 |
| 16363 | cooling fan motor | 16363-11020 · 16363-11030 · 16363-55020 · 16363-55030 · 16363-74060 |
| 16368 | Cooling fan motor bracket | 16368-55010 · 16368-55020 |
| 16370 | No. 2 fan assembly with motor | 16370-55030 |
| 16381 | Fan belt adjustment lever | 16381-11030 · 16381-55010 |
| 16400 | Radiator assembly | 16400-11420 · 16400-11430 · 16400-11440 · 16400-11450 · 16400-11460 · 16400-11490 · 16400-55090 · 16400-55100 |
| 16400B | Radiator drain switch screw plug | 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-72090 |
| 16403F | Radiator core sub-assembly | 16403-11400 · 16403-11420 · 16403-11430 · 16403-11490 · 16403-62050 · 16403-74520 · 16403-74530 |
| 16406A | Bracket (for transmission oil cooler) | 16406-74520 |
| 16442 | O-ring (for radiator tank) | 16442-11380 · 16442-70410 · 16442-74520 · 16462-54790 · 16462-62050 |
| 16451 | Radiator core upper plate | 16451-11380 · 16451-70410 · 16451-74520 · 16452-54790 · 16452-62050 |
| 16452 | Radiator core lower plate | 16452-11420 · 16452-54790 · 16452-62050 · 16452-70410 · 16452-74520 |
| 16462 | O-ring (for radiator lower tank) | 16462-11420 · 16462-54790 · 16462-62050 · 16462-70410 · 16462-74520 |
| 16470 | Radiator reservoir assembly | 16470-11050 · 16470-55020 · 16470-55030 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16477-11050 · 16478-55020 · 90099-33534 · 90445-12078 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16470C | Bracket (for radiator reservoir) | 16471-55030 · 16473-55030 · 16611-11030 · 16611-55010 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-11050 · 16405-55031 · 16405-55041 |
| 16472 | Breather hose | 16477-55020 · 85338-30010 · 85338-68010 · 85338-74040 |
| 16472A | Hose protector | 16477-55030 · 16478-11050 · 16478-55030 · 16479-11050 · 16479-55020 · 16483-55020 |
| 16491 | Oil cooler (for ATM) | 16491-11310 · 16491-55100 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-62060 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-74520 |
| 16533 | Radiator upper bracket | 16505-11130 · 16505-11140 · 16533-55040 |
| 16535 | Radiator lower support | 16535-55040 · 16535-64050 · 16535-74070 |
| 16571 | Radiator water inlet hose | 16571-11110 · 16571-55040 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-31003 · 90467-34003 |
| 16572 | Radiator outlet hose | 16572-11200 · 16572-11210 · 16572-55070 · 16572-55080 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-31003 · 90467-34003 |
| 16582 | Radiator bracket No. 1 | 16582-55010 |
| 16701 | Fan cover sub-assembly | 16711-11190 · 16711-11200 · 16711-55090 · 16711-55100 · 16711-55110 |
| 16715 | fan cover bracket | 16715-55010 · 16715-55020 · 88688-1G030 |
| 88467G | Rubber bushing | 88467-10020 · 88467-16090 |
| 88688D | cooler bracket | 88688-16830 |
