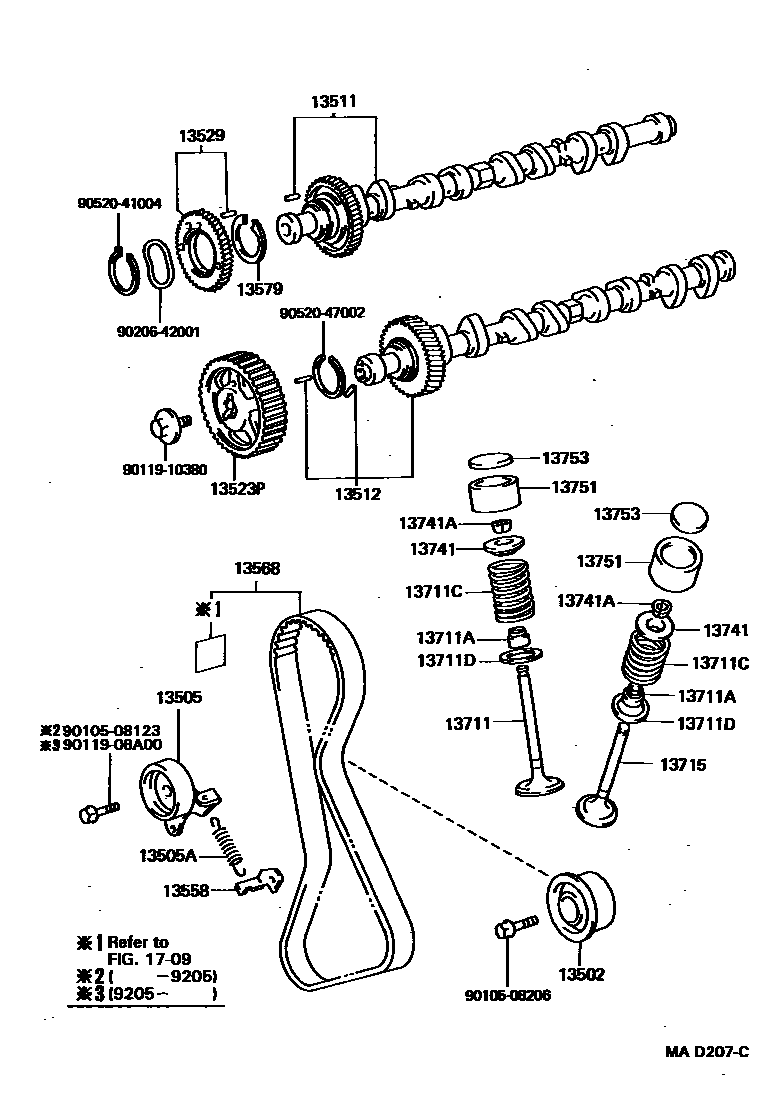

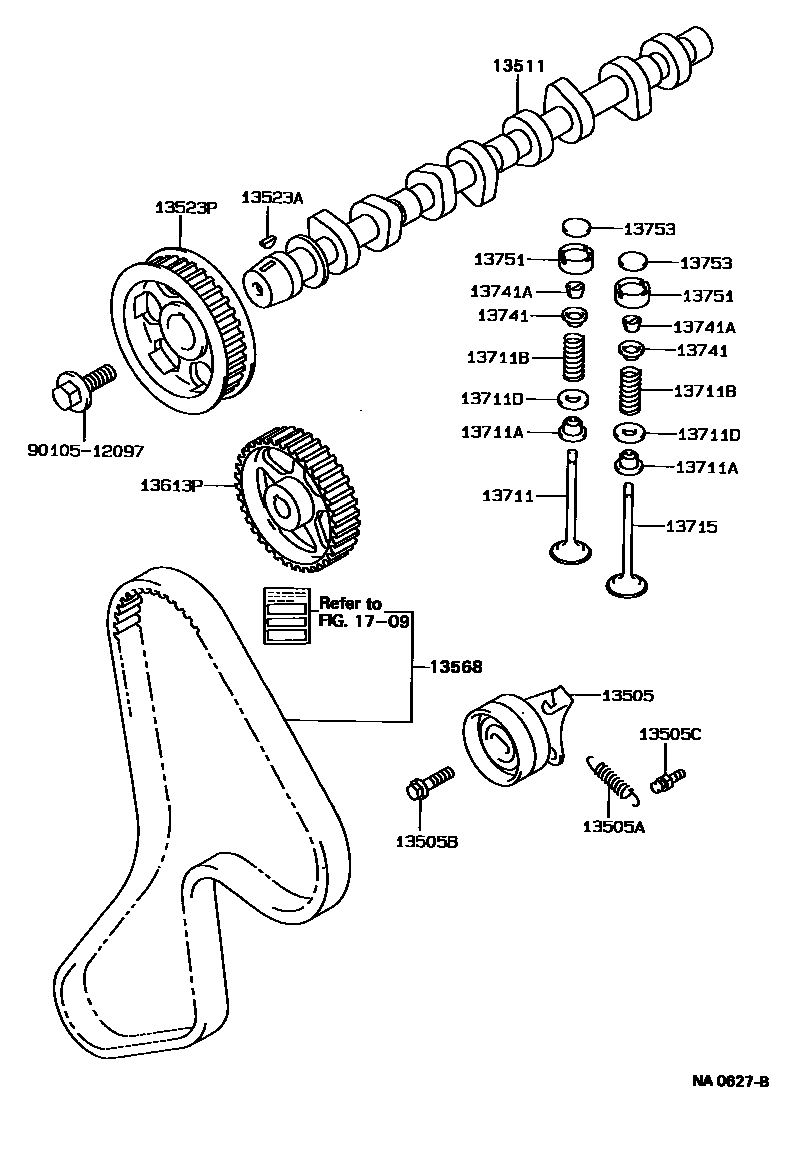

Toyota COROLLA Camshaft & Valve — Figure 1302
Toyota COROLLA EPC diagram 1302, Camshaft & Valve, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13502 | No. 2 timing belt idler pulley sub-assembly | 13503-11030 |
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-11040 · 13505-55020 |
| 13505A | Tension spring (for idler pulley) | 90506-15003 · 90506-16050 · 90506-19002 |
| 13505B | Flange bolts (for idler gear) | 90119-08449 |
| 13505C | Pin (for idler tension spring) | 13575-55010 |
| 13511 | camshaft | 13501-11020 · 13501-11040 · 13501-55020 |
| 13512 | Camshaft No. 2 | 13502-11010 · 13502-11030 |
| 13523A | Half-moon pin (for timing gear) | 90280-05004 |
| 13523P | Camshaft timing pulley | 13051-64011 · 13051-64012 · 13523-11020 |
| 13529 | Camshaft counter gear | 13529-74900 |
| 13558 | Spring bracket (for idler pulley) | 13558-11050 |
| 13568 | timing belt | 13568-11080 · 13568-11100 · 13568-19105 · 13568-19106 · 13568-19115 · 13568-19116 · 13568-55010 · 13568-59055 |
| 13579 | Camshaft timing gear bolt washer | 13579-74010 |
| 13613P | Fuel injection pump drive pulley | 13613-64011 |
| 13711 | intake valve | 13711-11010 · 13711-11011 · 13711-11012 · 13711-55010 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02062 · 90913-02086 · 90913-02088 |
| 13711B | Compression spring (for inner side) | 90501-35014 |
| 13711C | Compression spring (for outside) | 90504-34001 |
| 13711D | Flat washer (for valve spring seat) | 90201-16020 · 90201-19008 |
| 13715 | exhaust valve | 13715-11030 · 13715-55010 |
| 13741 | Valve spring seat ring | 13741-10020 · 13741-16010 |
| 13741A | Valve spring seat lock plate | 90913-03021 |
| 13751 | valve lifter | 13751-16010 · 13751-55010 · 13751-66020 |
| 13753 | valve adjustment gasket | 13753-16020 · 13753-16040 · 13753-16060 · 13753-16080 · 13753-16100 · 13753-16120 · 13753-16140 · 13753-16160 · 13753-16180 · 13753-16200 · 13753-16220 · 13753-16240 · 13753-16260 · 13753-16280 · 13753-16300 · 13753-16320 · 13753-16340 · 13753-55010 · 13753-55030 · 13753-55050 · 13753-55070 · 13753-55090 · 13753-55110 · 13753-55130 · 13753-55150 · 13753-55170 · 13753-55190 · 13753-55210 · 13753-55230 · 13753-55250 · 13753-55270 · 13753-55290 · 13753-55310 · 13753-55330 |
