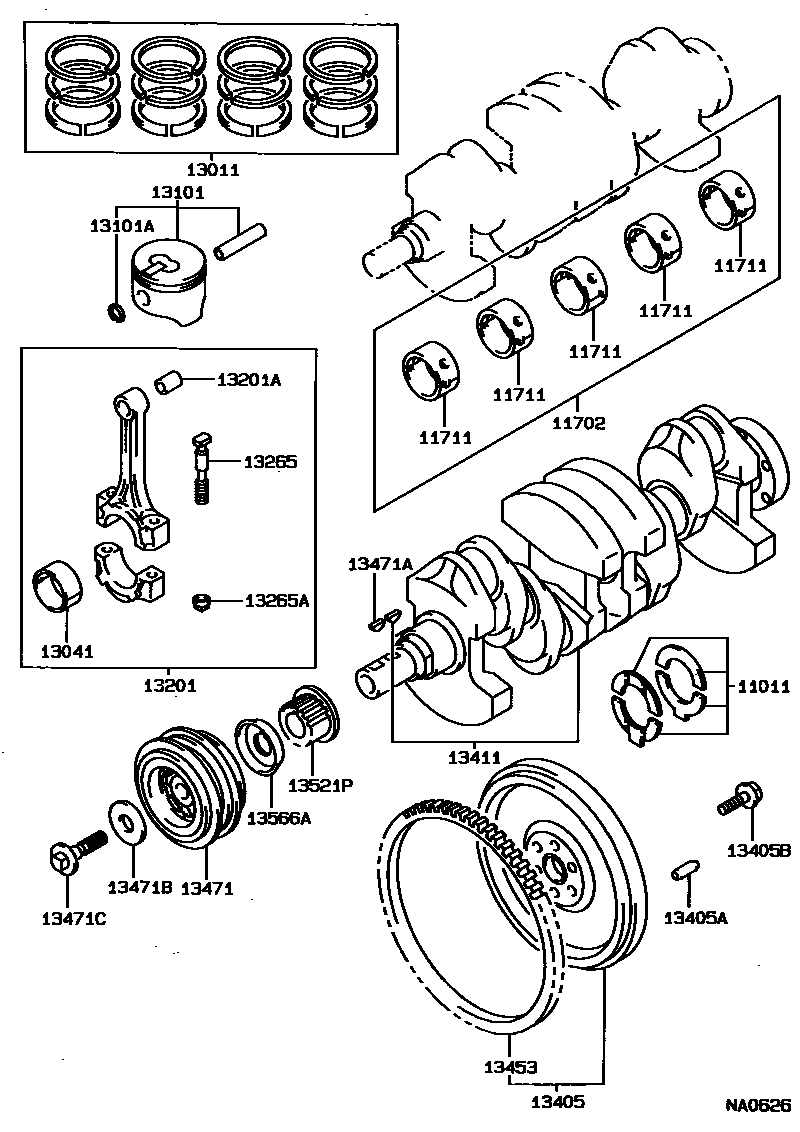

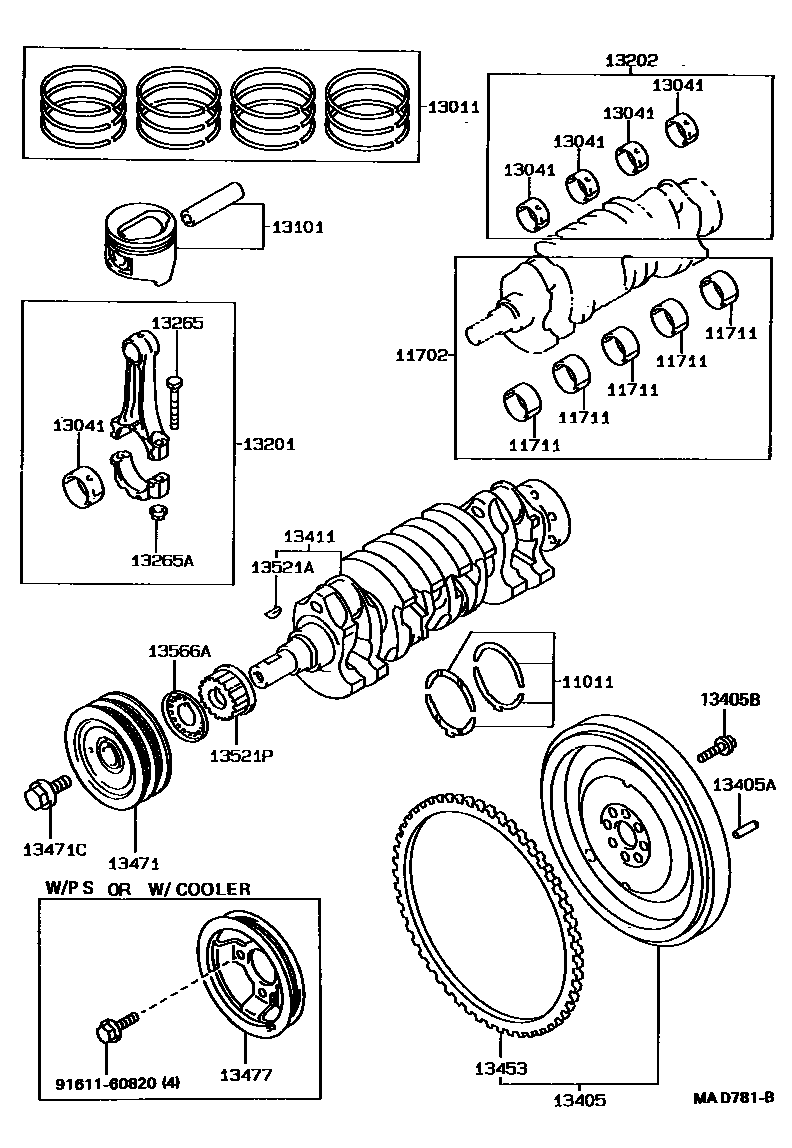

Toyota COROLLA Crankshaft & Piston — Figure 1301
Toyota COROLLA EPC diagram 1301, Crankshaft & Piston, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-10010 · 11011-11010 · 11011-22011 · 11012-10020 · 11012-11010 · 11012-22011 · 11013-22011 |
| 11702 | crankshaft bearing assembly | 11704-10011 · 11704-11011 · 11704-11012 · 11704-55020 · 11705-55020 |
| 13011 | Piston ring assembly | 13011-11121 · 13011-11122 · 13011-11140 · 13011-55011 · 13013-55011 |
| 13101 | Piston sub-assembly with pin | 13103-55031 |
| 13101A | Bore snap ring (for piston pin) | 90521-25003 |
| 13201 | Connecting rod sub-assembly | 13201-19075 · 13201-19087 · 13201-19116 · 13201-59075 |
| 13201A | Bushing (for connecting rod small end) | 90999-73109 |
| 13202 | Connecting rod bearing assembly | 13204-10020 · 13204-11010 · 13204-11040 |
| 13265 | Connecting rod bolts | 13265-10020 · 13265-10021 · 13265-10022 · 13265-55011 |
| 13265A | Hexagonal nut (for connecting rod bolts) | 90179-08014 · 90179-08118 |
| 13405 | Flywheel sub-assembly | 13405-11031 · 13405-11041 · 13405-11051 · 13405-55010 · 13405-55011 |
| 13405A | Direct sales (for flywheel) | 90250-08120 |
| 13405B | Flywheel fixing bolt | 90105-10071 · 90105-10138 |
| 13411 | crankshaft | 13401-11040 · 13401-11050 · 13401-11070 · 13411-55900 |
| 13453 | flywheel ring gear | 13453-10030 · 13453-55010 |
| 13471 | crankshaft pulley | 13407-11030 · 13408-11012 · 13408-55010 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-05005 · 95161-10519 |
| 13471B | Flat Washer (for crankshaft pulley assembly) | 90201-13019 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90105-12051 · 90105-12060 · 90109-12050 |
| 13477 | No. 2 crankshaft pulley | 44319-10011 · 88358-10011 |
| 13521A | Key (for crankshaft timing gear) | 90280-05005 · 95161-20519 |
| 13521P | crankshaft timing pulley | 13521-11020 · 13521-55010 |
| 13566A | timing belt guide | 13566-11020 · 13566-55010 |
