Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 3 images and 13 PNC and OE references.

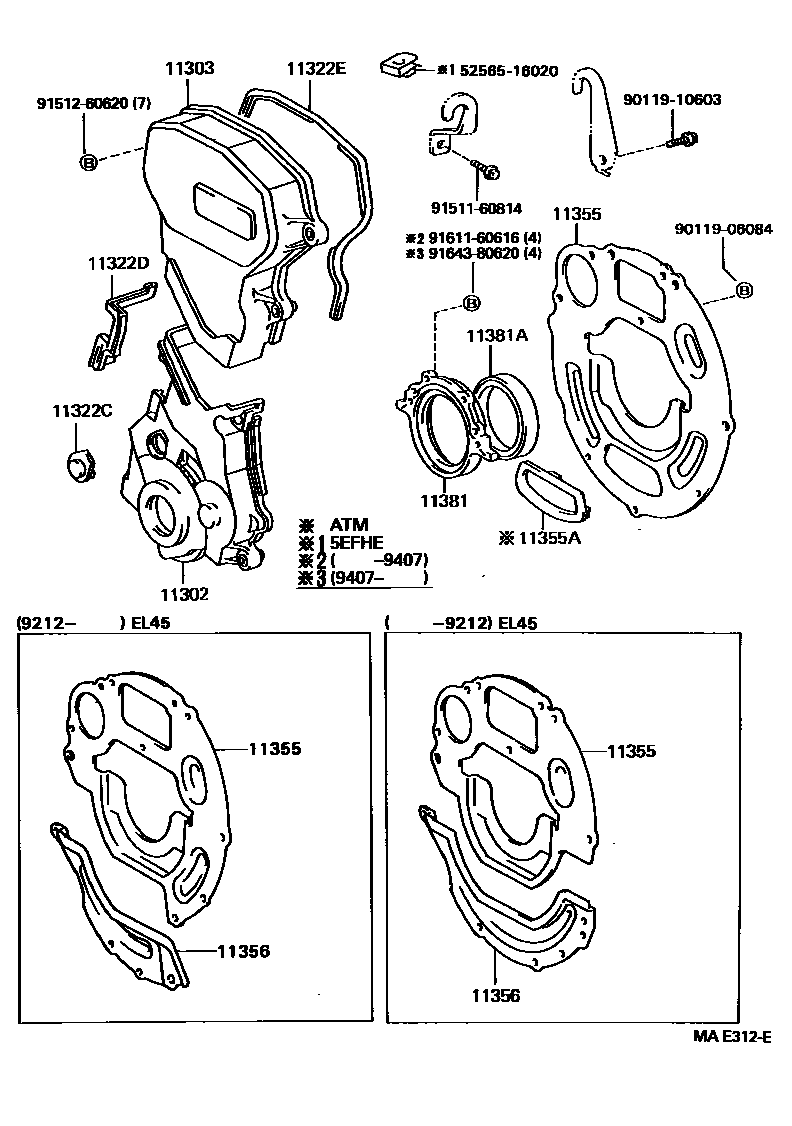

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — MAE312E
Timing Gear Cover & Rear End Plate — MAE312E (199009 – 999999)

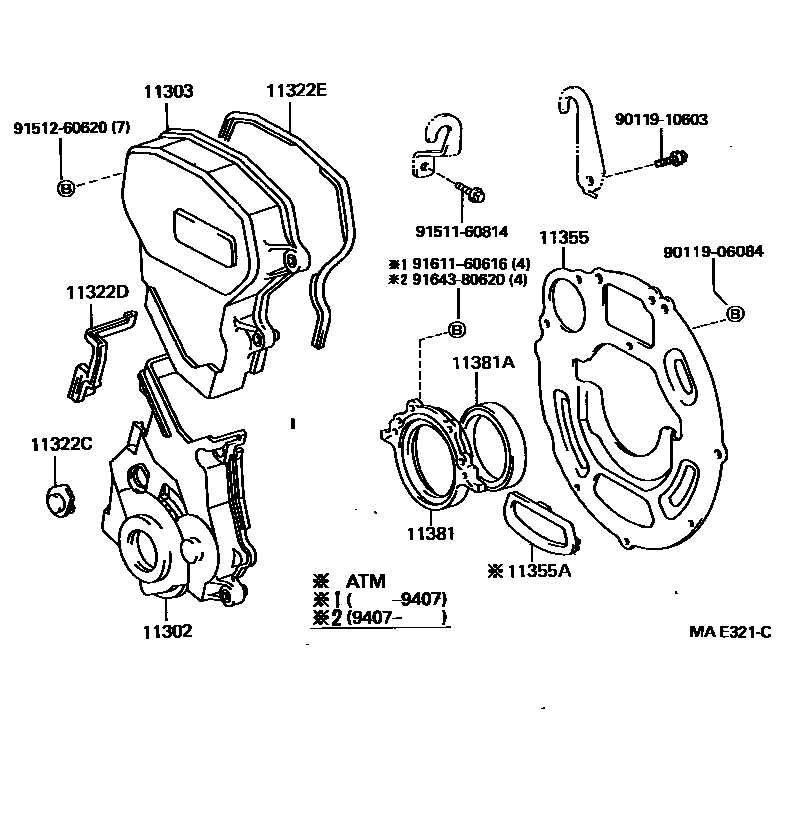

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — MAE321C
Timing Gear Cover & Rear End Plate — MAE321C (199009 – 999999)

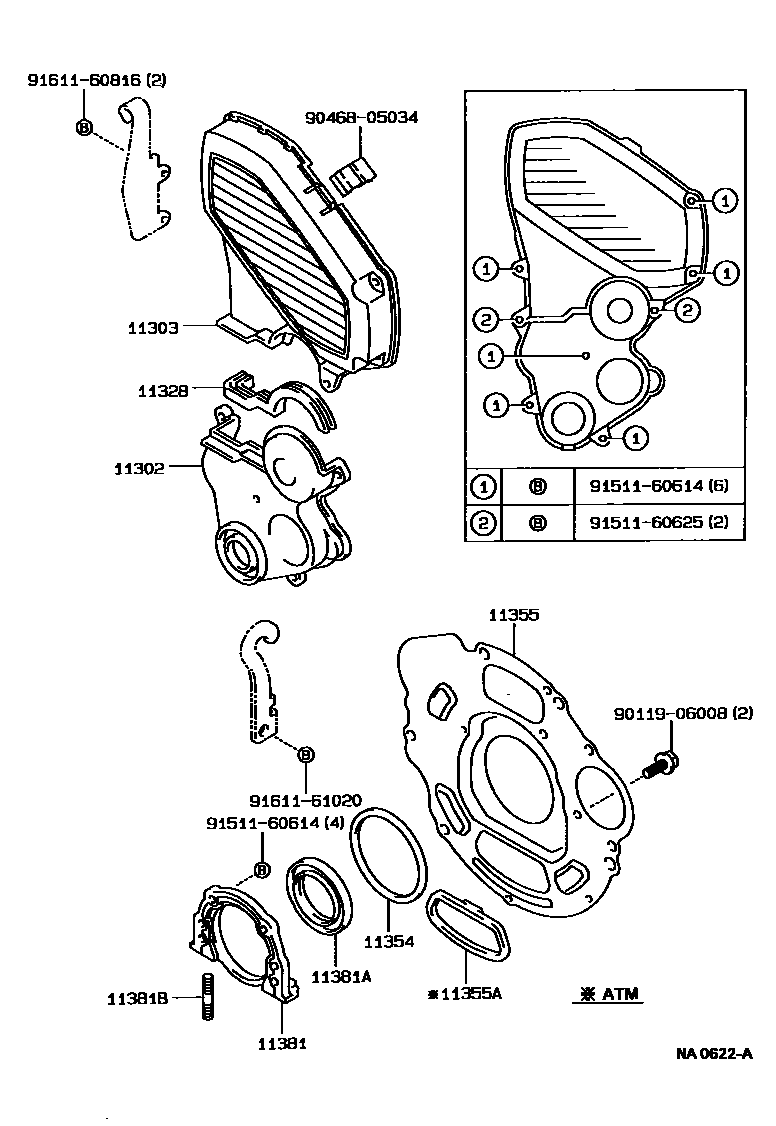

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — NA0622A
Timing Gear Cover & Rear End Plate — NA0622A (199009 – 999999)

PNC and OE references

PNCPart nameOE numbers
11302TIMING CHAIN OR BELT COVER SUB-ASSY11302-11060 · 11302-11062 · 11302-11080 · 11302-11082 · 11302-55011
11303Crankshaft gear or crankshaft pulley cover sub-assembly11303-11030 · 11303-11031 · 11303-11040 · 11303-11041 · 11303-11042 · 11303-55020
11322CNo. 3 timing belt cover11323-10011
11322DNo. 1 timing belt cover gasket11328-11040 · 11328-11041 · 11328-11060 · 11328-11061
11322ENo. 2 timing belt cover gasket11329-11010
11328GASKET, TIMING GEAR OR CHAIN COVER11328-55010
11354Flywheel housing dust seal11354-55010
11355rear end plate11355-10011 · 11355-11011 · 11355-11020 · 11355-11030 · 11355-55012 · 11355-55020
11355AHole plug (for rear end plate)90950-01548
11356No. 2 rear end plate11356-11010 · 11356-11020 · 11356-11030
11381RETAINER, ENGINE REAR OIL SEAL11381-10020 · 11381-10021 · 11381-55010
11381ASEAL, ENGINE REAR OIL90311-75004 · 90311-75009 · 90311-80007 · 90311-80009 · 90311-80012
11381BStud bolts (for engine rear oil seal race)90116-06022
