Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

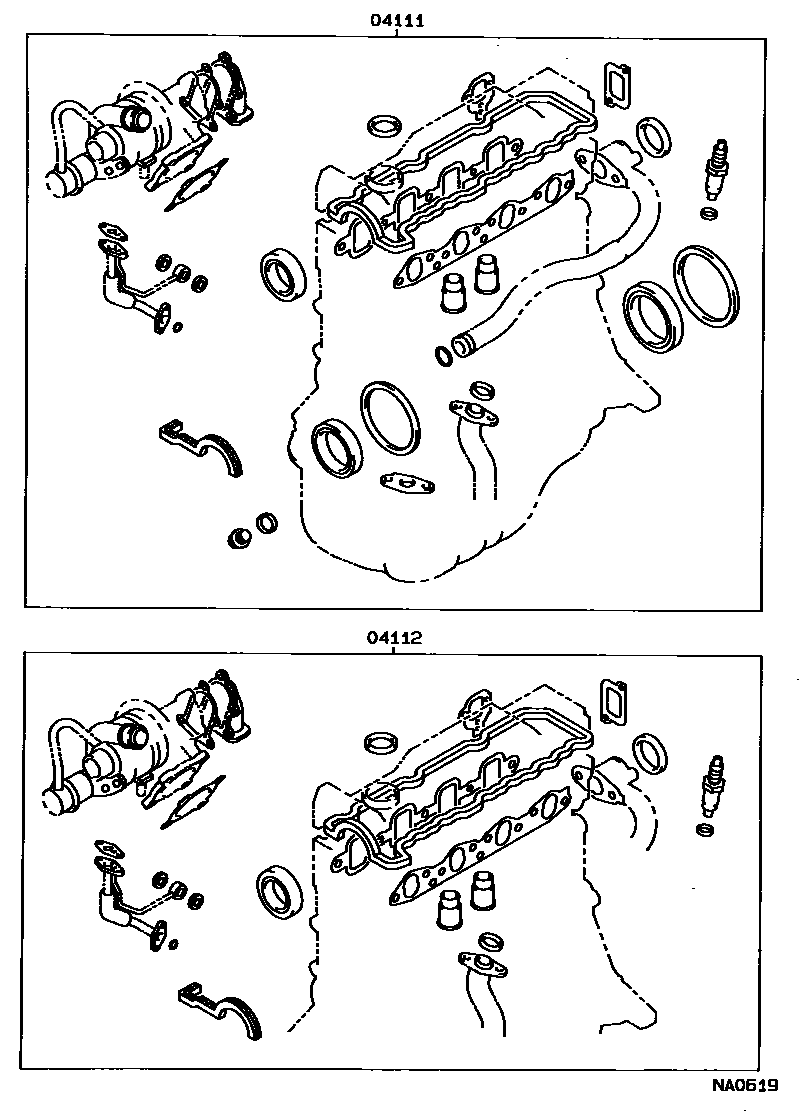

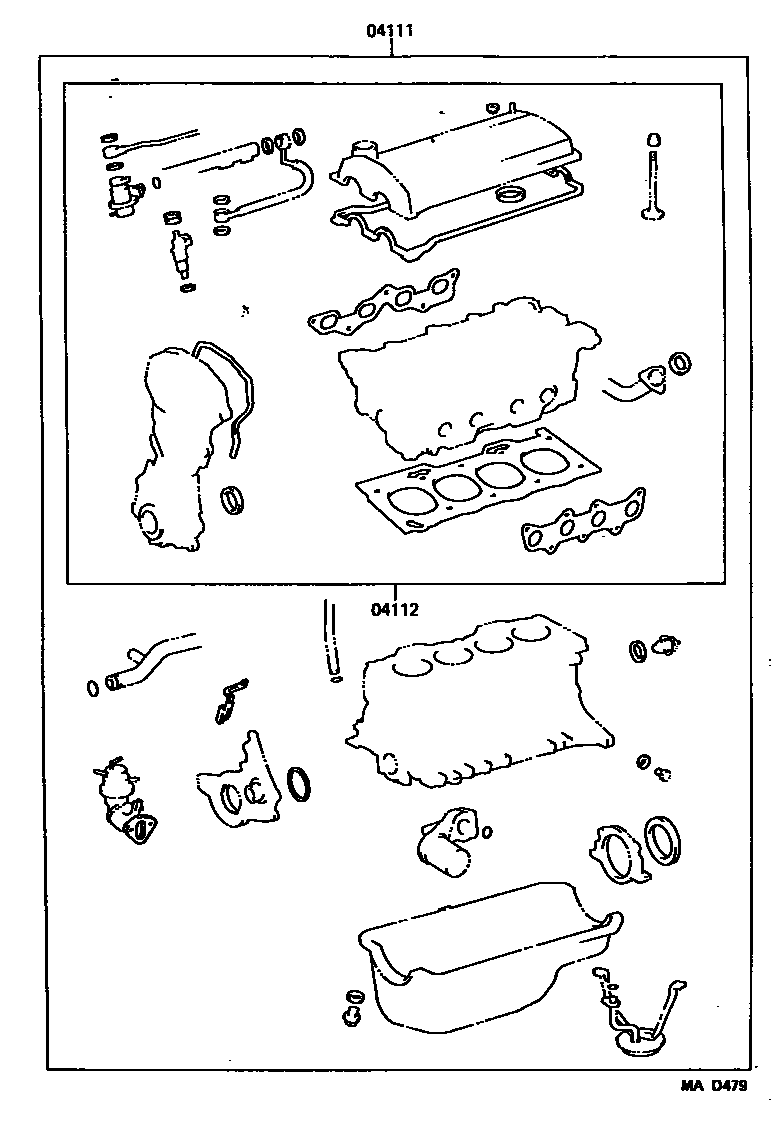

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-11090 · 04111-11091 · 04111-11092 · 04111-11120 · 04111-11121 · 04111-11122 · 04111-11123 · 04111-11130 · 04111-11131 · 04111-11132 · 04111-55040 |
| 04112 | Engine valve grinding pad assembly | 04112-11080 · 04112-11081 · 04112-11100 · 04112-11101 · 04112-11110 · 04112-55040 |
