Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

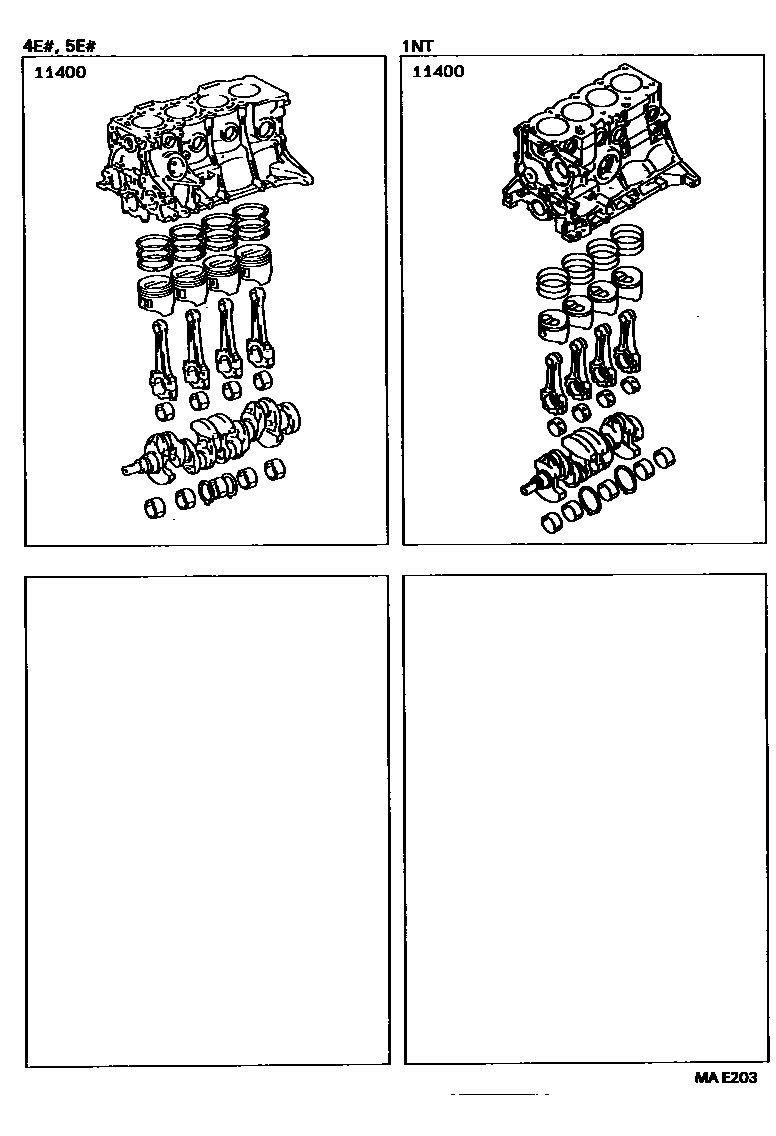

Toyota COROLLA Short Block Assembly EPC diagram — MAE203
Short Block Assembly — MAE203 (199009 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-11090 · 11400-11091 · 11400-11092 · 11400-11110 · 11400-11111 · 11400-11112 · 11400-11120 · 11400-11121 · 11400-11122 · 11400-55012
