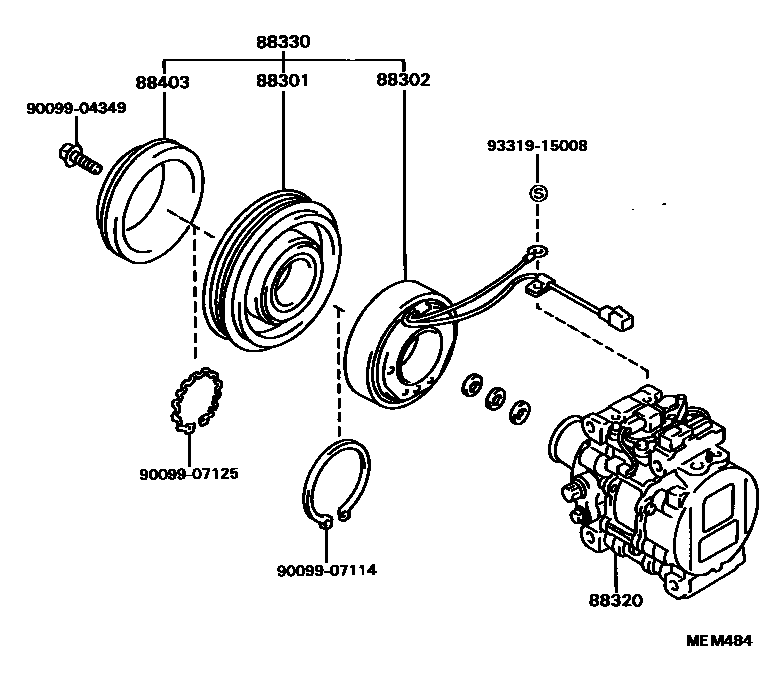

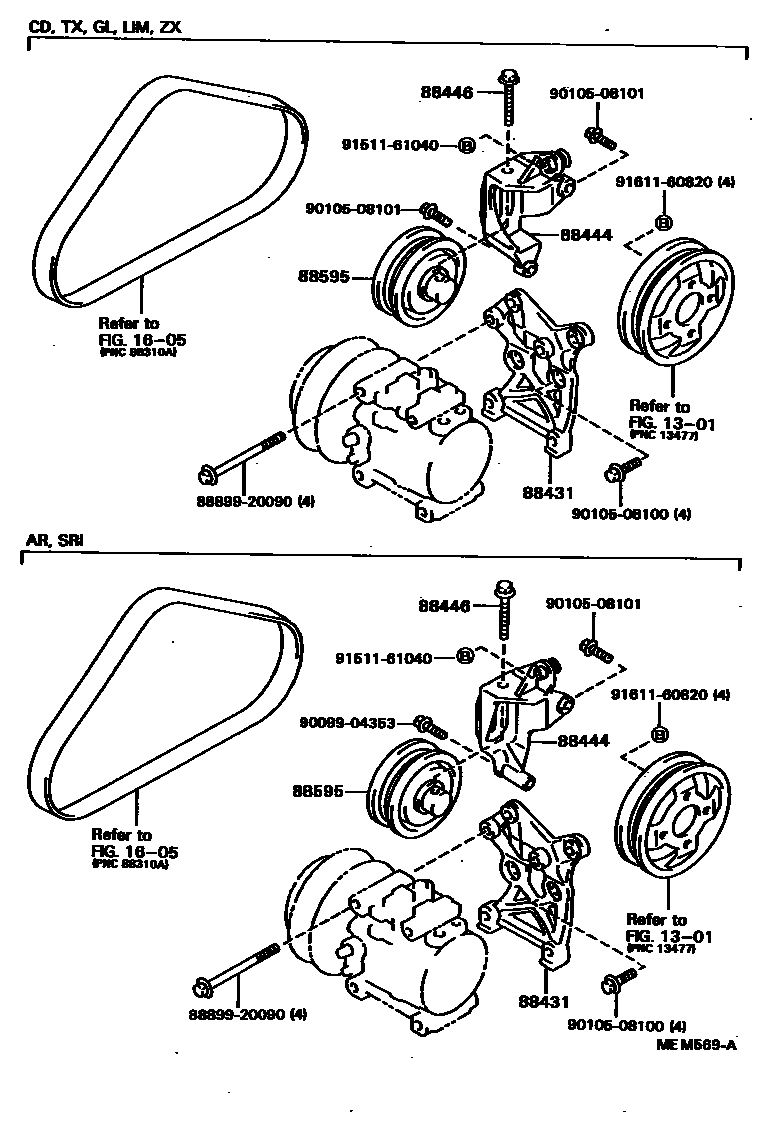

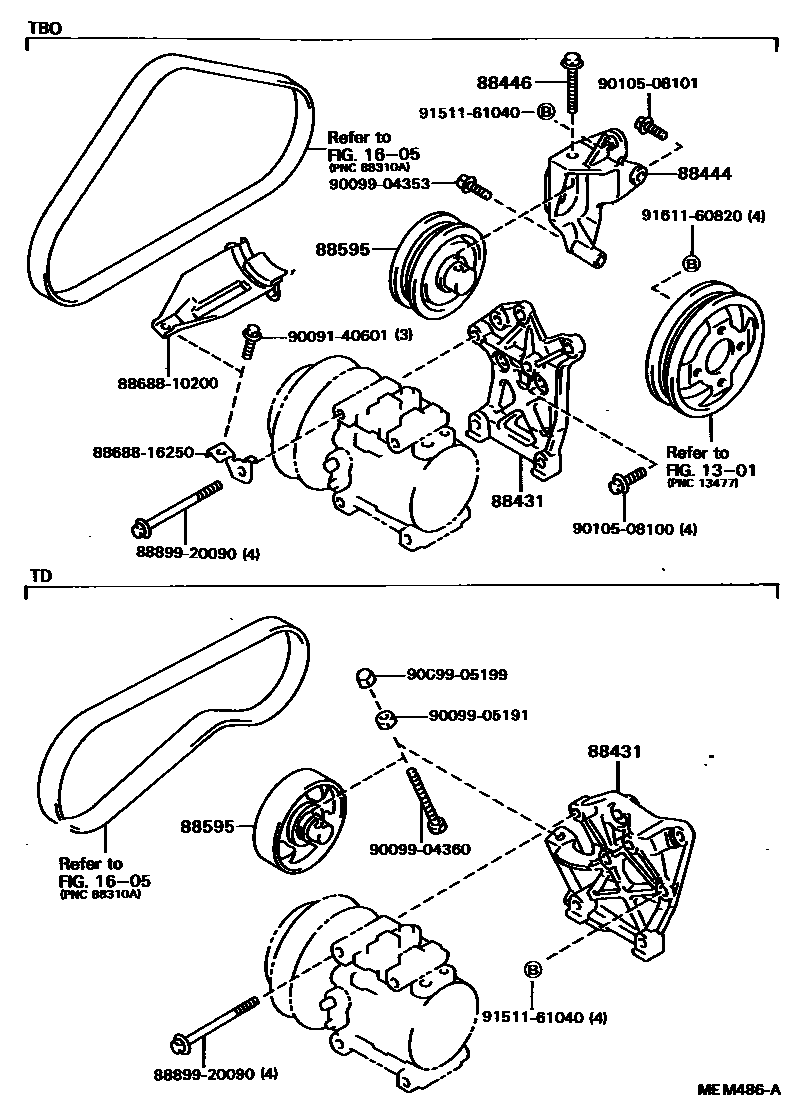

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-16050 · 88412-20090 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-16021 · 88411-16030 · 88411-60030 |
| 88320 | Cooler Compressor Assembly | 88320-16071 · 88320-16081 · 88320-16090 · 88320-16100 |
| 88330 | Magnetic Clutch Assembly | 88410-10180 · 88410-16040 · 88410-16050 · 88410-16070 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-16011 |
| 88431 | Compressor No. 1 mounting bracket | 88431-16040 · 88431-16060 · 88431-16070 |
| 88444 | Idler gear bracket | 88444-10031 · 88444-16030 |
| 88446 | Idler gear bolt | 88446-12030 |
| 88595 | Cooler compressor idler pulley | 88440-12170 · 88440-16040 |
