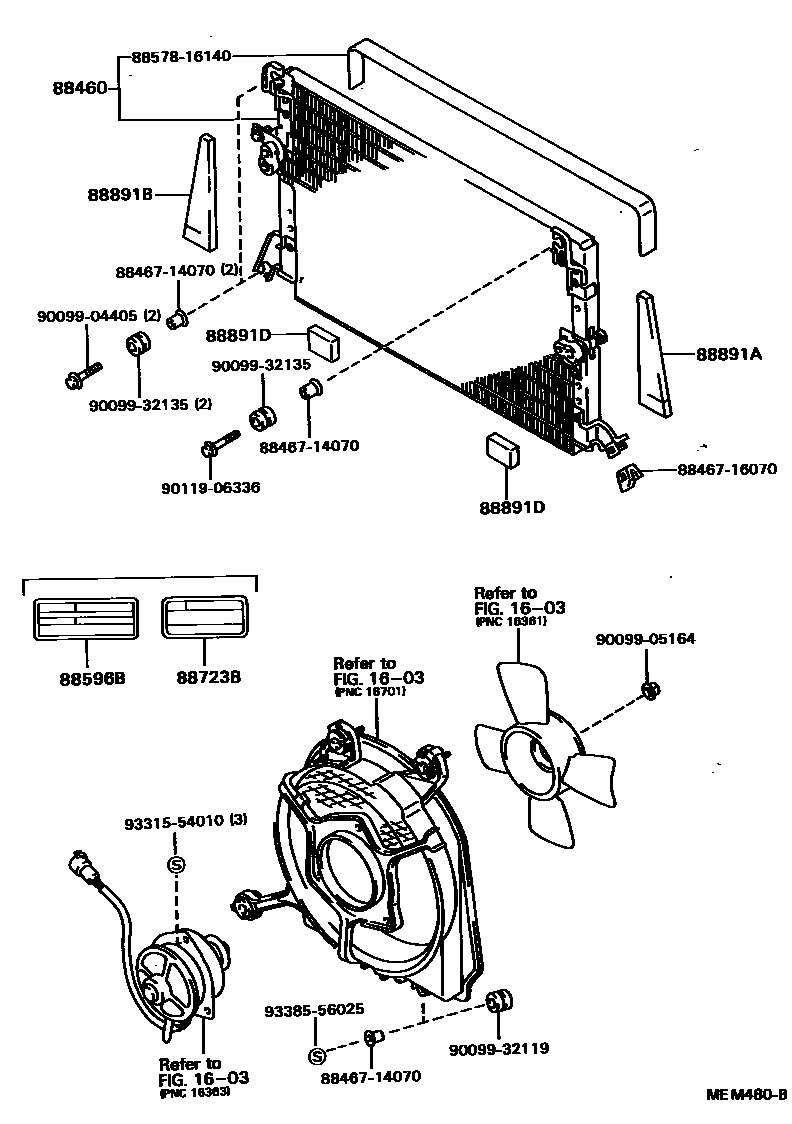

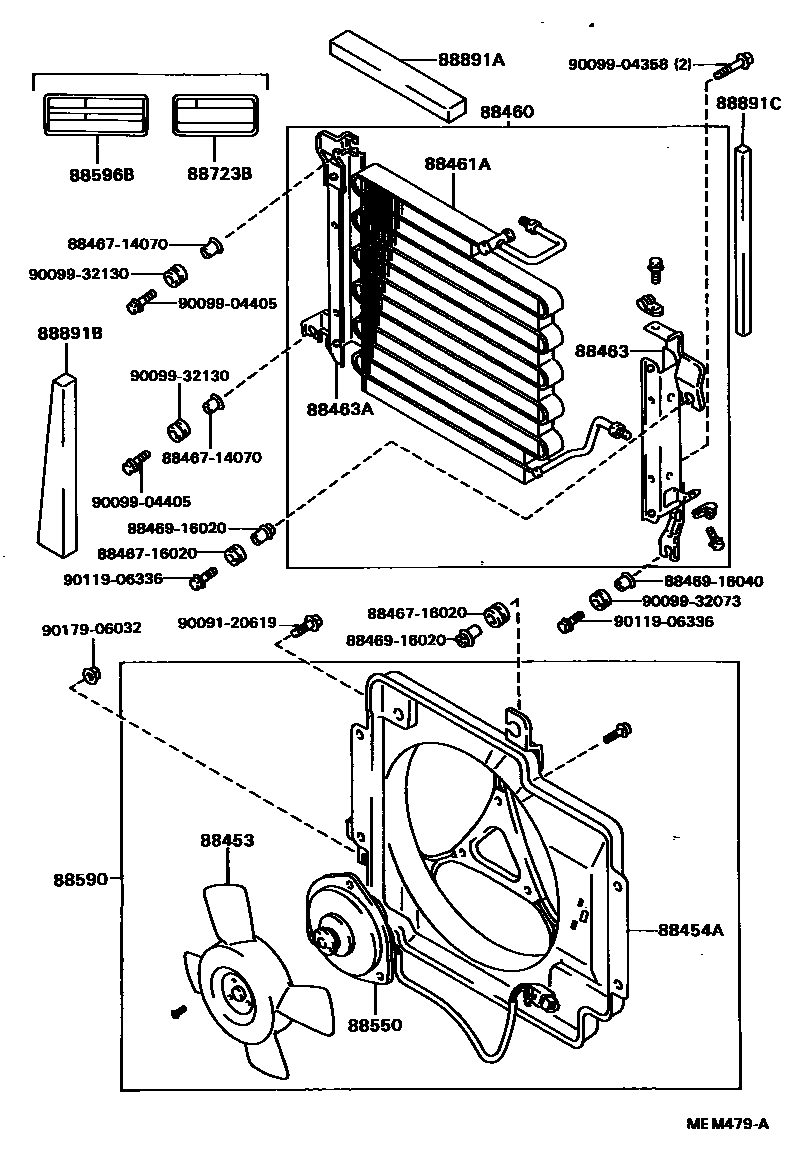

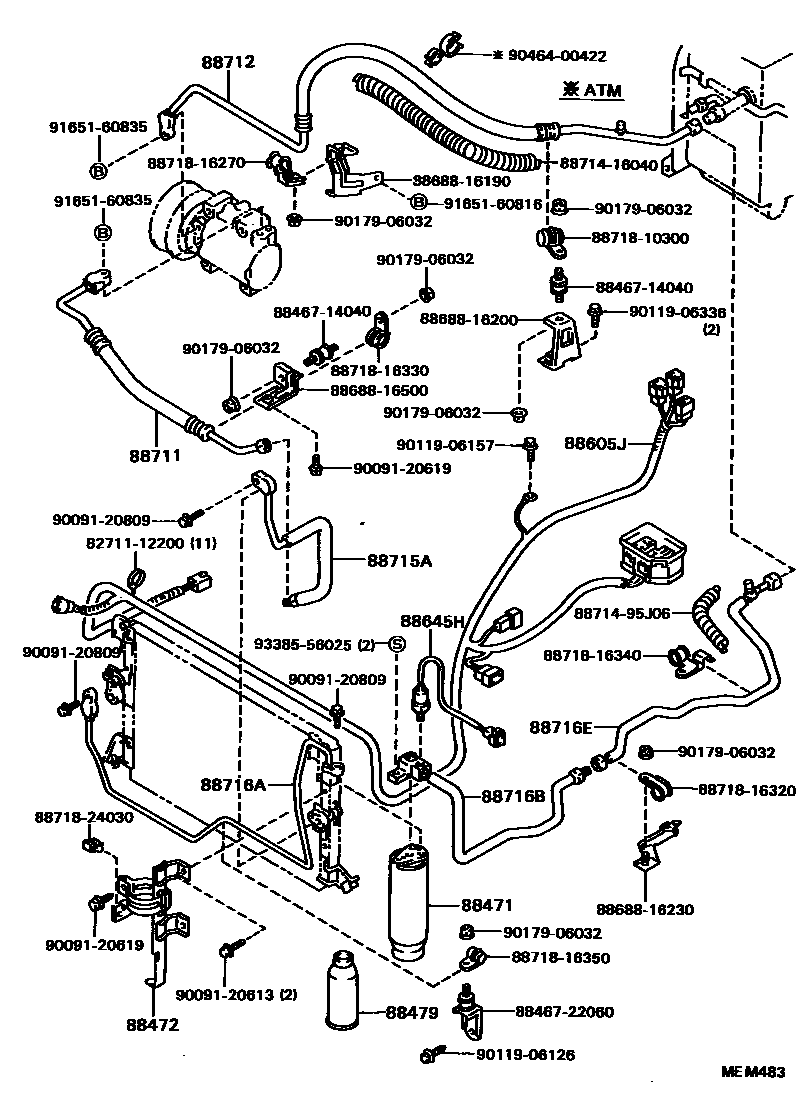

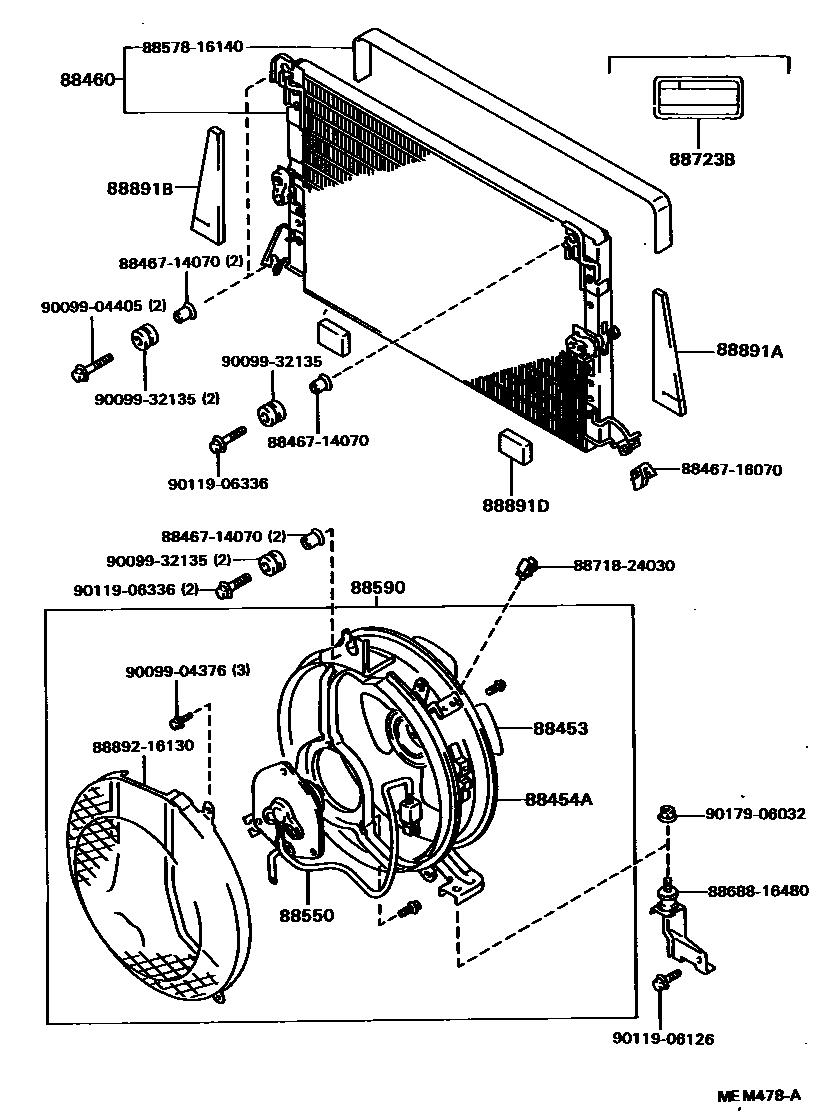

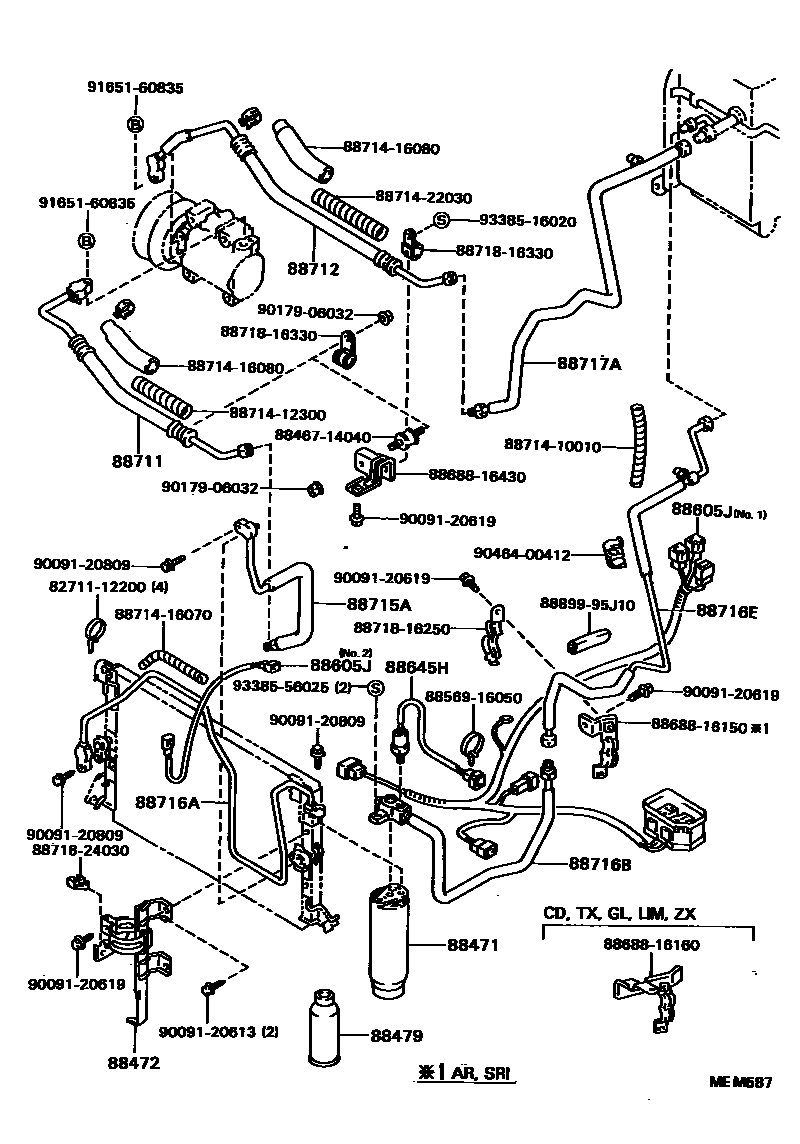

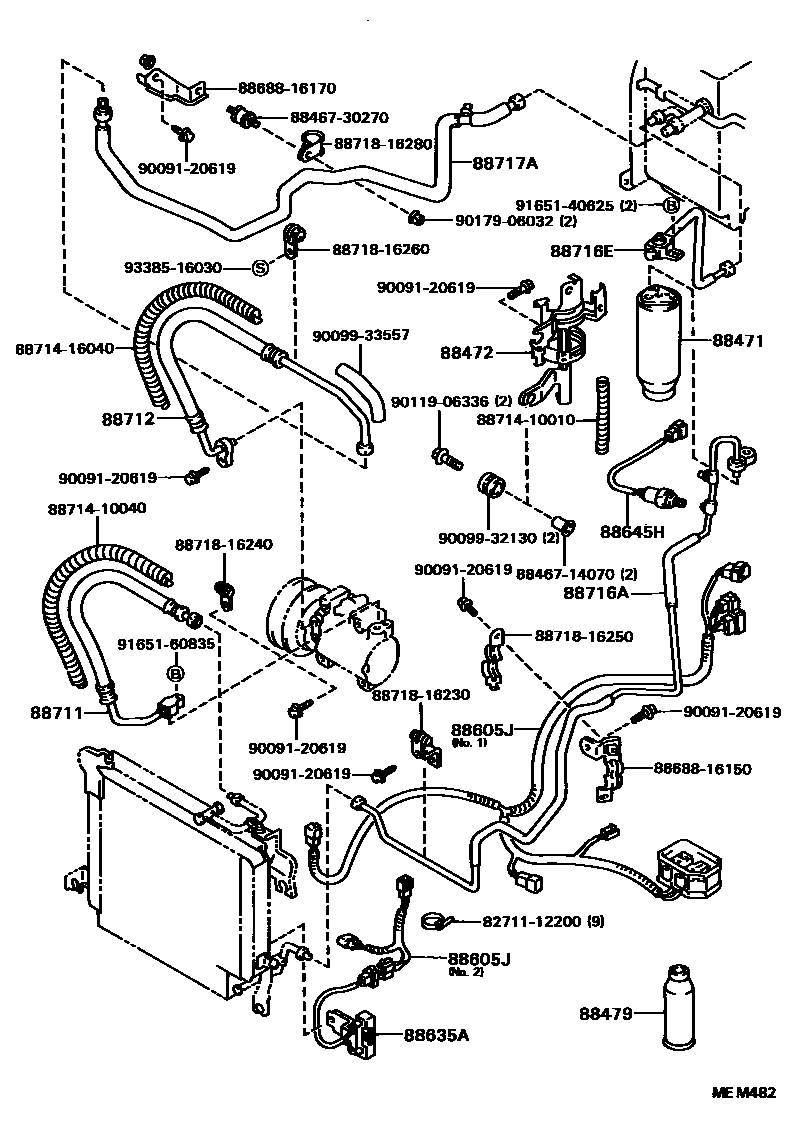

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 6 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88453 | Cooling fan (for condenser) | 88453-10010 · 88453-12050 |
| 88454A | fan cover | 88454-16060 · 88454-16100 |
| 88460 | Air conditioning condenser assembly | 88460-16170 · 88460-16210 · 88460-16220 |
| 88461A | Air conditioning condenser core | 88461-16080 |
| 88463 | No. 1 air conditioner condenser bracket | 88463-16170 |
| 88463A | No. 2 air conditioner condenser bracket | 88463-16180 |
| 88471 | Air conditioning fluid storage tank | 88471-16030 · 88471-16040 |
| 88472 | No. 1 liquid storage tank bracket | 88472-16080 · 88472-16100 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02001 · 90986-02002 · 90986-02004 |
| 88550 | Blower motor assembly (for condenser) | 88550-12120 · 88550-16090 |
| 88590 | Blower assembly with hood | 88454-16070 · 88590-16030 |
| 88596B | No. 1 warning nameplate | 88596-24010 |
| 88605J | Air conditioning wiring harness sub-assembly | 88605-16620 · 88605-16630 · 88605-16640 · 88605-16690 · 88605-1G010 · 88605-1G020 · 88605-1G030 · 88605-1G040 · 88605-1G050 · 88605-1G060 · 88605-1G070 · 88605-1G080 · 88605-1G090 · 88605-1G100 · 88605-1G110 · 88605-1G120 · 88605-1G130 · 88605-1G140 · 88605-1G150 · 88605-1G160 · 88605-1G170 · 88605-1G180 |
| 88635A | Blower resistor (for air conditioner condenser motor) | 88635-16040 |
| 88645H | No. 1 pressure switch | 88645-16010 · 88645-16030 · 88645-16040 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-16060 · 88711-16110 · 88711-16120 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-16100 · 88712-16130 · 88712-16140 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-16020 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-16400 · 88716-16460 · 88716-16480 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-16420 · 88716-16440 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-16430 · 88716-16450 · 88716-16470 |
| 88717A | Cooler refrigerant suction pipe A | 88717-16080 · 88717-16090 |
| 88723B | Cooler maintenance warning label | 88723-12040 · 88723-20010 |
| 88891A | Seal A (for cooler) | 88578-16080 · 88578-16150 |
| 88891B | Seal B (for cooler) | 88578-16070 · 88578-16150 |
| 88891C | Seal C (for cooler) | 88578-16120 |
| 88891D | Seal D (for cooler) | 88578-16160 |
