Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717

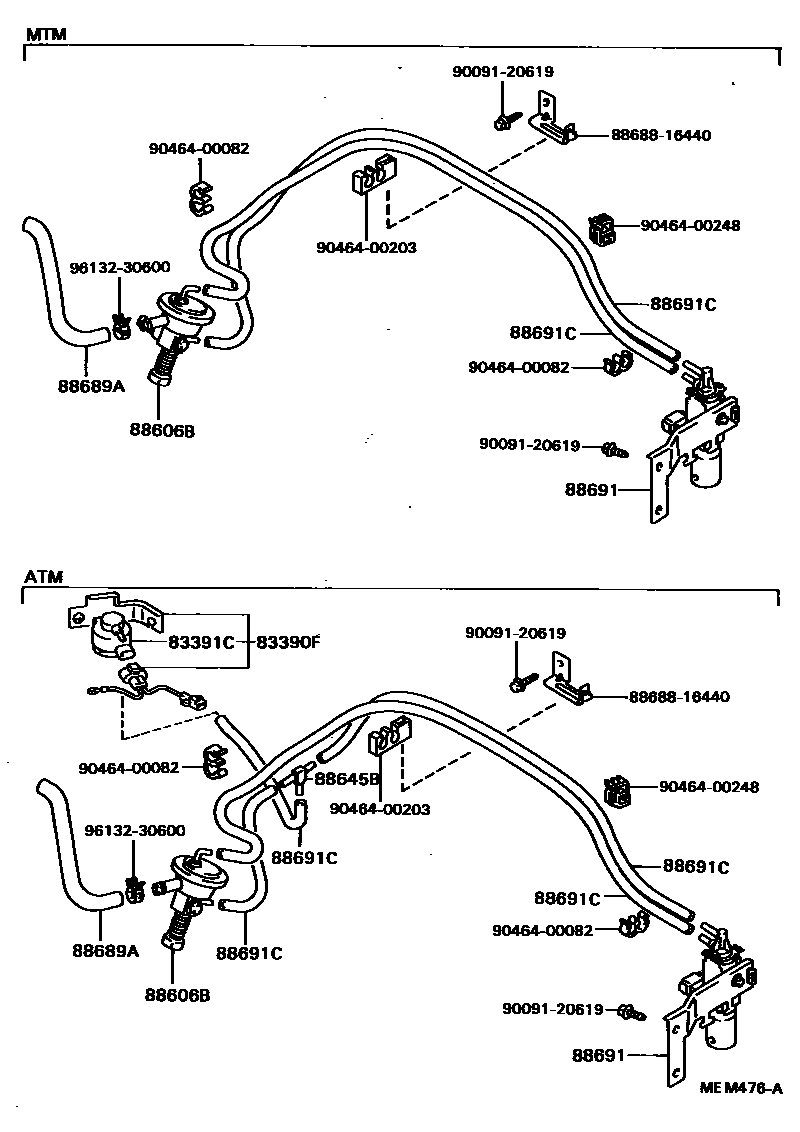

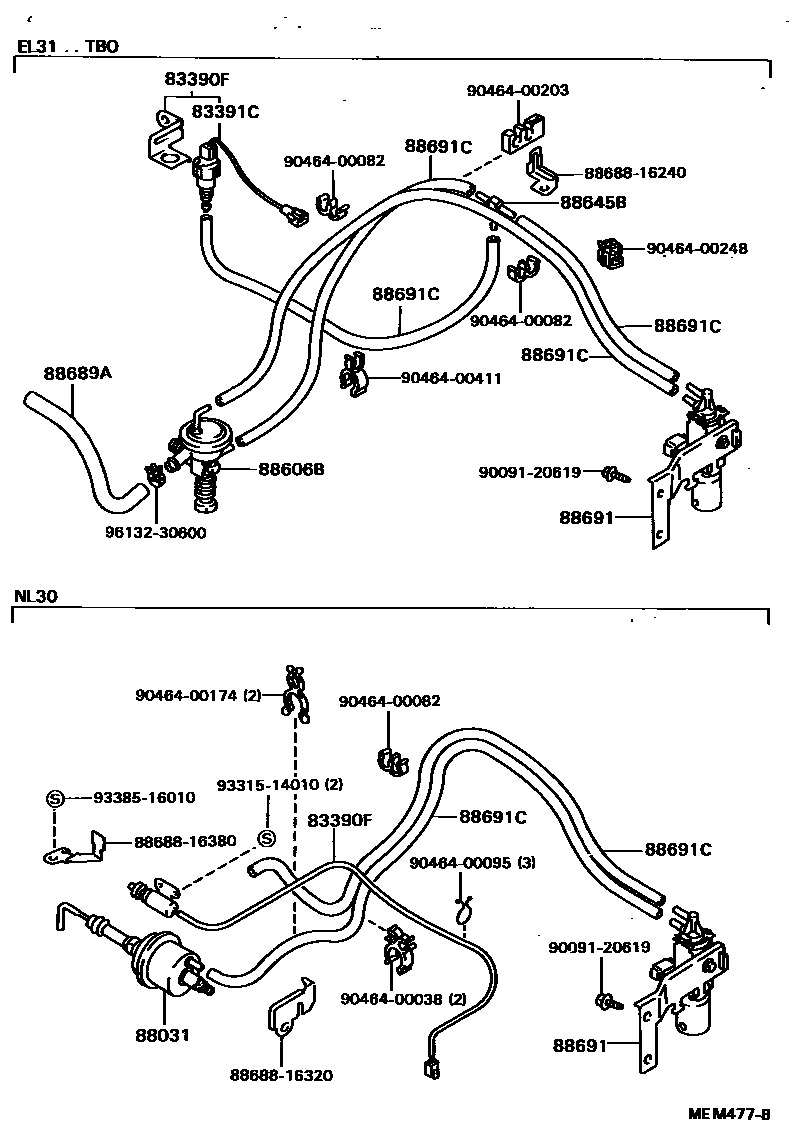

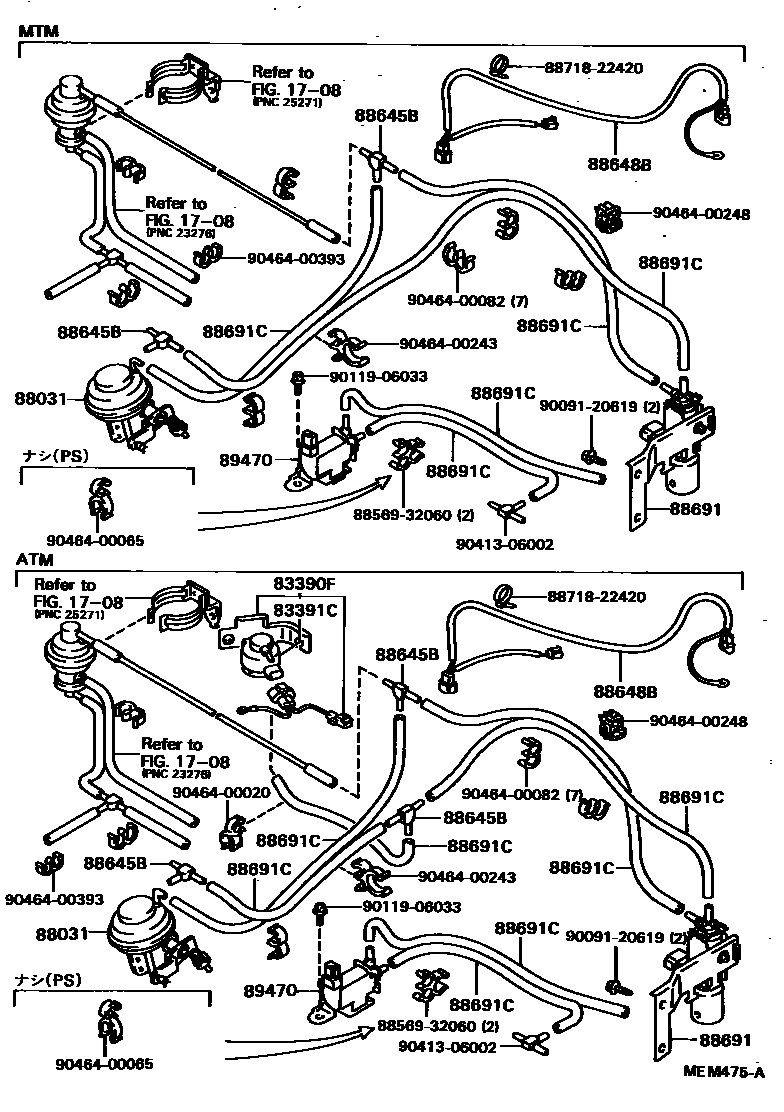

Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83390F | Cooler vacuum switch assembly | 83390-16110 · 88610-16040 · 88610-16060 |
| 83391C | Cooler vacuum switch | 83391-16150 · 88680-16010 |
| 88031 | Idle speed lift actuator assembly | 88031-16060 · 88031-16080 |
| 88606B | Cooler diaphragm sub-assembly | 88606-24020 |
| 88645B | Connector No. 1 (for idle speed lifting device) | 90413-04001 |
| 88648B | No. 1 cooler wiring harness | 88648-16160 |
| 88689A | Cooler Vacuum Hose No. 1 | 88689-10030 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88691-10010 · 88691-16050 |
| 88691C | Vacuum hose No. 1 (for idle lift) | 90999-92002 · 90999-92003 · 90999-92004 · 95411-10020 · 95411-10033 |
| 89470 | Vacuum switch valve assembly with bracket | 89470-16010 |
