Toyota COROLLA 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712

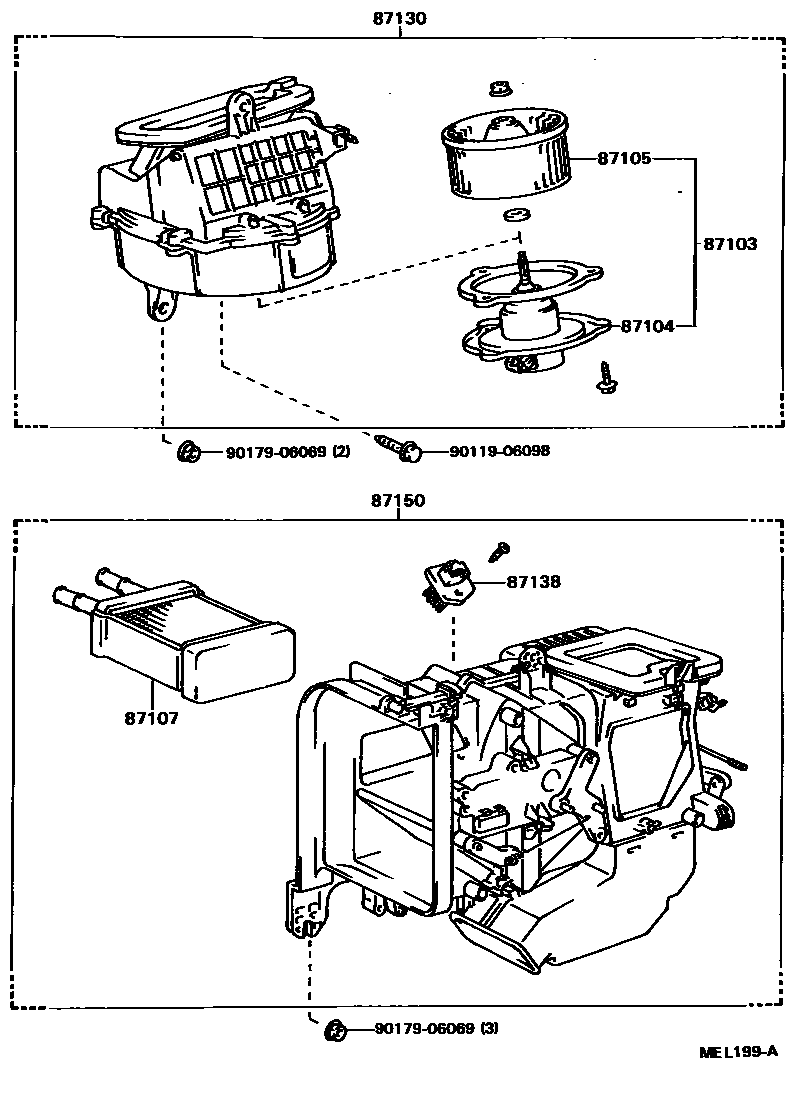

Toyota COROLLA EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87103 | Heater blower motor sub-assembly with fan | 87103-16010 |
| 87104 | Heater blower motor sub-assembly | 87104-89110 |
| 87105 | Heater blower fan sub-assembly | 87105-14030 · 87105-32010 |
| 87107 | Heater radiator device sub-assembly | 87107-16120 · 87107-16130 · 87107-16140 |
| 87130 | Front heater blower assembly | 87130-16100 · 87130-16130 |
| 87138 | Heater Blower Resistor | 87138-16120 · 88635-16030 |
| 87150 | Heater radiator assembly | 87150-16180 · 87150-16181 · 87150-16190 · 87150-16191 · 87150-16200 · 87150-16202 |
| 87660 | Air conditioning servo mechanism assembly | 88660-16020 |
| 88585A | Heater choke shaft | 88585-16020 |
| 88655B | Water temperature switch | 88655-22020 |
