Toyota COROLLA 后视镜 — Figure 8701

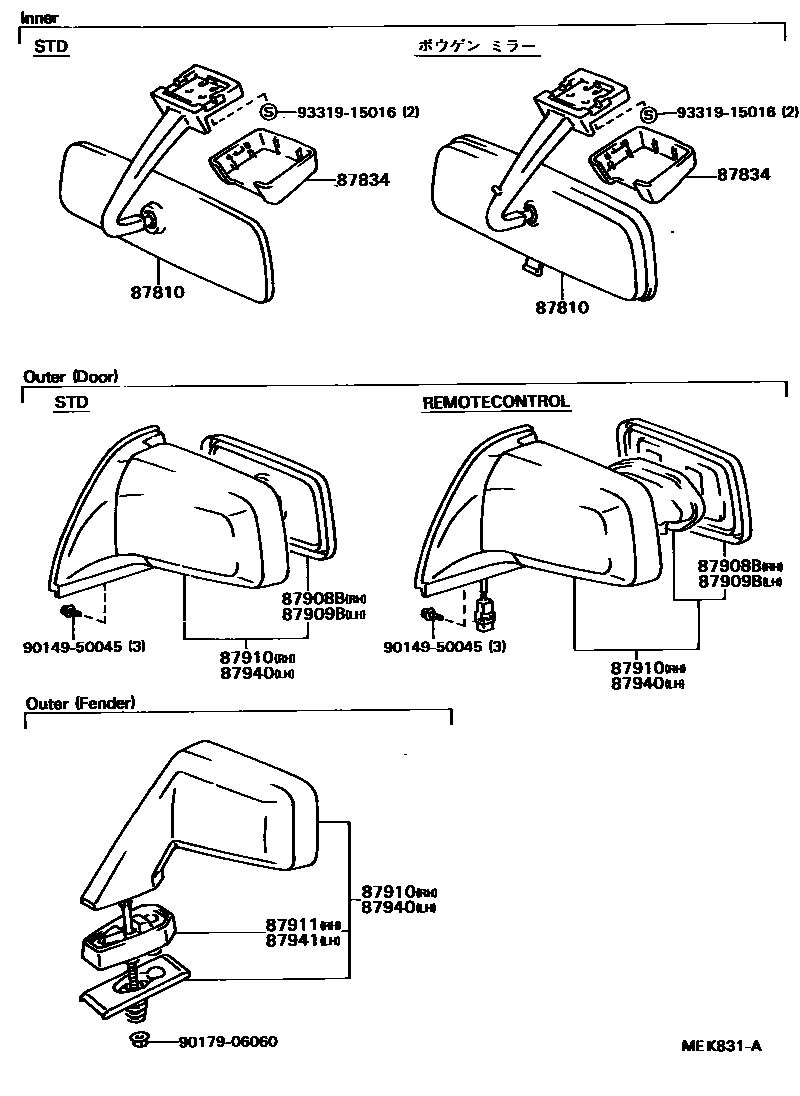

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87908B | Right rearview mirror sub-assembly | 87908-20040 · 87931-20400 |
| 87909B | Left rearview mirror sub-assembly | 87909-20040 · 87961-20420 |
| 87910 | Right exterior rearview mirror assembly | 87910-16270 · 87910-16300 · 87910-16320 |
| 87911 | Right exterior mirror pad | 87911-16090 |
| 87940 | Left exterior rearview mirror assembly | 87940-16300 · 87940-16340 · 87940-16360 |
| 87941 | Left exterior mirror pad | 87941-16090 |
