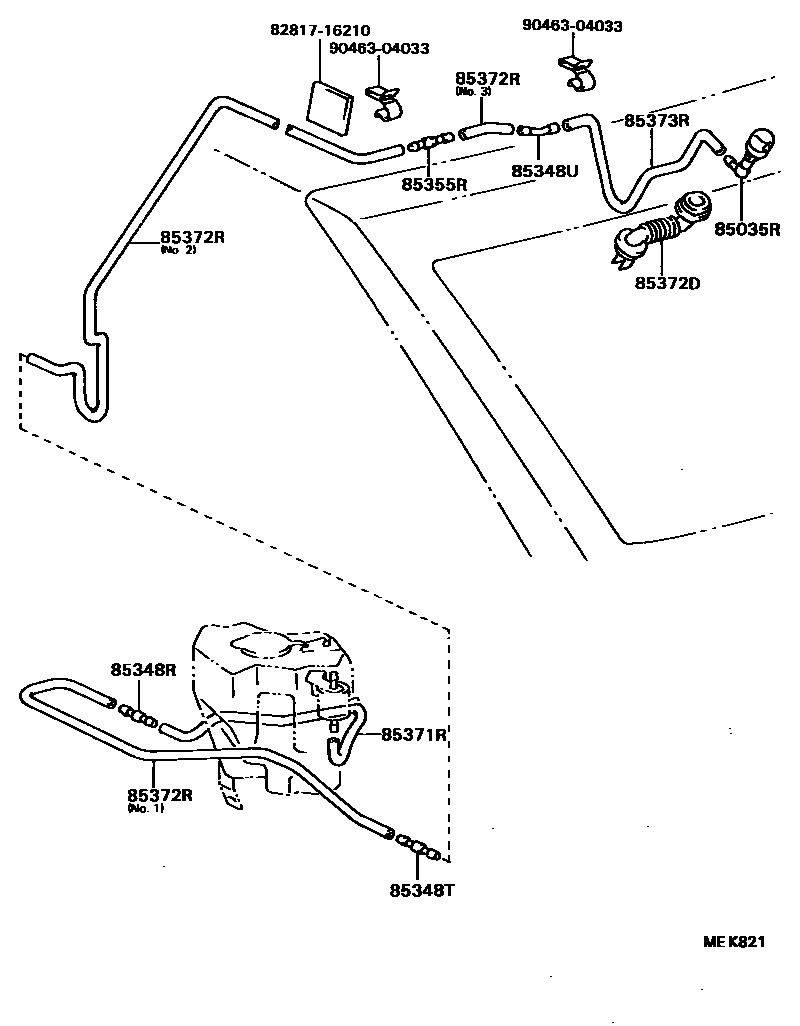

Toyota COROLLA 后清洗器 — Figure 8504
Toyota COROLLA EPC diagram 8504, 后清洗器, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035R | Rear washer nozzle sub-assembly | 85035-16130 · 85035-16140 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348T | No. 2 rear washer hose connector | 85349-89122 |
| 85348U | No. 3 rear washer hose connector | 85355-20080 |
| 85355R | Rear washer hose valve | 85031-12250 |
| 85371R | Rear washer hose (from motor to connector) | 90099-33299 |
| 85372D | Rear washer hose seal | 85372-14020 |
| 85372R | Rear washer hose (from fitting to fitting or nozzle) | 90099-33174 · 90099-33176 · 90099-33299 · 90446-07001 |
| 85373R | Rear washer hose (from connector to nozzle) | 90099-33080 |
