Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

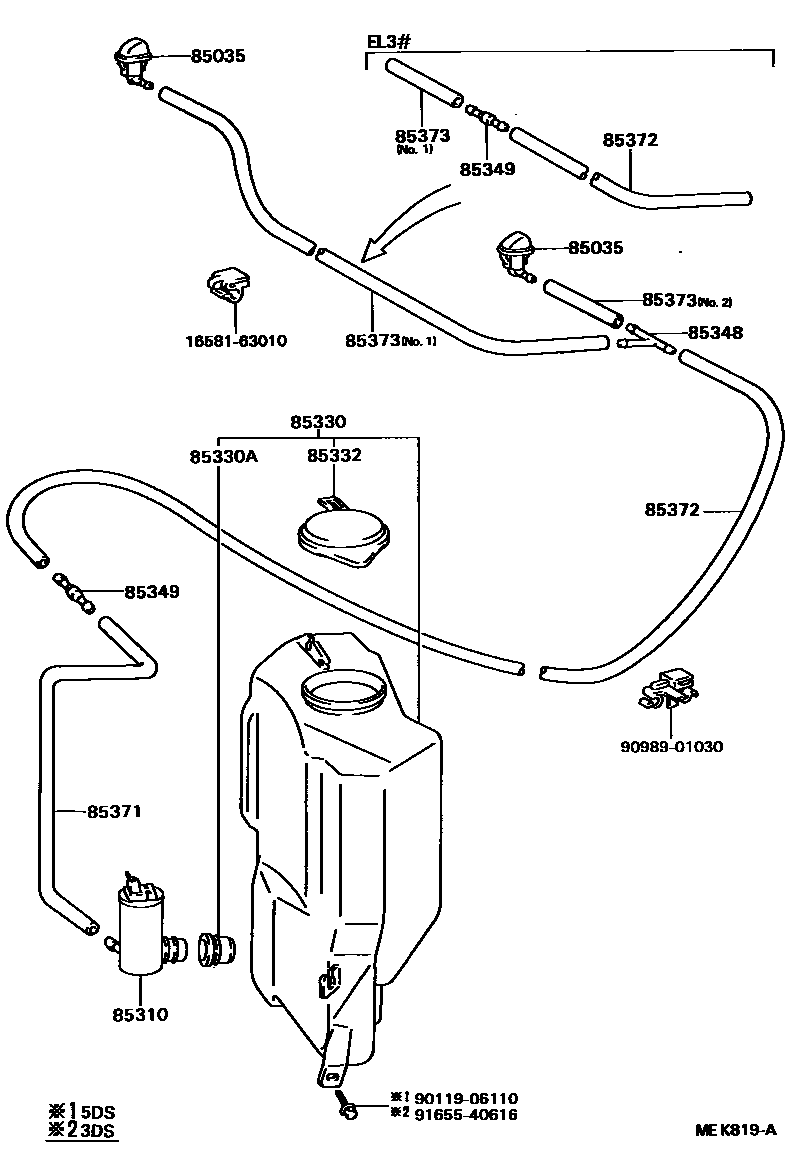

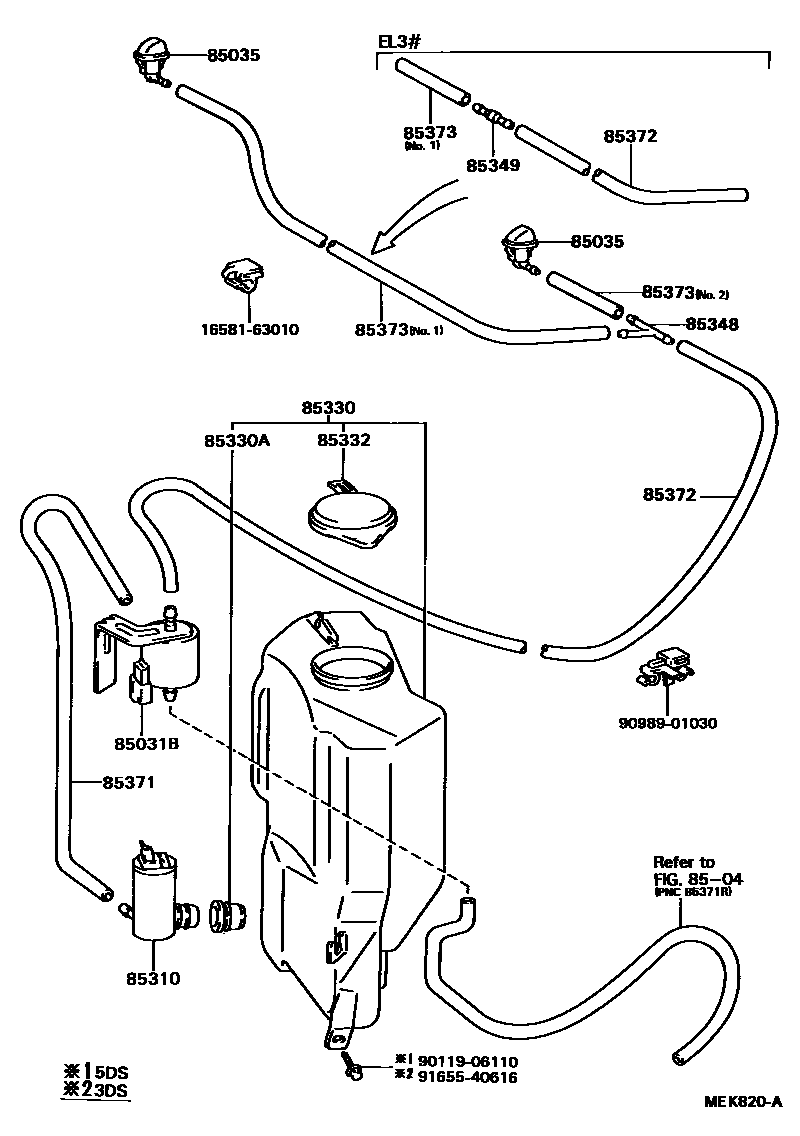

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031B | Cleaner valve sub-assembly | 85031-16010 · 85031-16011 |
| 85035 | Cleaner nozzle sub-assembly | 85035-16070 |
| 85310 | Windshield washer motor and pump assembly | 85310-22080 |
| 85330 | Windshield washer fluid tank assembly | 85331-16230 · 85331-16240 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85332-12320 |
| 85348 | Windshield washer hose connector No. 1 | 85348-12250 |
| 85349 | Windshield washer hose connector No. 1 | 85349-89122 |
| 85371 | Windshield washer hose (from motor to connector) | 90446-06013 · 90446-07001 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 85343-16140 · 90099-33080 · 90446-06013 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90099-33080 |
