Toyota COROLLA indicator light — Figure 8302

Toyota COROLLA EPC diagram 8302, indicator light, with 1 images and 3 PNC and OE references.

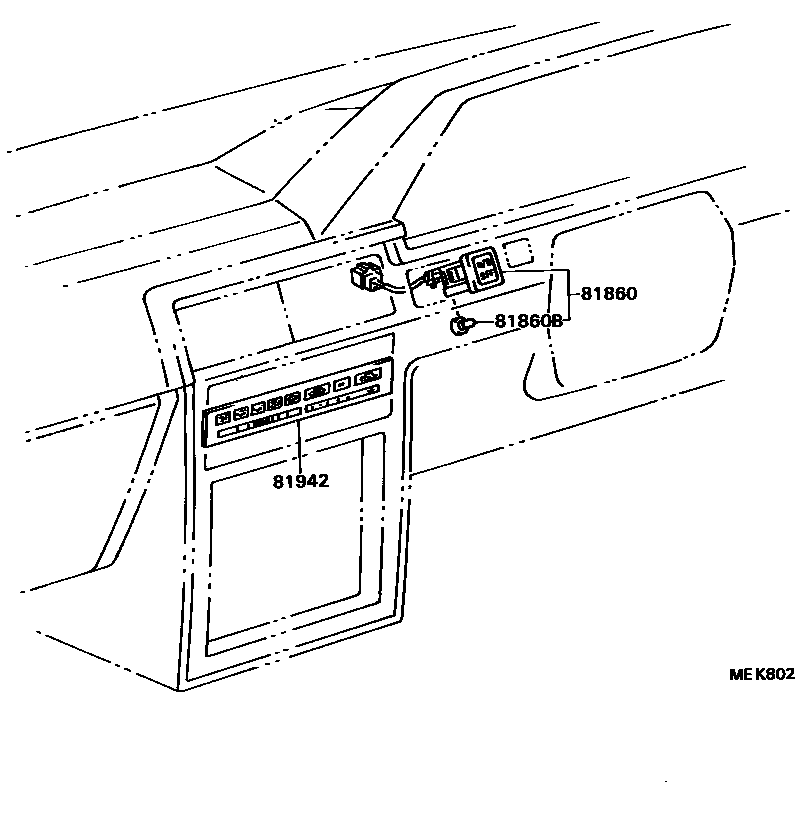

Toyota COROLLA indicator light EPC diagram — MEK802
indicator light — MEK802 (198805 – 999999)

PNC and OE references

PNCPart nameOE numbers
81860Transmission indicator light assembly81860-16010
81860BTransmission indicator light bulb84999-10170
81942Heater control nameplate81942-16090 · 81942-16100
