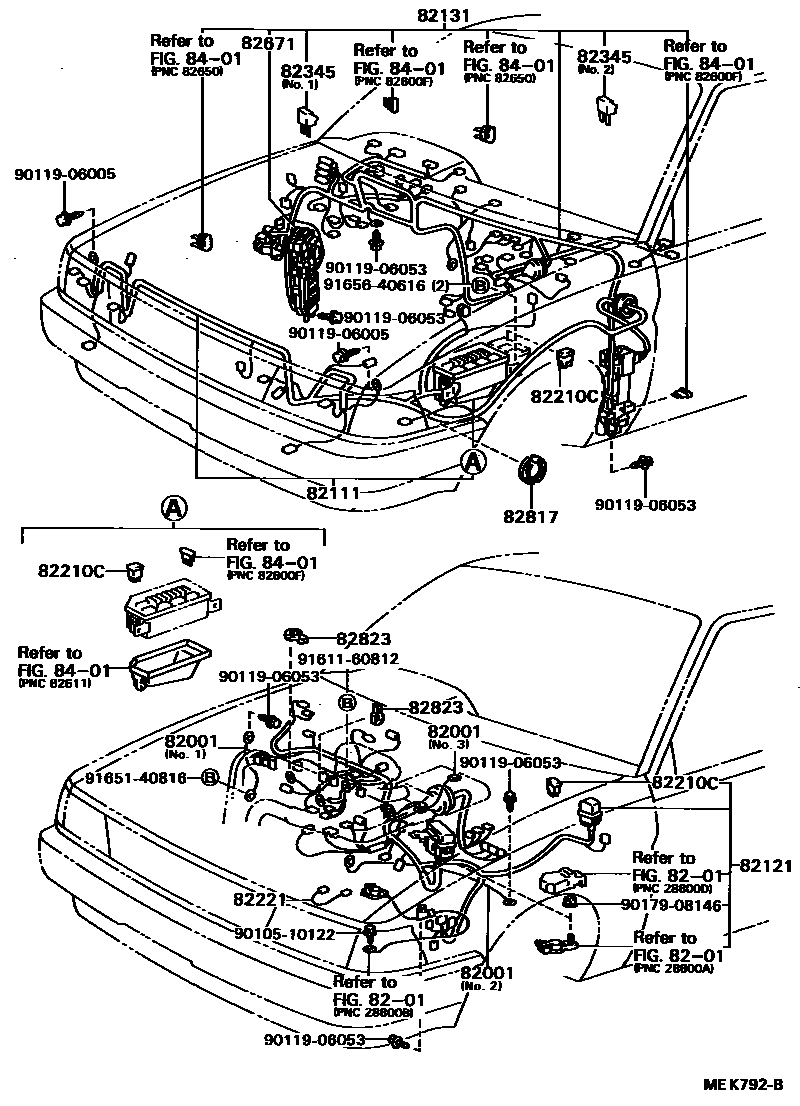

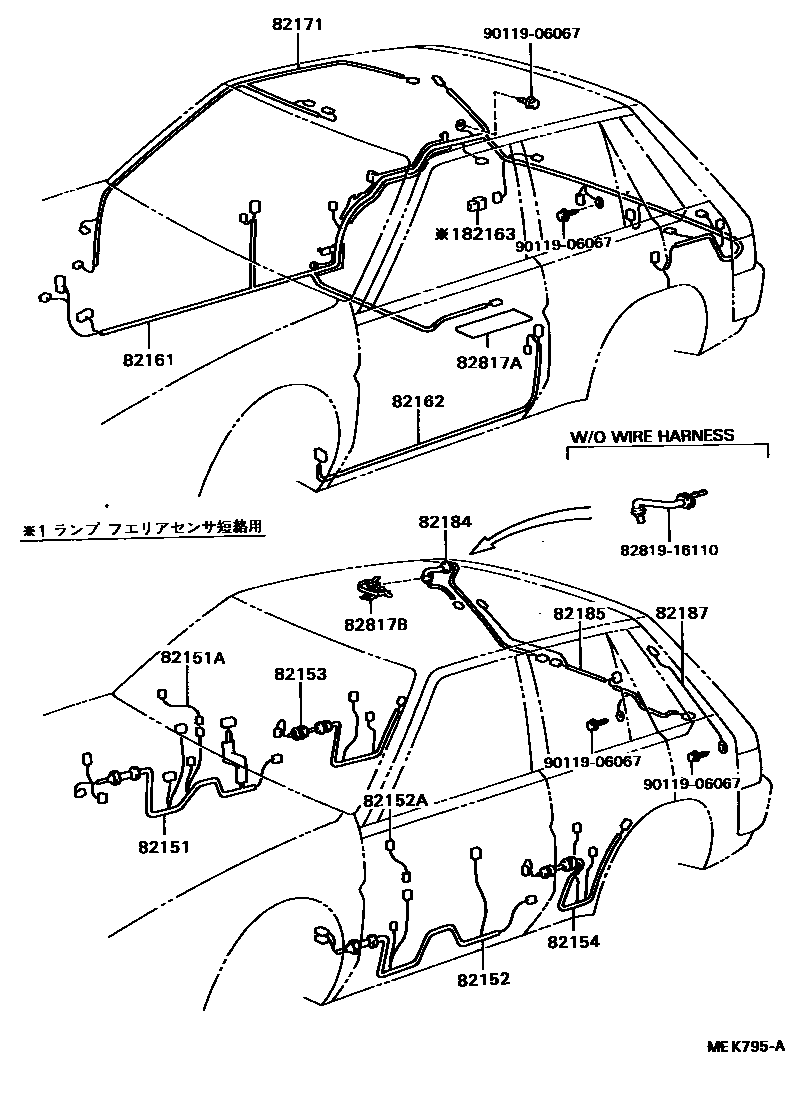

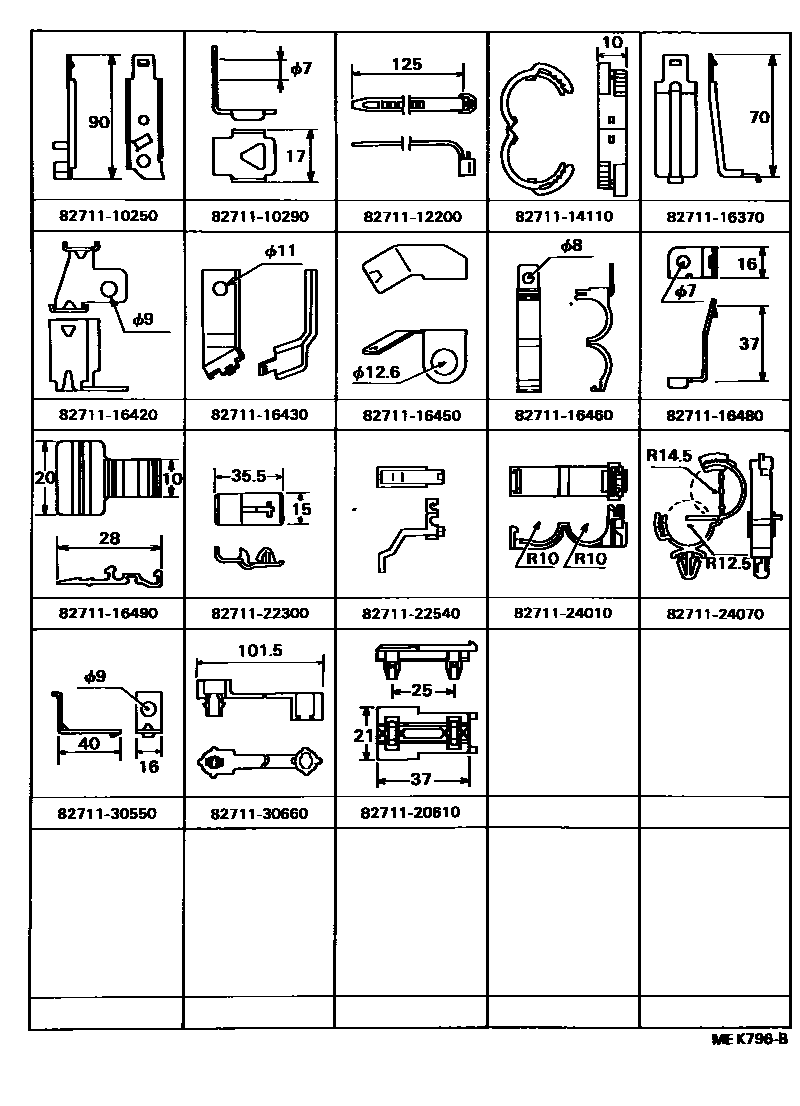

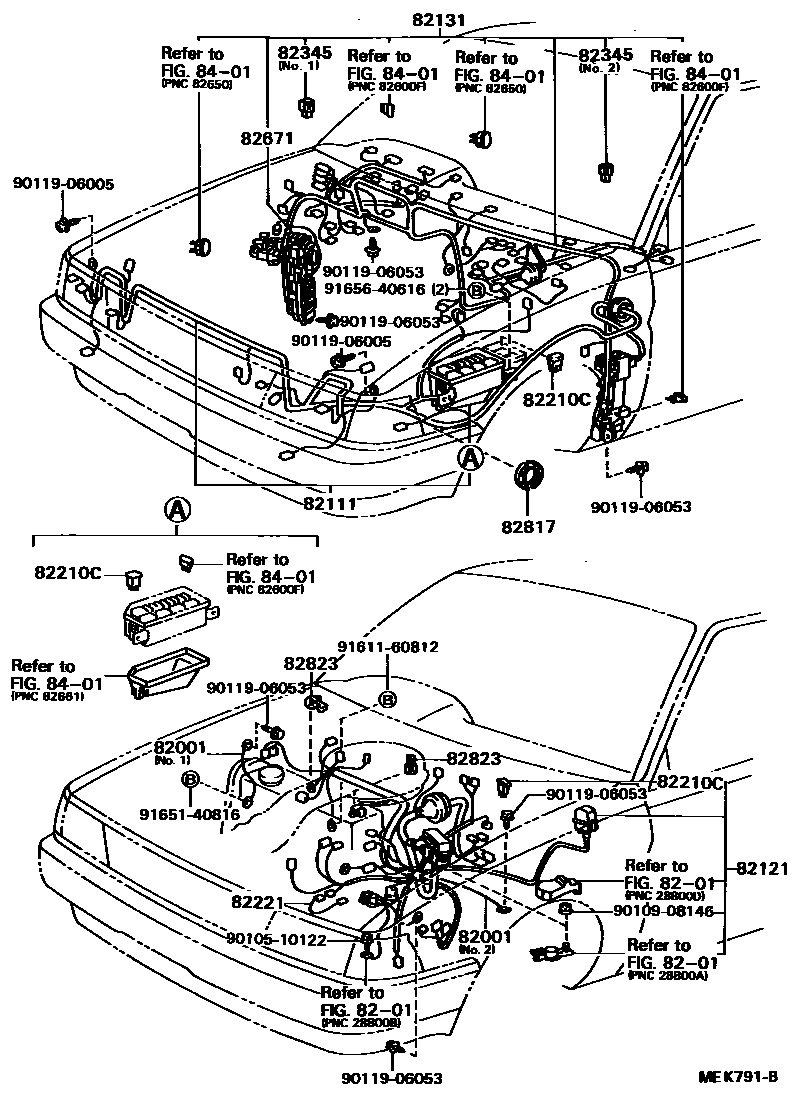

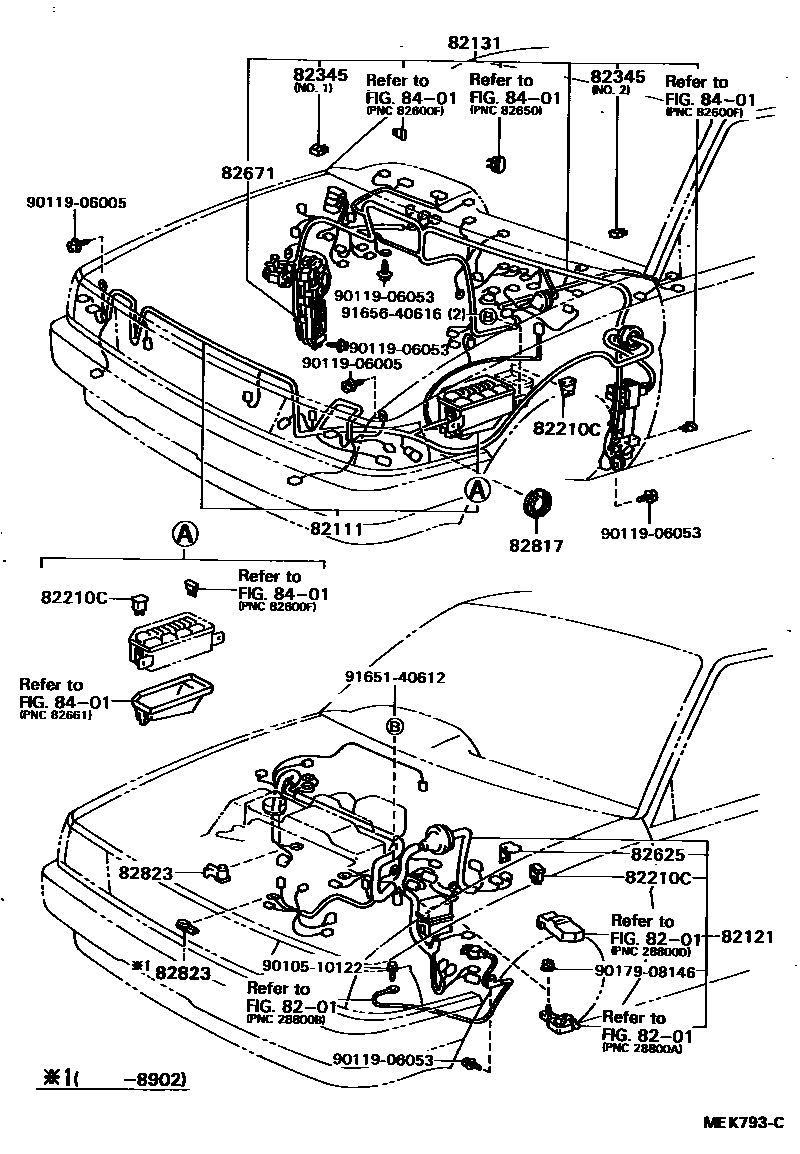

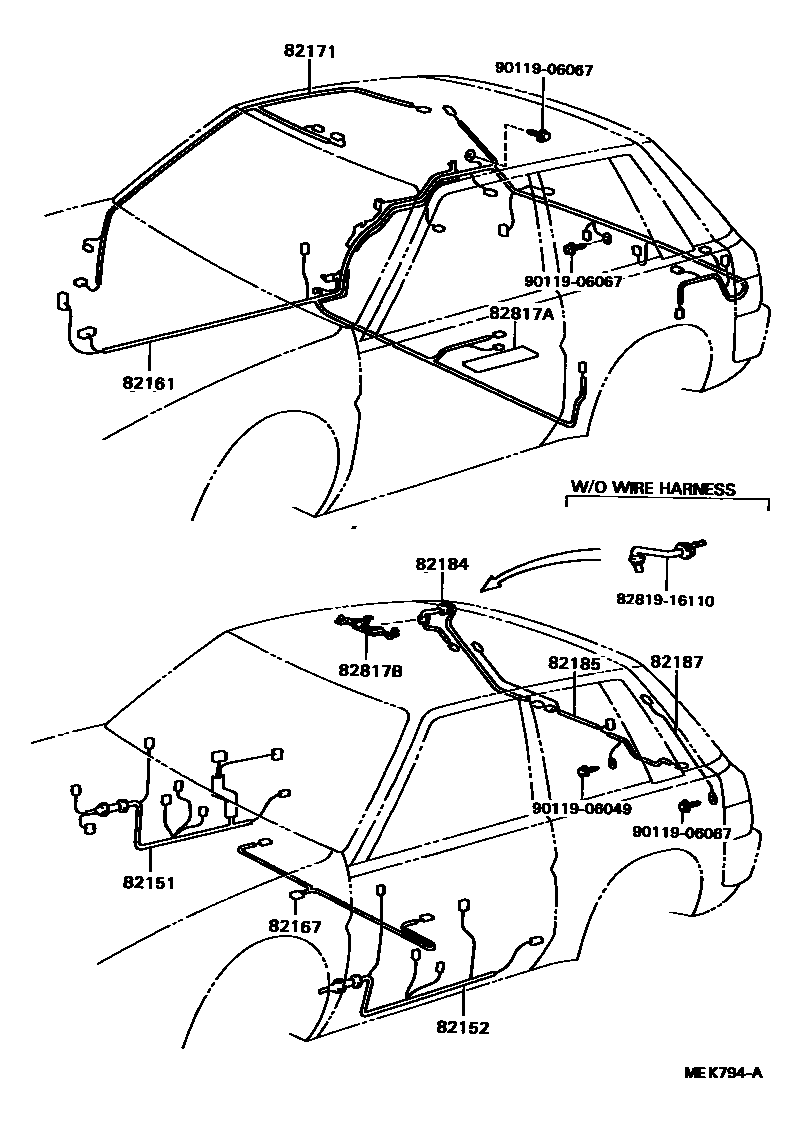

Toyota COROLLA 线束和卡夹 — Figure 8202
Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 6 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82001 | Connection cable No. 1 | 90980-07242 · 90980-07267 · 90980-07282 |
| 82111 | Engine room main wiring harness | 82111-16650 · 82111-16660 · 82111-16661 · 82111-16670 · 82111-16680 · 82111-16690 · 82111-16760 · 82111-1G220 |
| 82121 | Engine wiring harness | 82121-16211 · 82121-16252 · 82121-16261 · 82121-16340 · 82121-16350 · 82121-16360 · 82121-16370 · 82121-16380 · 82121-16390 · 82121-16430 |
| 82131 | Front panel wiring harness | 82131-1G190 · 82131-1G200 · 82131-1G201 · 82131-1G210 · 82131-1G220 · 82131-1G230 · 82131-1G260 · 82131-1G270 · 82131-1G280 · 82131-1G290 · 82131-1G300 · 82131-1G310 · 82131-1G370 · 82131-1G380 · 82131-1G381 · 82131-1G400 · 82131-1G401 · 82131-1G410 |
| 82151 | Right front door wiring harness | 82151-16030 · 82151-16040 · 82151-16050 · 82151-16060 |
| 82151A | Right front door wiring harness No. 2 | 82151-16070 |
| 82152 | Left front door wiring harness | 82152-16020 · 82152-16030 · 82152-16040 · 82152-16050 |
| 82152A | Left front door wiring harness No. 2 | 82151-16070 |
| 82153 | Rear door wiring harness No. 1 | 82153-16010 |
| 82154 | Rear door wiring harness No. 2 | 82154-16010 |
| 82161 | floor wiring harness | 82161-16120 · 82161-16131 · 82161-16290 · 82161-16300 · 82161-16310 · 82161-16480 |
| 82162 | Floor wiring harness No. 2 | 82162-16200 |
| 82163 | Floor wiring harness No. 3 | 82163-16010 |
| 82167 | Seat No. 1 wiring harness | 82167-16010 |
| 82171 | Roof No. 1 wiring harness | 82171-16060 · 82171-16070 · 82171-16110 |
| 82184 | Rear door No. 1 wiring harness | 82184-16120 · 82184-16130 · 82184-16180 |
| 82185 | Rear door wiring harness No. 2 | 82185-16120 · 82185-16130 · 82185-16140 · 82185-16150 |
| 82187 | Rear window wiring harness No. 2 | 82187-16040 · 82187-16050 |
| 82210C | fuse | 90982-08188 · 90982-08190 · 90982-08203 · 90982-08253 |
| 82221 | Oil pressure switch wiring harness | 82221-16040 |
| 82345 | diode | 82345-12050 · 82345-20060 · 82345-32020 |
| 82625 | Fuse terminal | 82625-12020 · 82625-12030 |
| 82671 | junction box | 82660-12130 |
| 82817 | No. 1 wire harness protection device | 82817-22280 |
| 82817A | No. 2 wire harness protection device | 82817-16100 |
| 82817B | No. 3 wire harness protection device | 82817-16190 · 82817-16200 |
| 82823 | No. 1 terminal cover | 82823-20030 · 82823-22050 |
