Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201

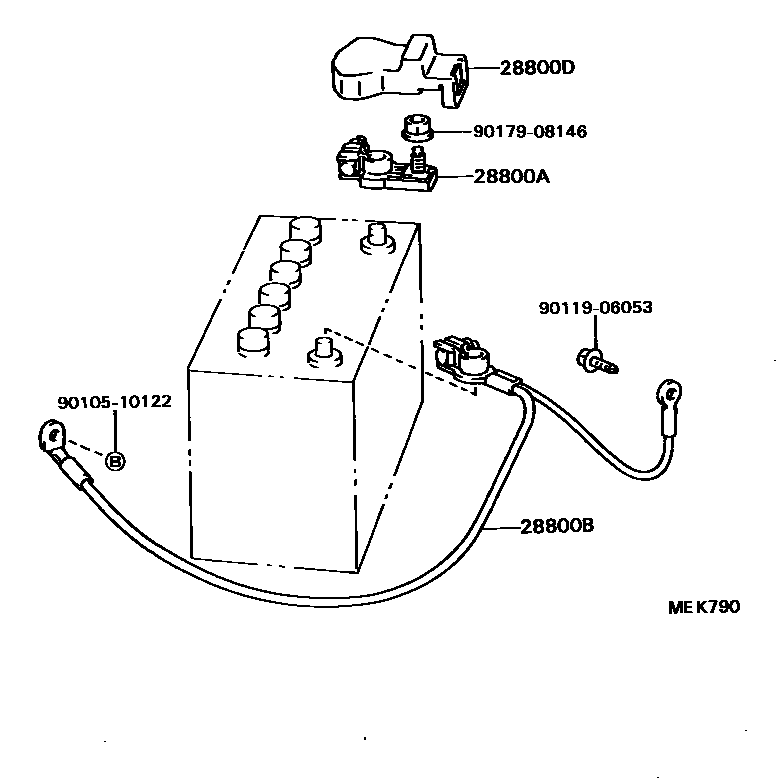

Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800A | battery positive terminal | 90982-05028 · 90982-05032 |
| 28800B | Cable between battery and ground | 82123-16040 · 82123-16070 |
| 28800D | Connector cover (for battery terminals) | 82821-12190 · 82821-16010 · 82821-16020 |
