Toyota COROLLA 后组合灯 — Figure 8111

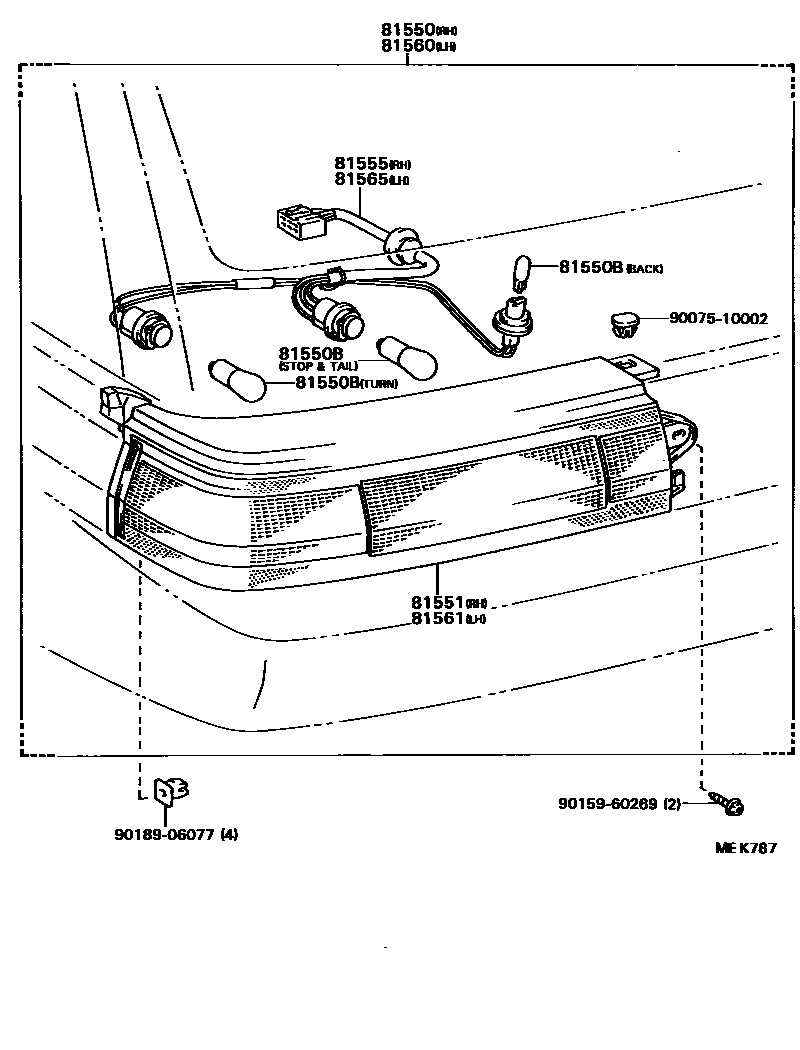

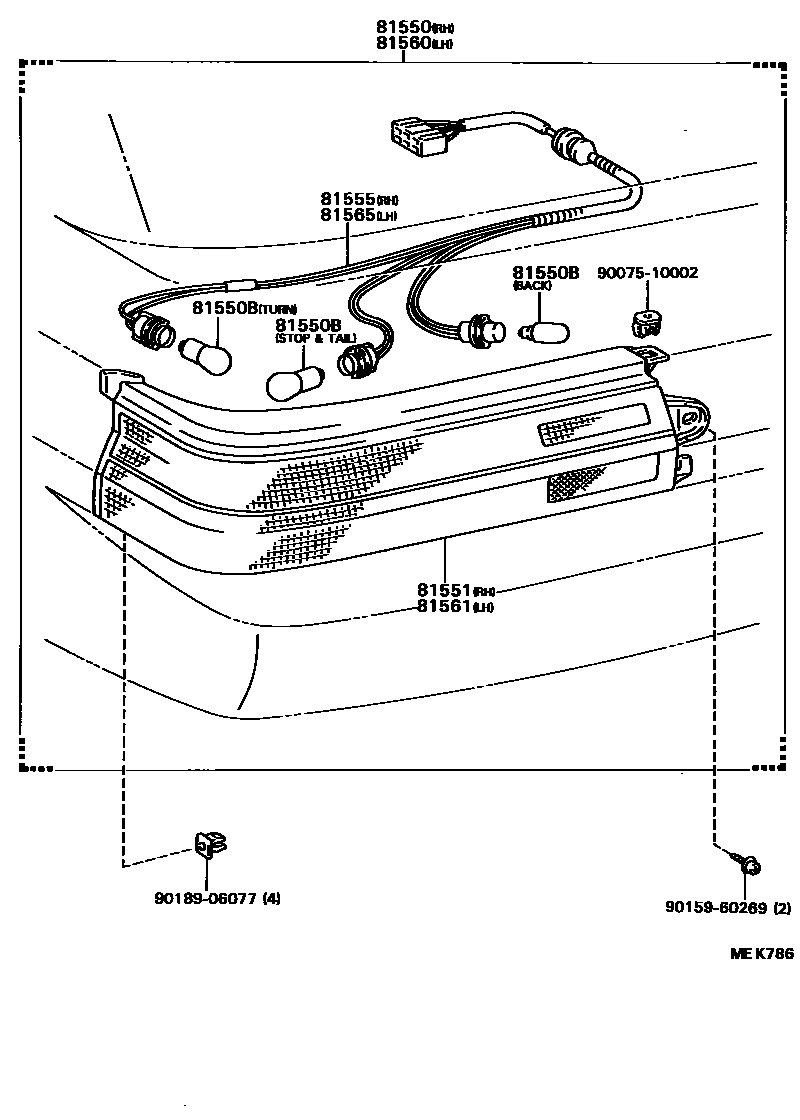

Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-16361 · 81550-16400 |
| 81550B | Bulb (for rear combination lights) | 90981-11039 · 99132-11210 · 99132-21210 |
| 81551 | Right rear combination lamp shade | 81551-16361 · 81551-16400 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-16361 · 81555-16400 |
| 81560 | Left rear combination light assembly | 81560-16381 · 81560-16430 |
| 81561 | Left rear combination lamp shade | 81561-16381 · 81561-16430 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-16361 · 81555-16400 |
