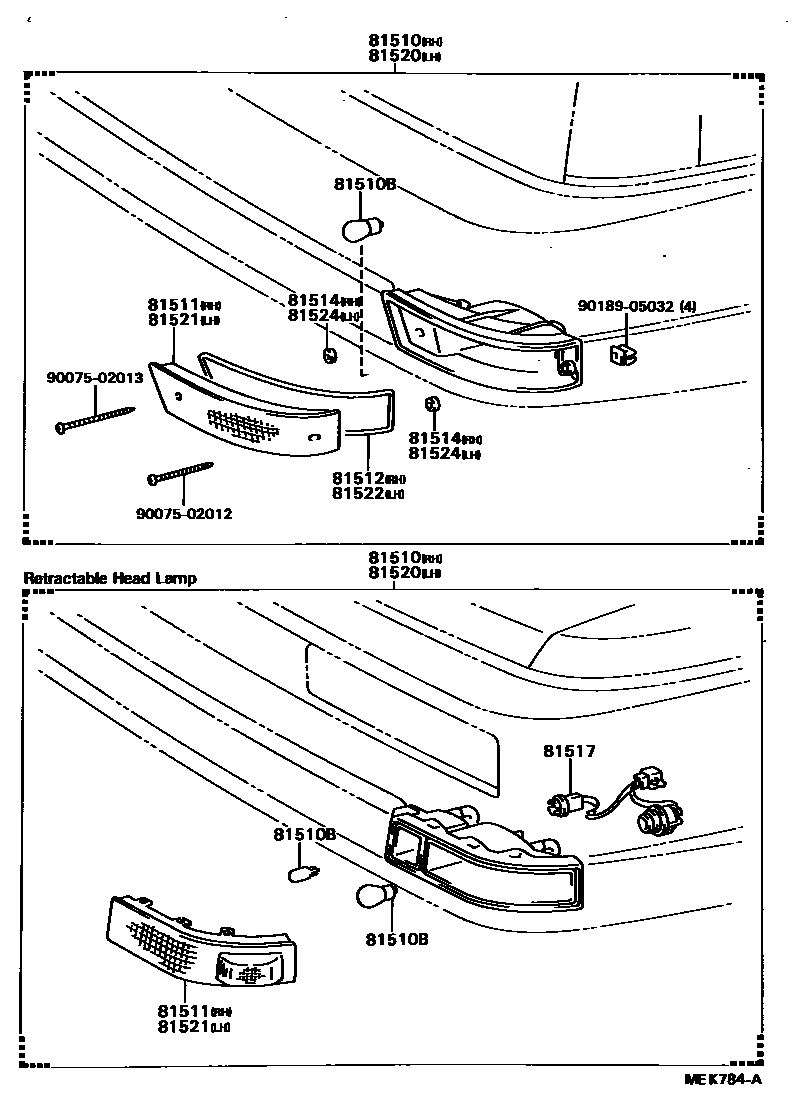

Toyota COROLLA 前转向灯 — Figure 8103
Toyota COROLLA EPC diagram 8103, 前转向灯, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-16131 · 81510-80061 |
| 81510B | Bulb (for front turn signal lamp) | 99132-11210 · 99132-12050 |
| 81511 | Right front turn signal lamp cover | 81511-16061 · 81511-16131 |
| 81512 | Right front turn signal lamp housing gasket | 81512-16061 |
| 81514 | Right front turn signal light body gasket | 81514-20330 |
| 81517 | Front turn signal lamp holder | 81515-16131 |
| 81520 | Left front turn signal lamp assembly | 81520-16131 · 81520-80061 |
| 81521 | Left front turn signal lamp cover | 81521-16061 · 81521-16131 |
| 81522 | Left front turn signal lamp housing gasket | 81512-16061 |
| 81524 | Left front turn signal light body gasket | 81514-20330 |
