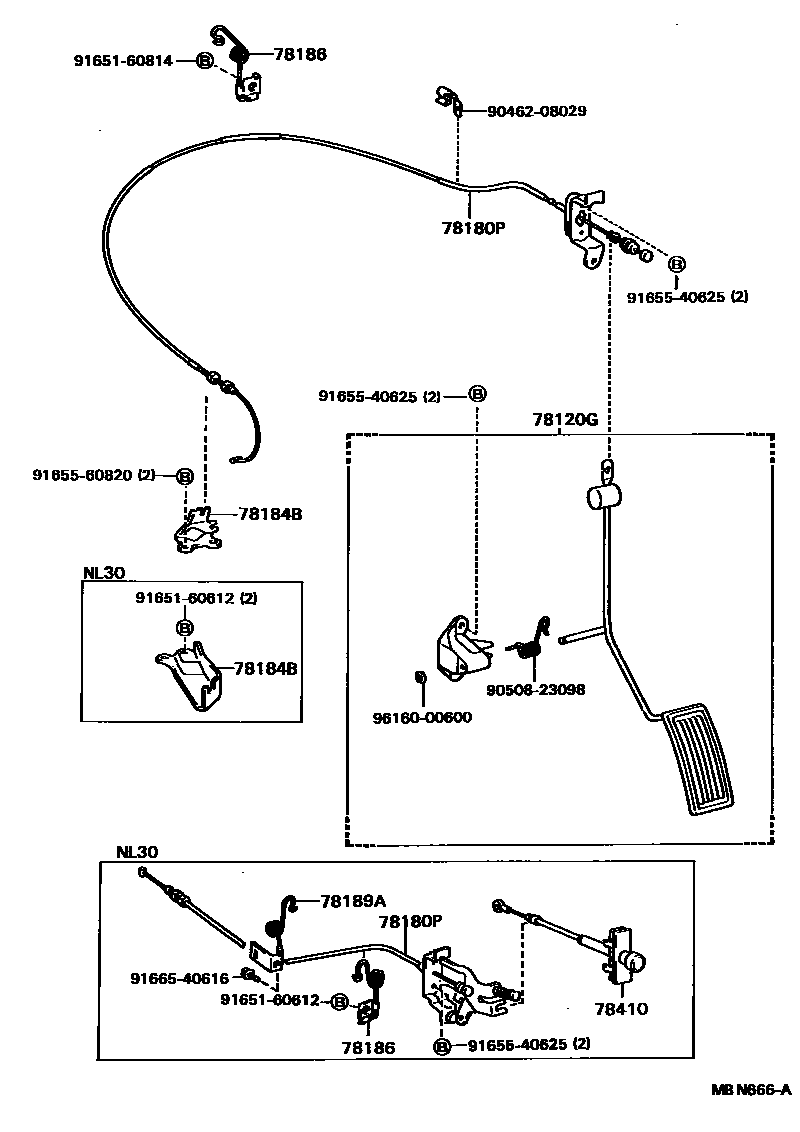

Toyota COROLLA accelerator pedal connecting rod — Figure 7801
Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78120G | Accelerator pedal lever assembly | 78120-16060 |
| 78180P | Accelerator pedal control cable assembly | 78180-16150 · 78180-16170 · 78180-16210 |
| 78184B | Throttle pedal control cable bracket | 26662-55010 · 78184-10070 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-16030 · 78186-16060 |
| 78189A | No. 2 accelerator pedal control cable bracket | 78186-16070 |
