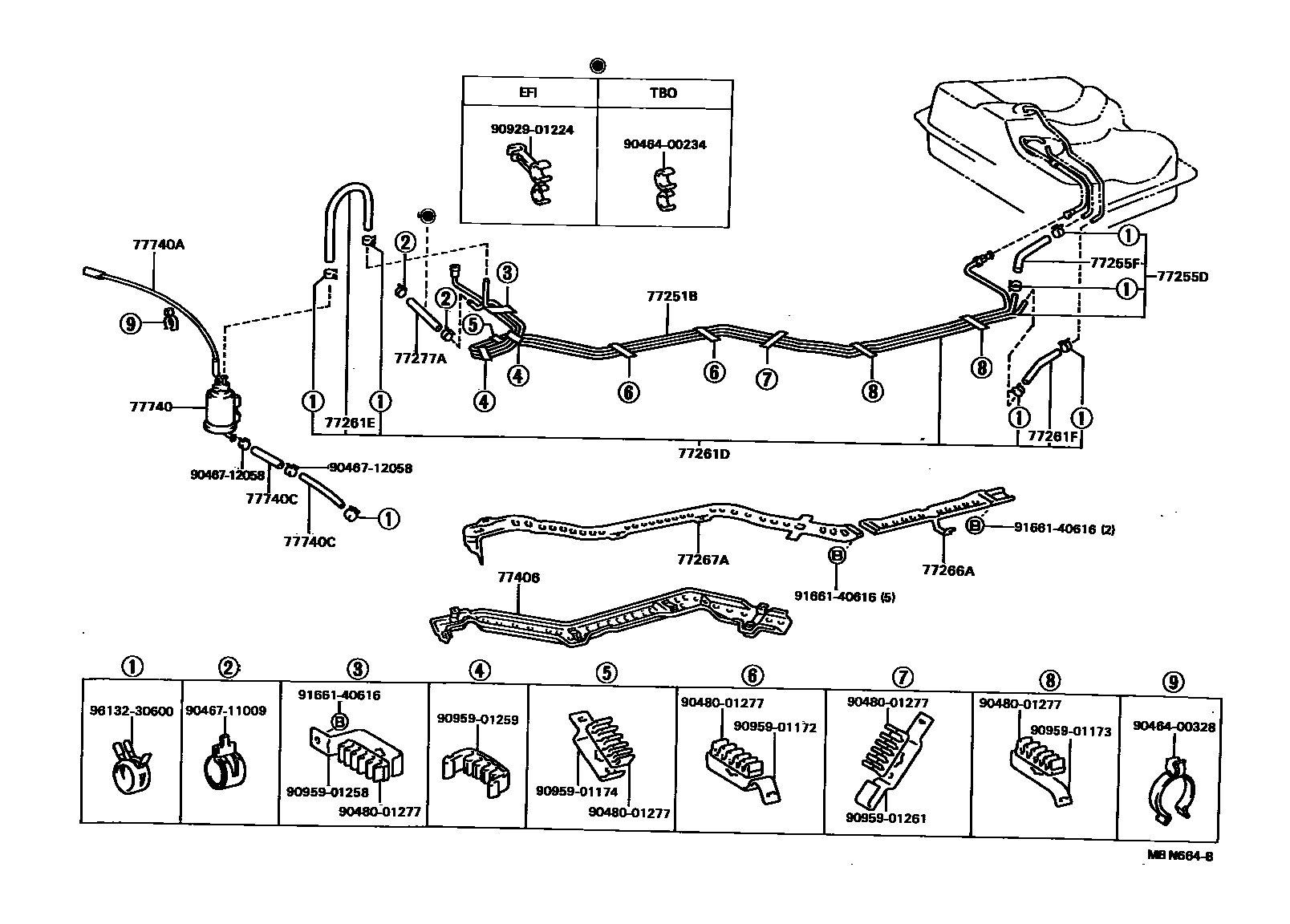

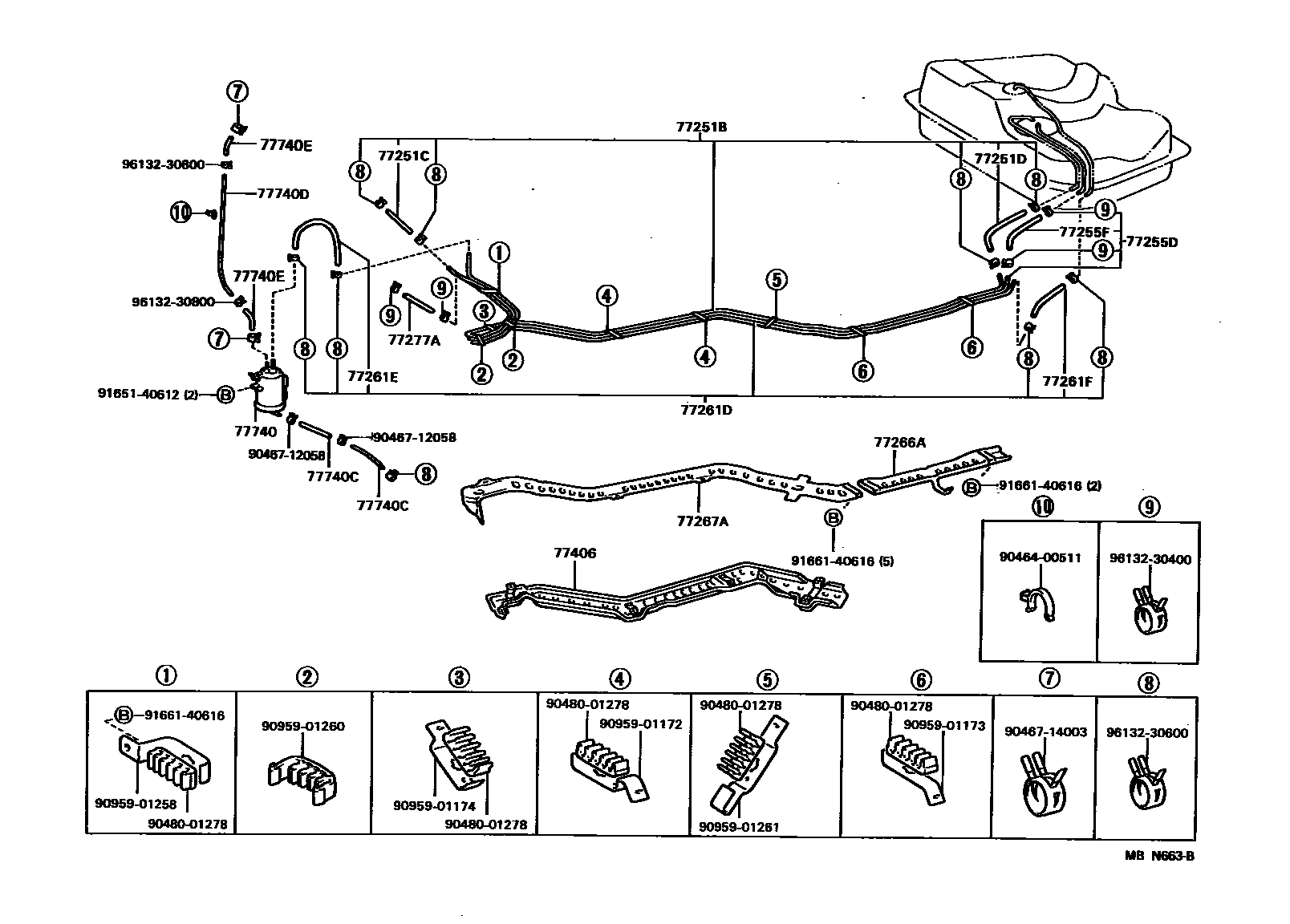

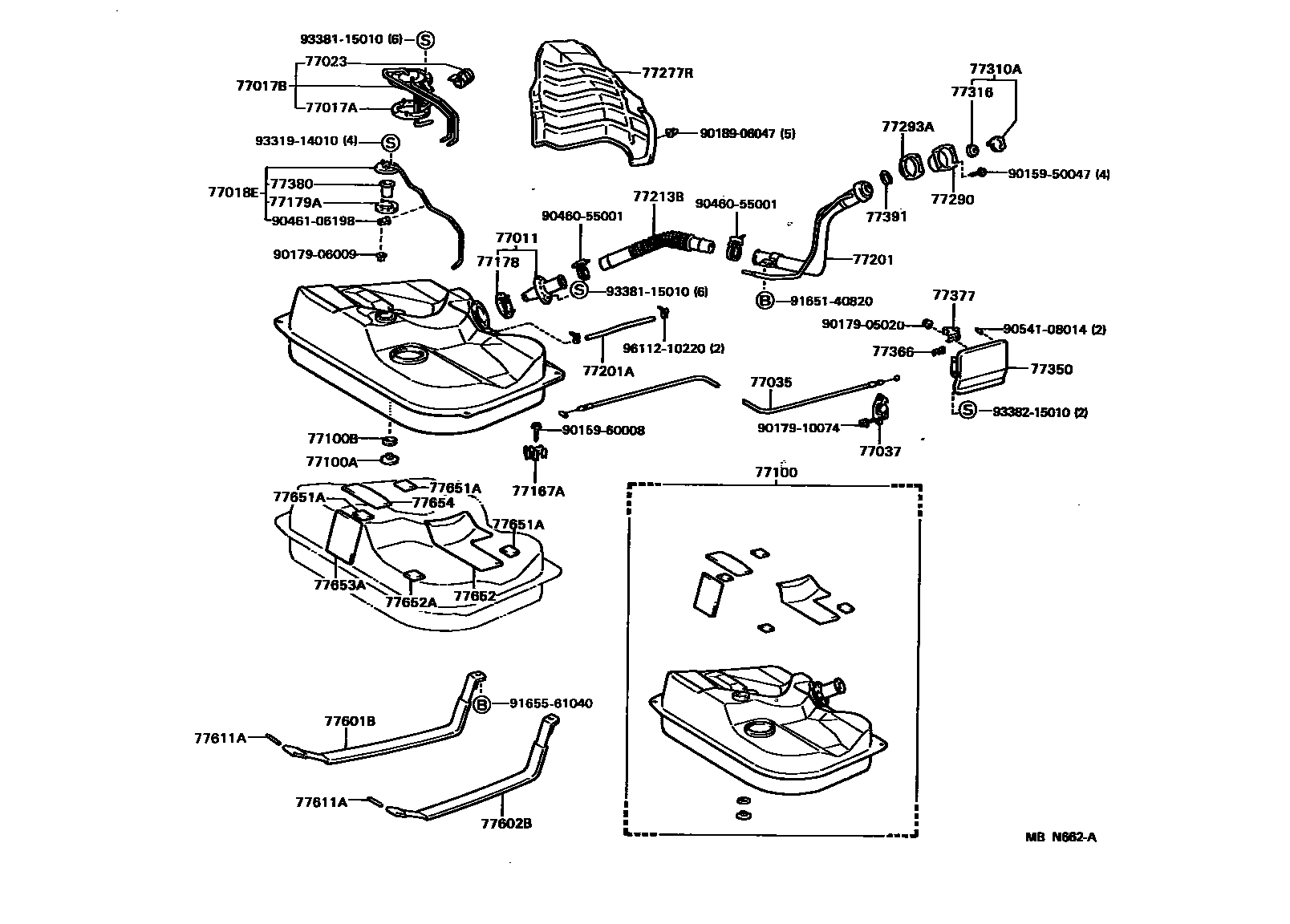

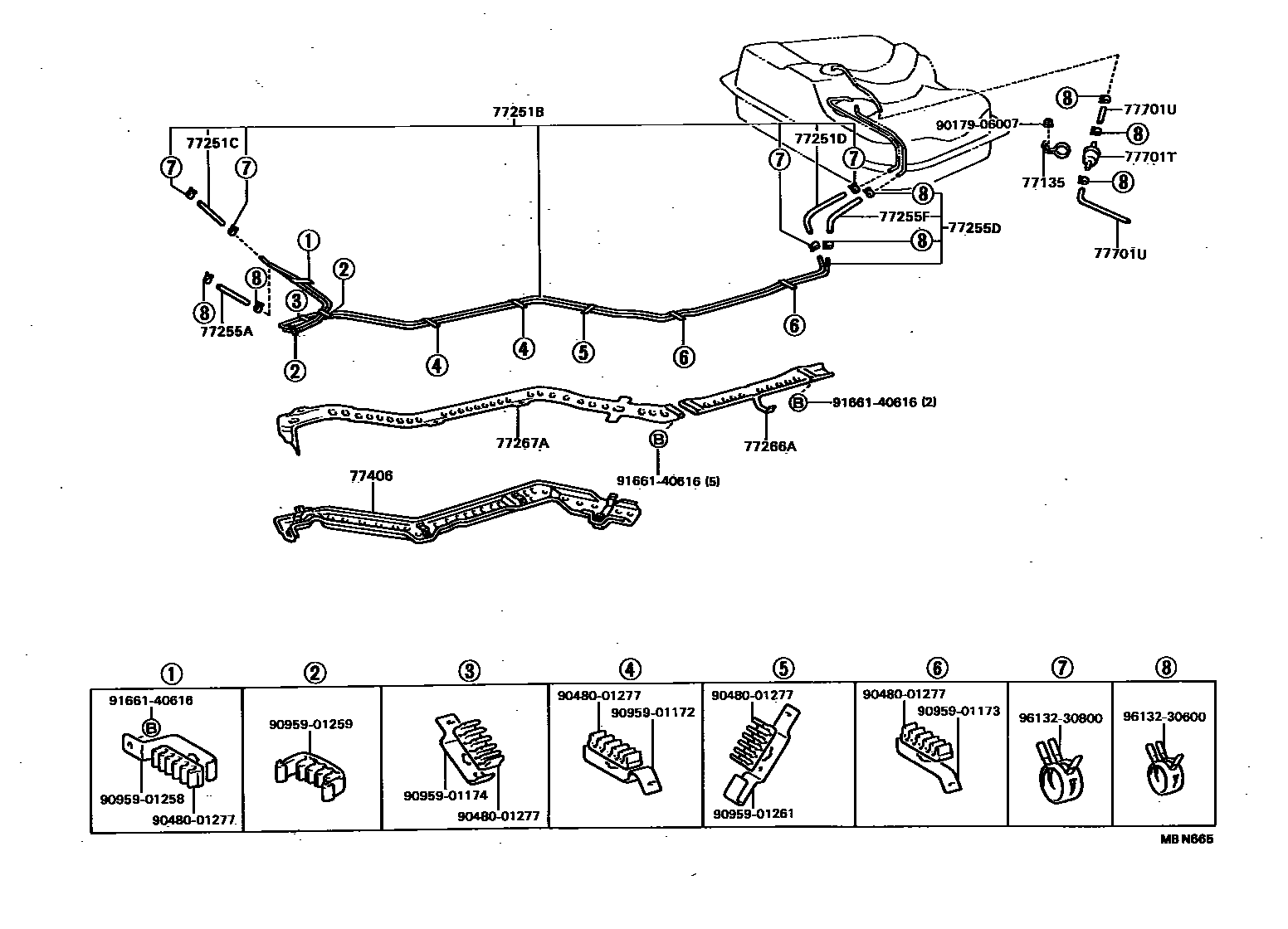

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 4 images and 55 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-12020 · 77011-16060 |
| 77017A | fuel tank vent pipe gasket | 77178-10010 |
| 77017B | Fuel tank vent pipe sub-assembly | 77017-16071 · 77017-16090 |
| 77018E | Fuel tank evaporation vent pipe sub-assembly | 77018-16031 · 77018-16041 |
| 77023 | Fuel suction pipe filter sub-assembly | 77023-12050 · 77023-32010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-16060 |
| 77037 | Fuel filler cap lock sub-assembly | 77037-12040 |
| 77100 | fuel tank assembly | 77001-19435 · 77001-19445 · 77001-19485 · 77001-19495 |
| 77100A | Screw plug (for fuel tank) | 90341-20004 |
| 77100B | Gasket (for fuel tank) | 90430-20007 |
| 77135 | One-way valve bracket | 77277-16050 |
| 77167A | No. 2 fuel tank vent pipe bracket | 77167-16010 · 77167-16020 · 77167-16030 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-13020 |
| 77179A | fuel tank breather gasket | 77179-16010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-16080 · 77201-16130 |
| 77201A | No. 1 fuel hose (for fuel tank inlet pipe) | 90445-22009 |
| 77213B | Fuel tank to filler pipe hose | 77213-16040 |
| 77251B | main fuel pipe | 77205-16011 · 77205-16021 · 77251-16110 |
| 77251C | No. 1 fuel hose (for main fuel line) | 77259-16050 · 95333-08020 |
| 77251D | No. 2 fuel hose (for main fuel line) | 90445-12210 · 90445-14159 |
| 77255A | No. 1 fuel hose (for No. 2 drain pipe) | 90445-12206 |
| 77255D | fuel return pipe | 77207-16010 · 77207-16020 · 77207-16040 |
| 77255F | No. 2 fuel hose (for fuel return pipe) | 95333-04020 · 95333-06020 |
| 77261D | Fuel tank to charcoal canister pipe | 77019-16010 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 95333-06030 |
| 77261F | No. 2 fuel hose (for fuel tank to canister pipe) | 95333-06020 |
| 77266A | No. 1 fuel line protection device | 77266-10020 |
| 77267A | No. 2 fuel pipe protection device | 77267-16010 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 90447-11013 · 90447-11015 · 90447-12101 |
| 77277R | Fuel tank filler pipe protection device | 77277-16080 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-16050 · 77290-16060 |
| 77293A | No. 3 fuel tank filler pipe cover | 77293-16040 |
| 77310A | Fuel tank cap assembly | 77310-12100 · 77310-35061 |
| 77316 | fuel tank cap gasket | 77316-12050 |
| 77350 | Fuel filler cap assembly | 77350-16060 · 77350-16080 · 77350-16110 · 77350-16120 |
| 77366 | Fuel filler cap hinge spring | 77360-24010 |
| 77377 | Fuel filler cap lock retainer | 77377-20030 |
| 77380 | Fuel shut-off valve assembly | 77380-14020 |
| 77391 | fuel inlet ring | 77391-16010 |
| 77406 | Fuel pipe protection device sub-assembly | 77406-10010 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-16070 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-16050 |
| 77611A | Pin (for fuel tank strap) | 90250-08019 |
| 77651A | No. 1 fuel tank liner | 77651-16060 |
| 77652 | No. 1 fuel tank liner | 77651-16070 |
| 77652A | No. 2 fuel tank liner | 77652-16070 |
| 77653A | No. 3 fuel tank liner | 77653-16060 |
| 77654 | No. 2 fuel tank liner | 77652-16080 |
| 77701T | Check valve (for main fuel tank) | 90917-10069 |
| 77701U | Fuel hose (for check valve) | 90445-12208 · 95333-06030 |
| 77740 | Carbon canister assembly | 77704-14230 · 77704-16081 |
| 77740A | No. 1 fuel hose (for canister) | 90447-04091 |
| 77740C | No. 3 fuel hose (for charcoal canister) | 90445-12166 · 90446-08014 |
| 77740D | No. 4 fuel hose (for charcoal canister) | 77791-16041 |
| 77740E | No. 5 fuel hose (for charcoal canister) | 90910-05195 |
