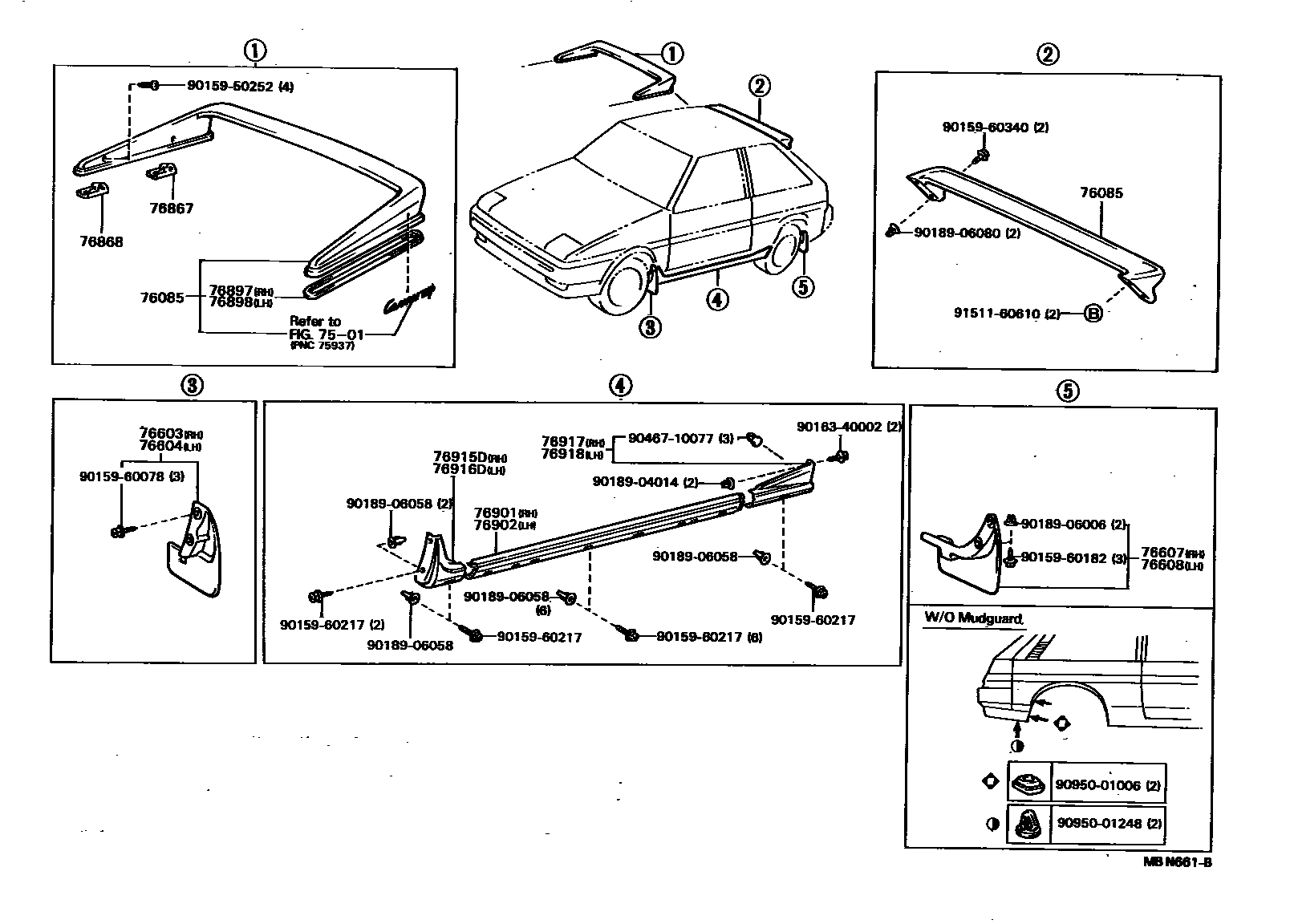

Toyota COROLLA 挡泥板和扰流板 — Figure 7601
Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76085 | Rear spoiler sub-assembly | 76871-16030 |
| 76603 | Right front fender fender sub-assembly | 76621-19095 · 76621-19105 · 76621-19115 · 76621-19145 |
| 76604 | Left front fender fender sub-assembly | 76622-19095 · 76622-19105 · 76622-19115 · 76622-19145 |
| 76607 | Right rear side fender sub-assembly | 76625-19135 · 76625-19145 · 76625-19155 · 76625-19185 |
| 76608 | Left rear side fender sub-assembly | 76626-19145 · 76626-19155 · 76626-19165 · 76626-19195 |
| 76867 | Right rear spoiler fixing | 76867-16020 |
| 76868 | Left rear spoiler fixing | 76868-16010 |
| 76897 | Right rear spoiler protection strip | 76897-16010 |
| 76898 | Left rear spoiler protection strip | 76898-16010 |
