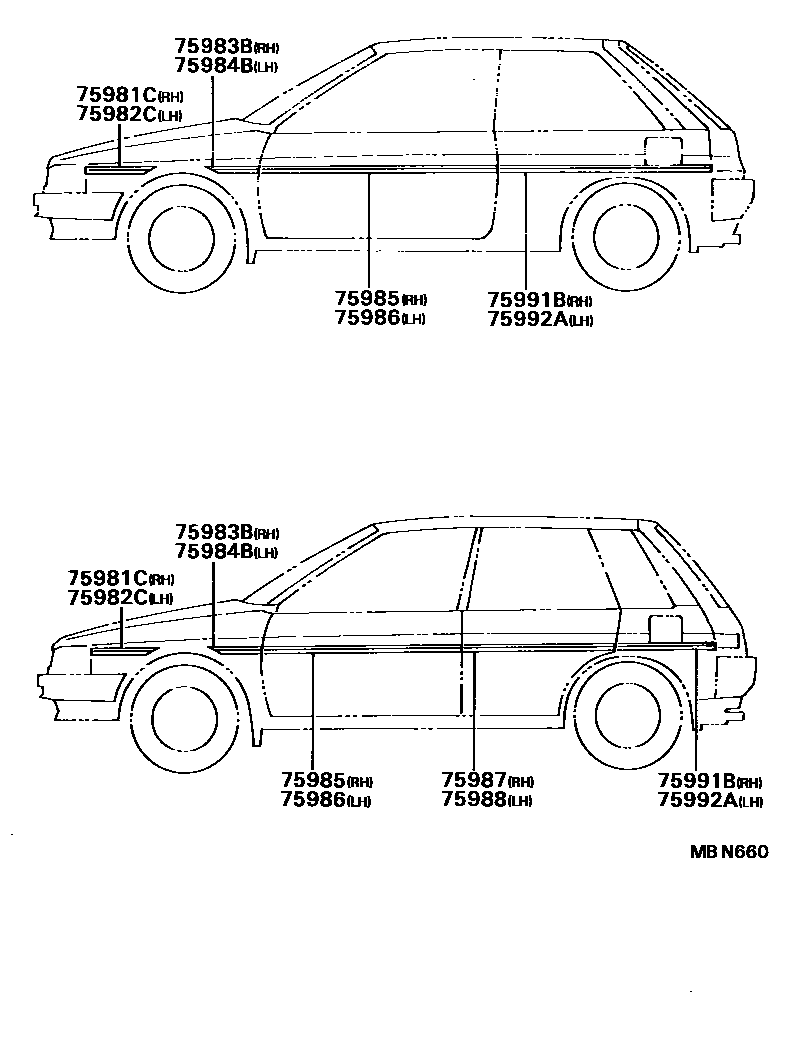

Toyota COROLLA 车身镶条 — Figure 7507
Toyota COROLLA EPC diagram 7507, 车身镶条, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75981C | Right front fender front trim | 75981-16260 |
| 75982C | Left front fender front trim | 75982-16240 |
| 75983B | Right front fender rear trim | 75983-16130 |
| 75984B | Left front fender rear trim | 75984-16130 |
| 75985 | Right front door trim | 75985-16480 · 75985-16490 |
| 75986 | Left front door trim | 75986-16480 · 75986-16490 |
| 75987 | Right rear door trim | 75987-16260 |
| 75988 | Left rear door trim | 75988-16260 |
| 75991B | Right side surround strip | 75991-16280 · 75991-16290 |
| 75992A | Left side surround strip | 75992-16260 · 75992-16270 |
