Toyota COROLLA 前防护条 — Figure 7502

Toyota COROLLA EPC diagram 7502, 前防护条, with 1 images and 11 PNC and OE references.

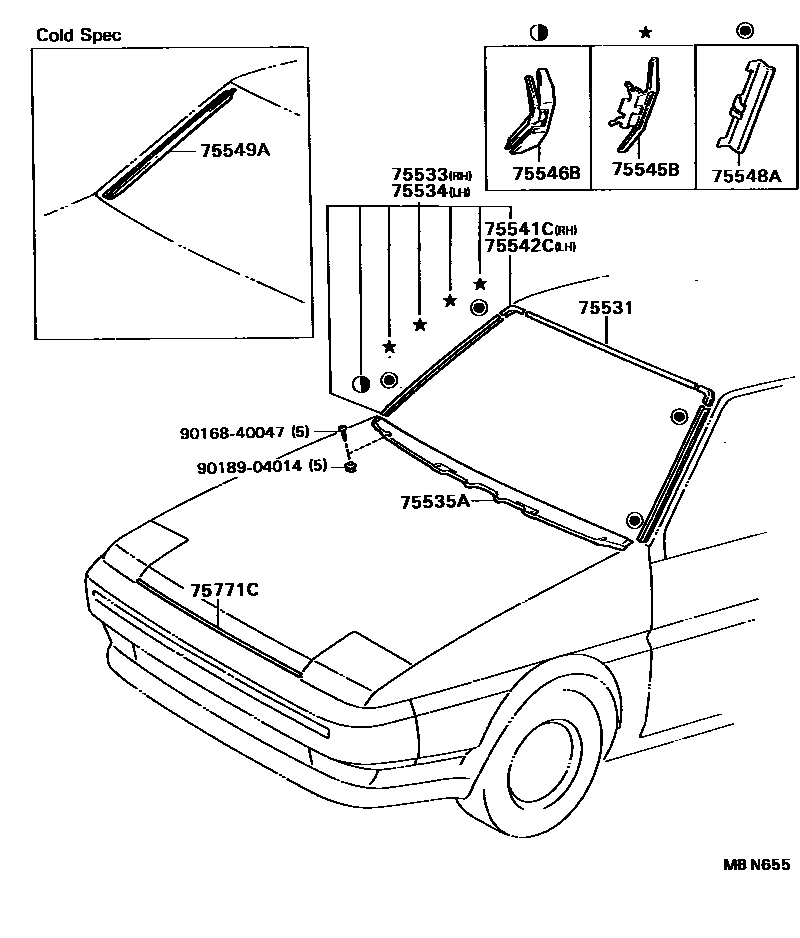

Toyota COROLLA 前防护条 EPC diagram — MBN655
前防护条 — MBN655 (198805 – 999999)

PNC and OE references

PNCPart nameOE numbers
75531Windshield outer protective strip75531-16050 · 75531-16060
75533Windshield right outer protective strip75533-16040 · 75533-16050 · 75533-16090
75534Windshield left outer protective strip75534-16040 · 75534-16050 · 75534-16070
75535AWindshield outer lower protective strip75535-16040
75541CWindshield upper right protective strip joint cover75541-16040 · 75541-16050
75542CWindshield upper left protective strip joint cover75542-16040 · 75542-16050
75545BNo. 1 windshield outer protective strip clip75545-16030
75546BNo. 2 windshield outer protective strip clip75546-16030 · 75547-16030
75548ANo. 1 windshield outer protective strip fasteners75548-16030
75549AWindshield outer auxiliary protective strip75549-16020
75771CEngine cover front protective strip75771-16040
