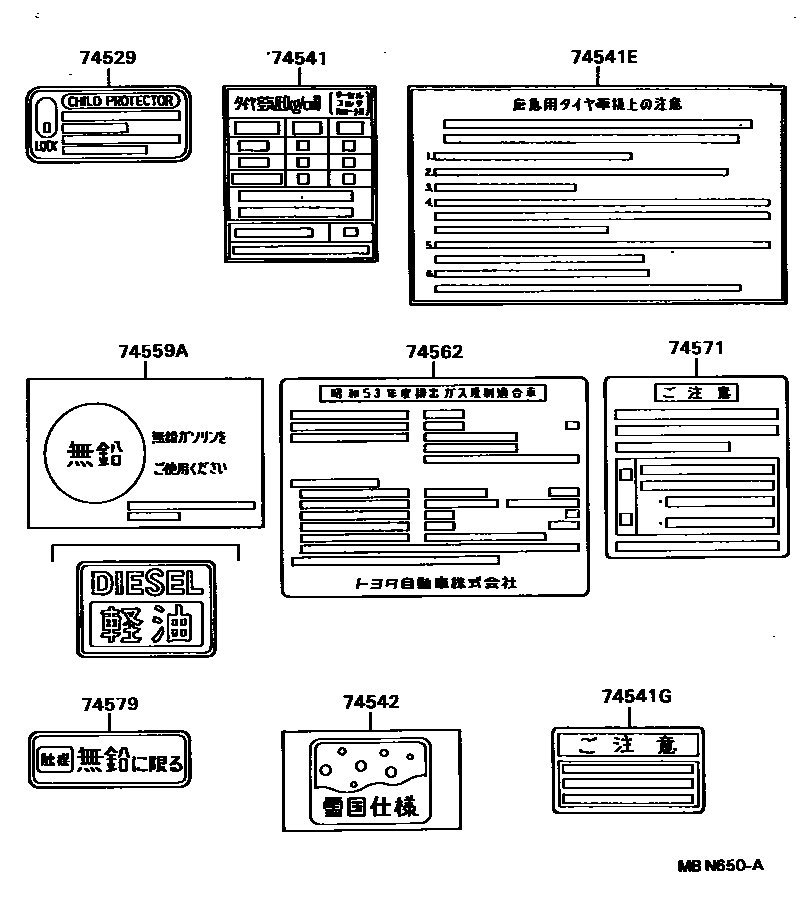

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74529 | Child safety or child restraint lock warning nameplate | 69339-12010 |
| 74541 | tire pressure warning plate | 42661-16221 · 42661-16250 · 42661-16261 · 42661-16270 |
| 74541E | Small spare tire warning plate | 42668-16012 |
| 74541G | Safety warning nameplate | 42661-16300 |
| 74542 | Rear window marking plate | 74542-12020 |
| 74559A | Fuel warning plate | 74559-14010 · 74559-14030 |
| 74562 | Emission control system information plate | 74562-16110 · 74562-16120 · 74562-16130 · 74562-16200 · 74562-16210 |
| 74571 | Brake fluid warning plate | 47288-32010 |
| 74579 | Unleaded fuel warning nameplate | 74579-30011 |
