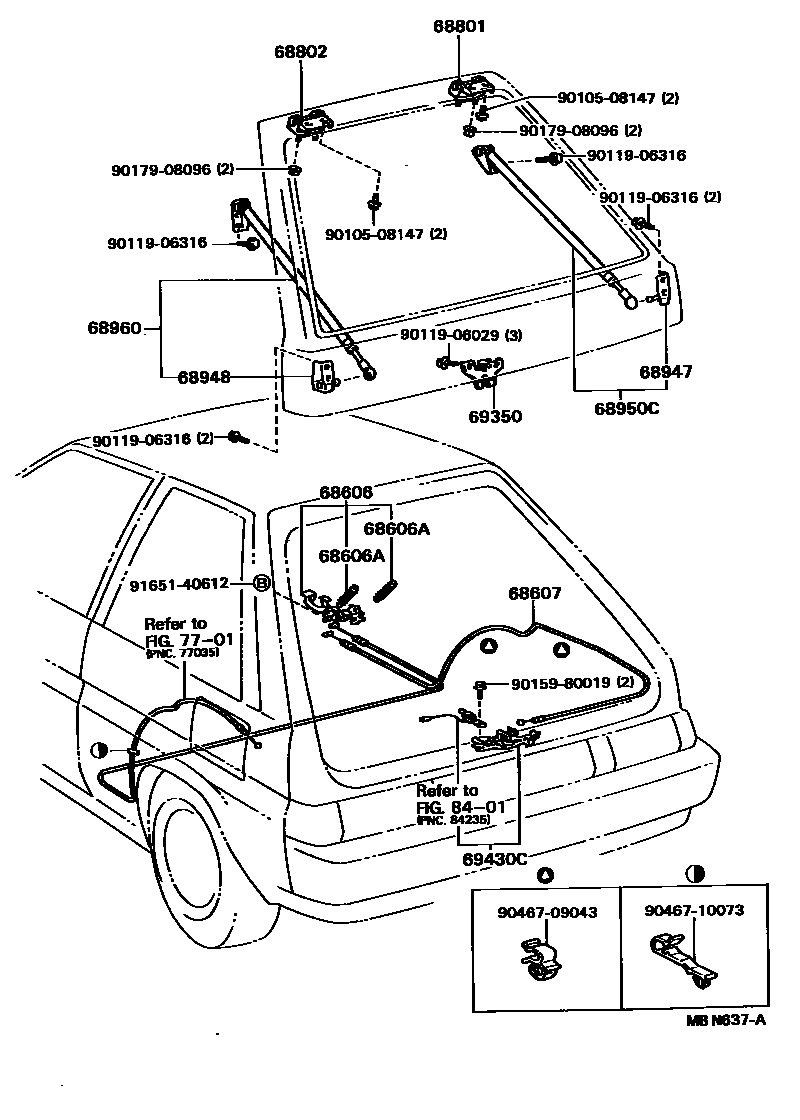

Toyota COROLLA 背门锁和背门把手 — Figure 6709
Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68606 | Rear door lock opening lever sub-assembly | 64606-10060 · 64606-12060 |
| 68606A | Tension spring (for the rear door lock opening lever) | 90506-09034 |
| 68607 | Rear door lock control cable sub-assembly | 64607-16160 |
| 68801 | Back door upper right hinge sub-assembly | 68801-16030 · 68801-16031 |
| 68802 | Back door upper left hinge sub-assembly | 68801-16030 · 68801-16031 |
| 68947 | Back door right damping strut lower bracket | 68947-16010 |
| 68948 | Rear door left damping strut lower bracket | 68948-16010 |
| 68950C | Back door right support rod assembly | 68950-19655 · 68950-19656 · 68950-19665 · 68950-19666 · 68950-19675 · 68950-19676 · 68950-19685 · 68950-19686 |
| 68960 | Back door left support rod assembly | 68960-19345 · 68960-19346 · 68960-19355 · 68960-19356 · 68960-19365 · 68960-19366 · 68960-19375 · 68960-19376 |
| 69350 | Rear door lock assembly | 69350-16090 · 69350-16110 |
| 69430C | Back door lock assembly | 69430-16120 · 69430-16130 · 69430-16170 |
