Toyota COROLLA 后门板和后门玻璃 — Figure 6705

Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 30 PNC and OE references.

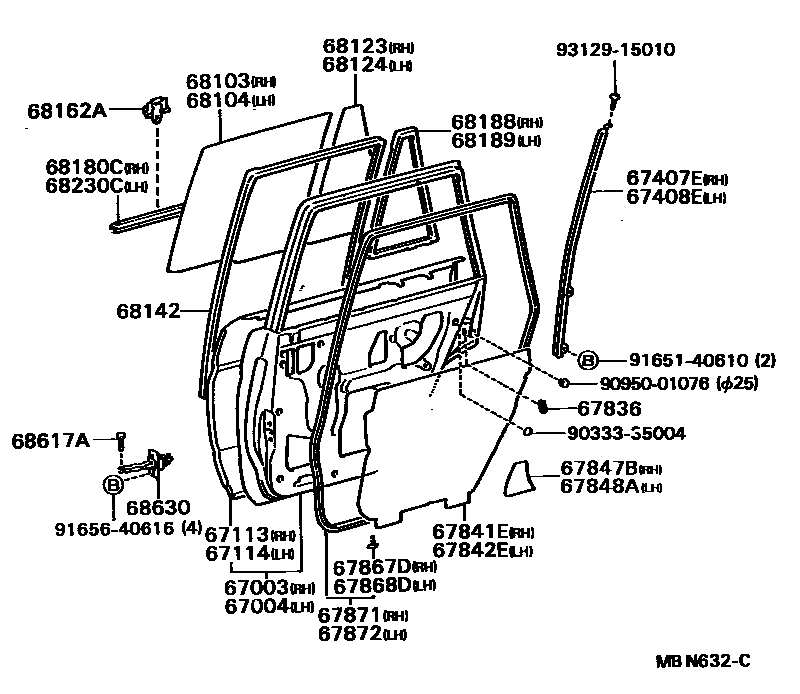

Toyota COROLLA 后门板和后门玻璃 EPC diagram — MBN632C
后门板和后门玻璃 — MBN632C (198805 – 999999)

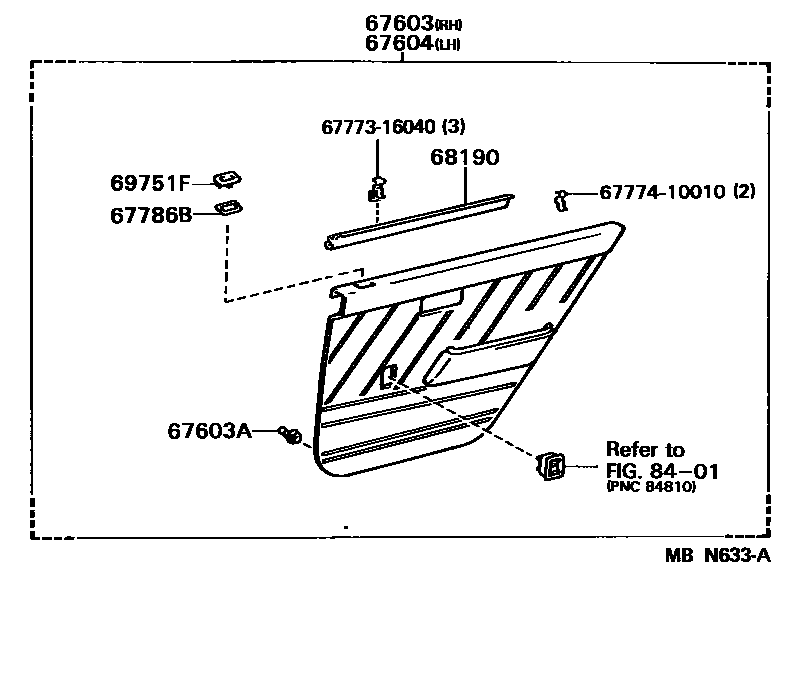

Toyota COROLLA 后门板和后门玻璃 EPC diagram — MBN633A
后门板和后门玻璃 — MBN633A (198805 – 999999)

PNC and OE references

PNCPart nameOE numbers
67003Right rear door panel sub-assembly67003-16180
67004Left rear door panel sub-assembly67004-16180
67113Right rear door outer panel67113-16070
67114Left rear door outer panel67114-16070
67407ERight rear door window divider sub-assembly67407-16050
67408ELeft rear door window divider sub-assembly67408-16050
67603AFixings (for rear door trim)67771-16080
67786BDoor lock button collar fastener (for rear doors)67786-12010
67836Right rear door lock child restraint cover67836-14010
67841ERight rear door access hole cover67841-16090 · 67841-16100
67842ELeft rear door access hole cover67841-16100 · 67842-16060
67847BNo. 1 right rear door ventilator seal67847-16010
67848ANo. 1 left rear door ventilator seal67848-16010
67867DRight rear door seal strip fixing67868-30040
67868DLeft rear door seal strip fixing67868-30040
67871Right rear door sealing strip67871-16120
67872Left rear door sealing strip67872-16120
68103Right rear door glass sub-assembly68113-16080 · 68113-16090 · 68113-16100
68104Left rear door glass sub-assembly68114-16080 · 68114-16090 · 68114-16100
68123Right rear door window glass68123-16080 · 68123-16090 · 68123-16100
68124Left rear door window glass68124-16080 · 68124-16090 · 68124-16100
68142Rear door glass lift chute68142-16060
68162ACatch (for rear door glass outer sealing strip)68211-16010
68180CRight rear door glass outer sealing strip assembly68180-16030
68188Right rear door corner window seal68188-16050
68189Left rear door corner window seal68189-16050
68190Rear door glass inner sealing strip assembly68173-16030 · 68173-16040 · 68174-16030 · 68174-16040
68230CLeft rear door glass outer sealing strip assembly68230-16020
68617ARear door opening limiter pin68617-90A00
68630Rear door opening limiter assembly68630-16040
