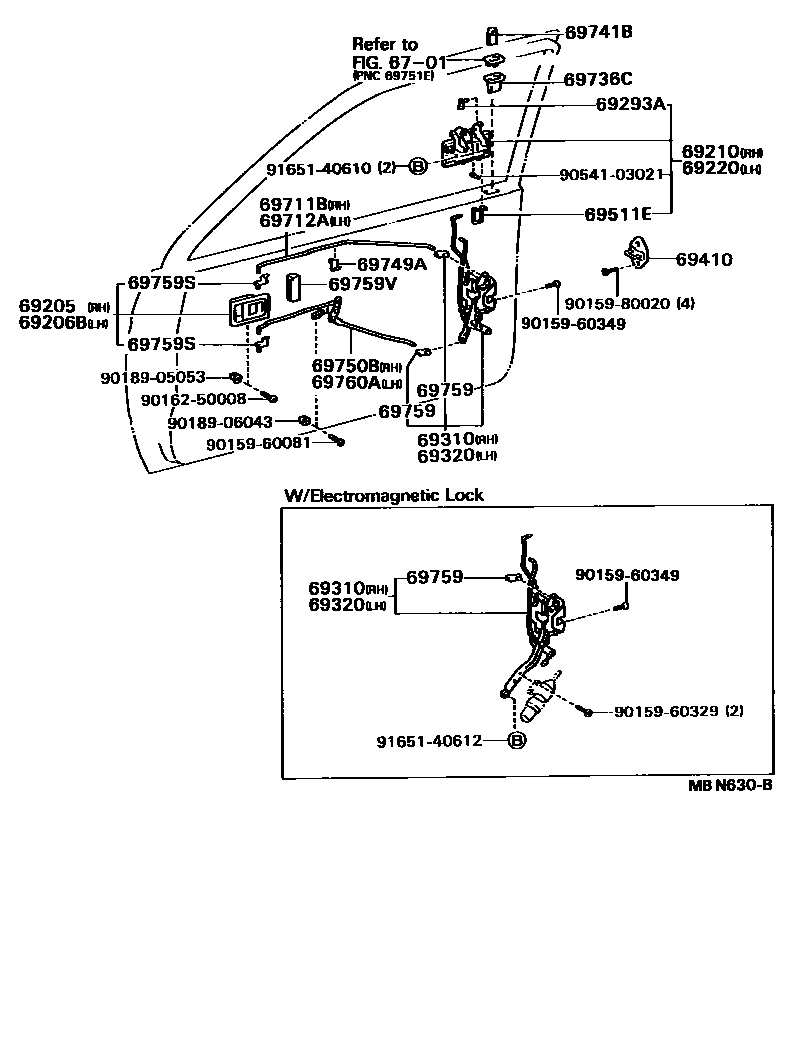

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69210 | Right front door outer handle assembly | 69210-16060 |
| 69220 | Left front door outer handle assembly | 69220-16060 |
| 69293A | Front door outer handle buckle | 69293-12030 · 69293-12040 |
| 69310 | Right front door lock assembly | 69310-16100 · 69310-16130 · 69310-16150 · 69310-16160 |
| 69320 | Left front door lock assembly | 69320-16100 · 69320-16130 · 69320-16150 · 69320-16160 |
| 69410 | Front door lock plate assembly | 69410-12050 · 69410-87001 |
| 69511E | Front door lock cylinder fixing parts | 69511-20010 |
| 69711B | Right front door lock remote control lever | 69711-16050 · 69711-16060 |
| 69712A | Left front door lock remote control lever | 69712-16050 · 69712-16060 |
| 69736C | Front door locking link guide block | 69736-12030 · 69736-20090 |
| 69749A | Front door lock No. 1 link clamp | 69749-20010 |
| 69750B | Right front door inner locking link assembly | 69750-16010 |
| 69759 | Rear door lock No. 1 control link buckle | 69759-20040 · 69759-20050 · 69759-20080 · 69759-20090 · 69759-20100 · 69759-20110 |
| 69759S | Front door inner handle buckle | 69759-20060 · 69759-20070 · 69759-22040 · 69759-22050 |
| 69759V | Front door lock link silencer | 69759-14030 |
| 69760A | Left front door inner locking link assembly | 69760-16010 |
