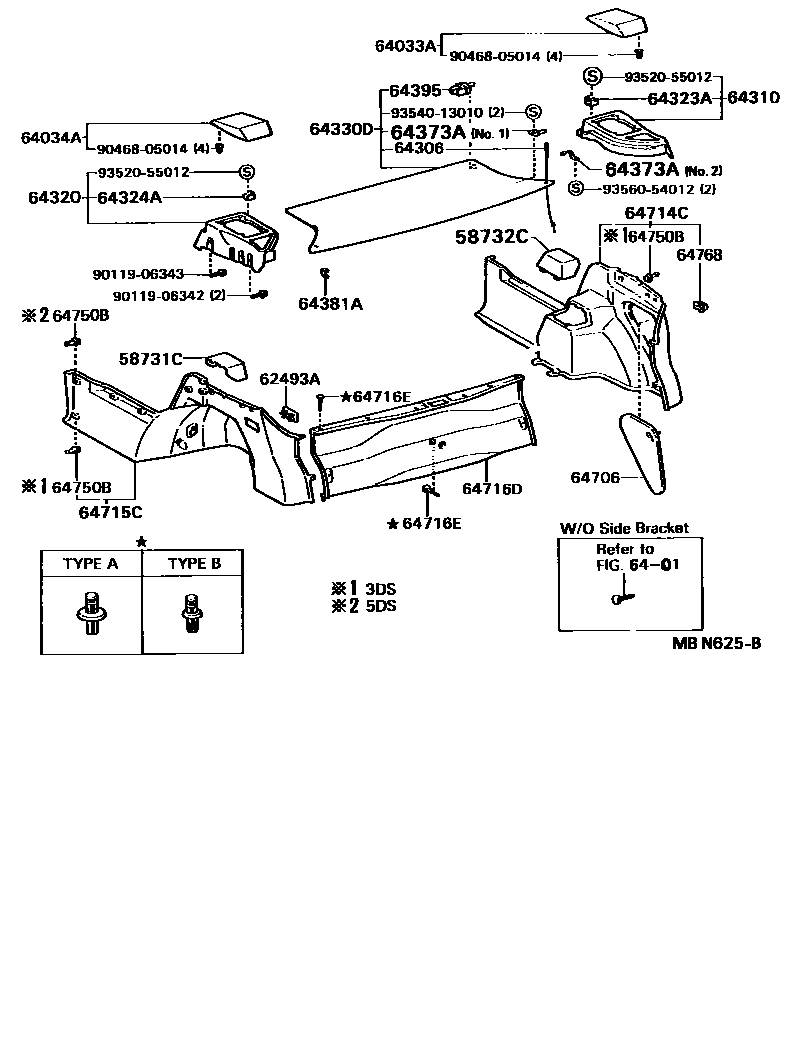

Toyota COROLLA 底板和底板装饰罩 — Figure 6404
Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64306-12030 |
| 64323A | Glove box decorative panel right clip | 64323-10010 |
| 64324A | Glove box decorative panel left clip | 64324-10010 |
| 64373A | Glove box decorative panel stopper | 64373-16030 · 64373-16040 · 64373-16050 · 64379-16010 |
| 64381A | Glove box decorative panel hanger | 64381-10010 |
| 64395 | Glove box trim panel hinge pin | 64395-12020 |
| 64750B | Fixings (for floor side decorative panels) | 67771-14040 |
| 64768 | Jack cover stop | 64768-16010 |
