Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 2 PNC and OE references.

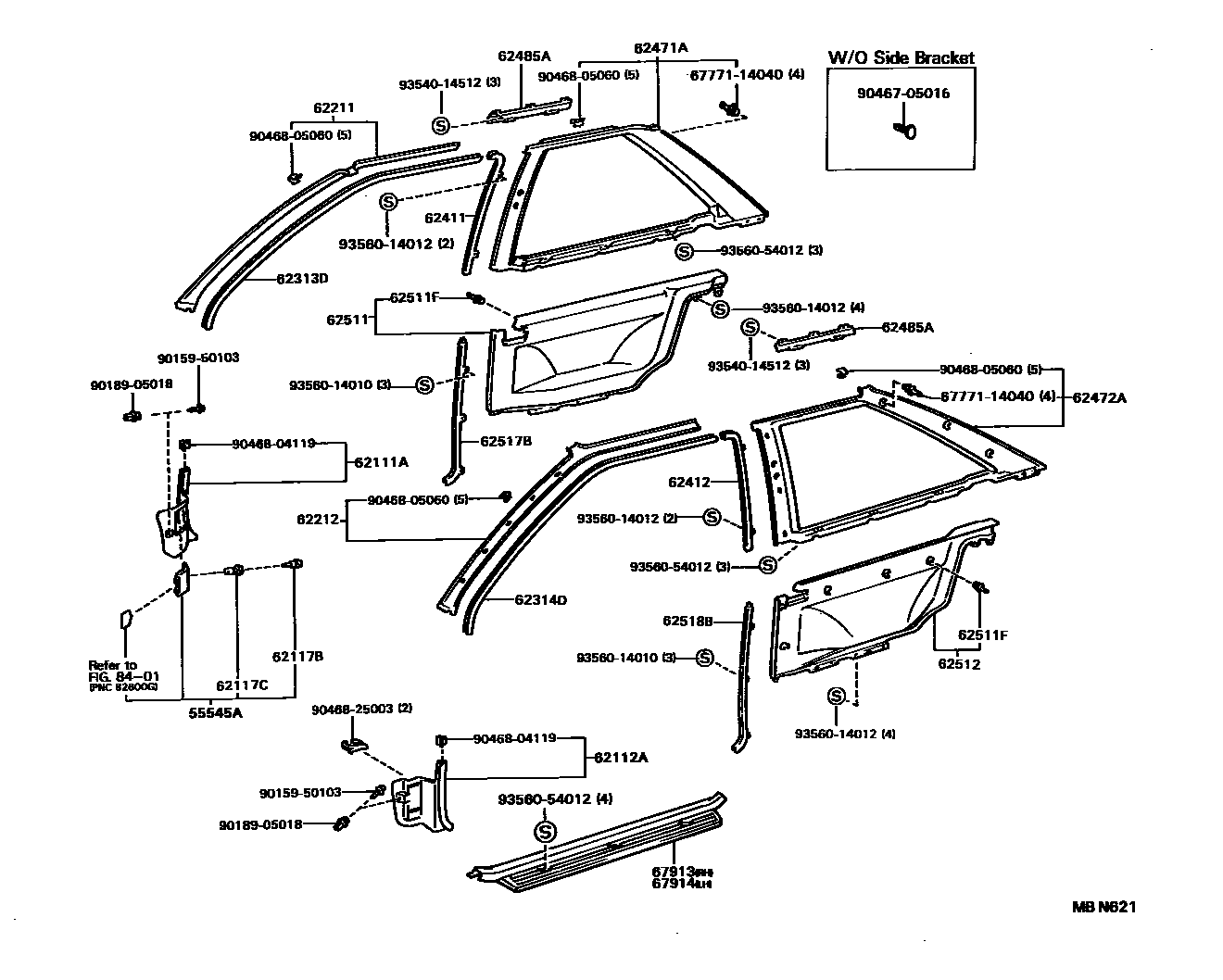

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — MBN621
内饰板和车门防水胶条 — MBN621 (198805 – 999999)

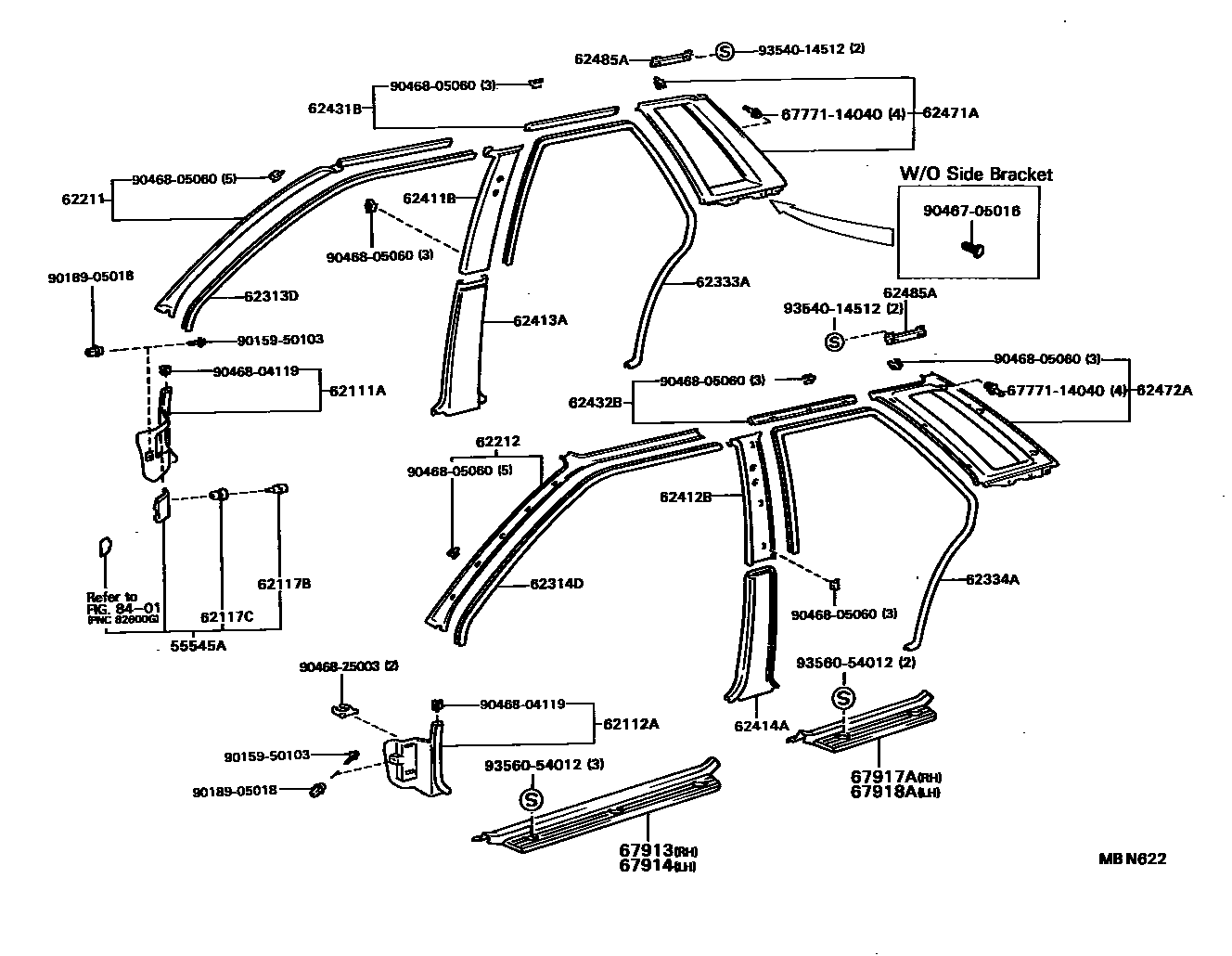

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — MBN622
内饰板和车门防水胶条 — MBN622 (198805 – 999999)

PNC and OE references

PNCPart nameOE numbers
62485ARoof side interior panel fixings62485-16010 · 62485-16020
62511FFixings (for inner decorative panels on side panels)67771-32010
