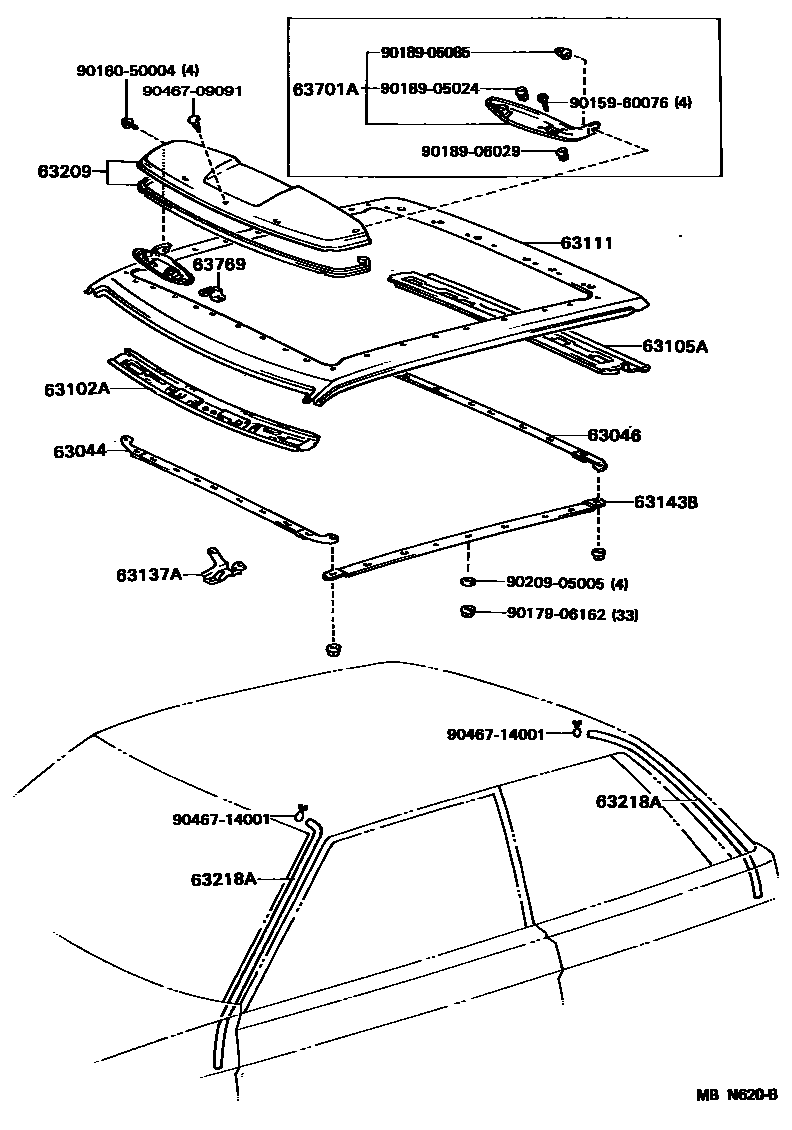

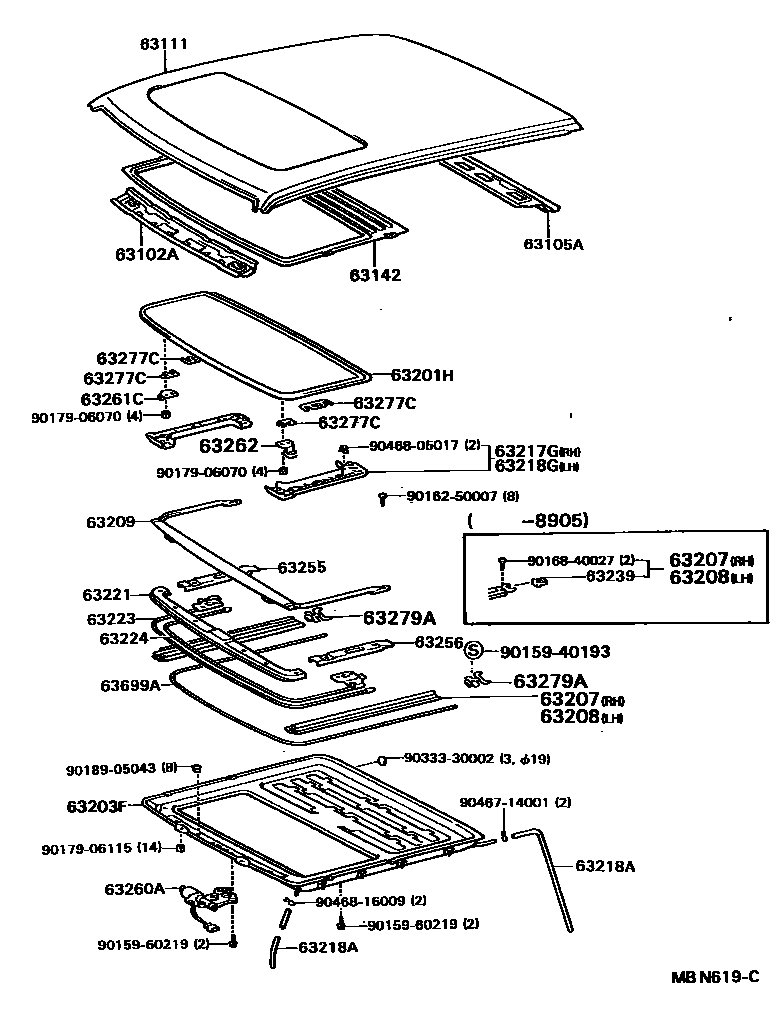

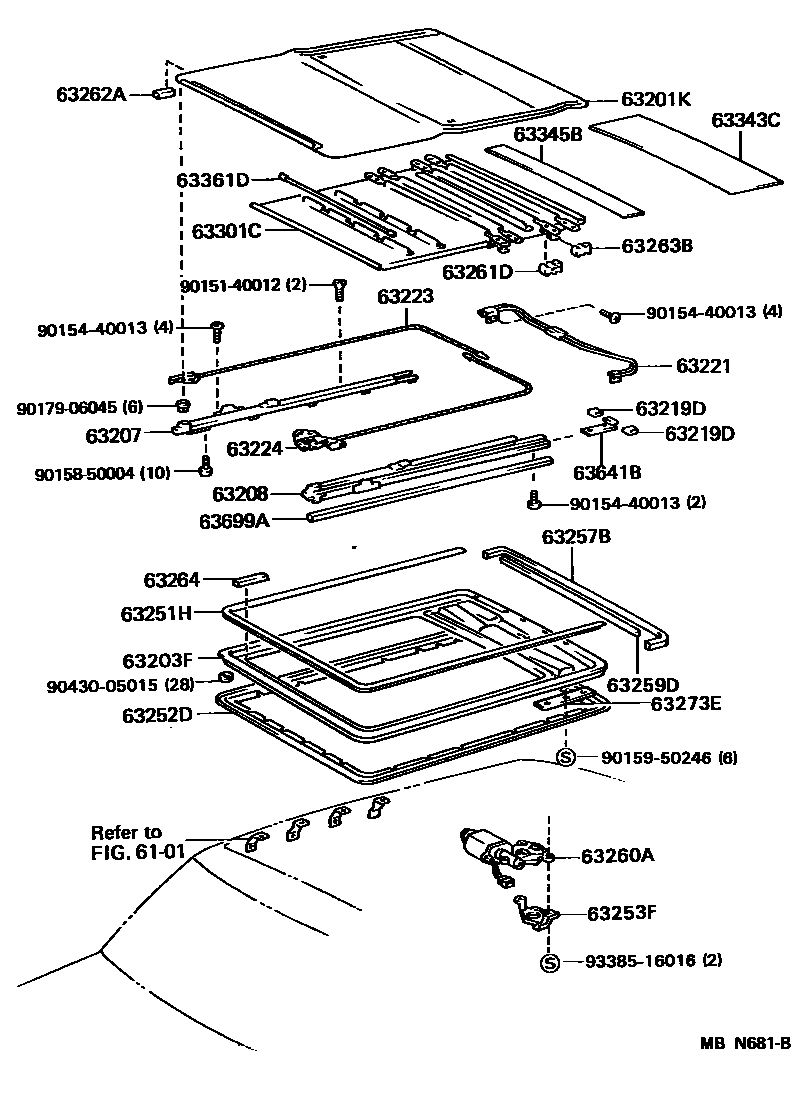

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 4 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63044 | No. 2 roof panel reinforcement sub-assembly | 63044-16010 |
| 63046 | No. 4 roof panel reinforcement sub-assembly | 63046-16010 |
| 63102A | Windshield roof sub-assembly | 63102-16020 |
| 63105A | Back door opening frame sub-assembly | 63105-16050 · 63105-16060 |
| 63111 | roof panel | 63111-16130 · 63111-16140 · 63111-16150 · 63111-16170 |
| 63126A | Windshield roof shock absorber | 63126-16010 |
| 63137A | No. 1 ceiling light bracket | 63137-16030 |
| 63141H | Center roof panel reinforcement | 63141-16040 · 63141-16050 |
| 63142 | No. 2 roof panel reinforcement | 63142-16020 |
| 63143B | No. 3 roof panel reinforcement | 63143-16010 · 63143-16020 |
| 63201H | Sliding sunroof panel sub-assembly | 63201-16030 |
| 63201K | Sliding sunroof hood sub-assembly | 63201-16040 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-10030 · 63203-16040 |
| 63207 | Right sliding sunroof guide rail sub-assembly | 63207-10020 · 63207-16020 · 63207-16021 |
| 63208 | Left sliding sunroof guide rail sub-assembly | 63208-10020 · 63208-16020 · 63208-16021 |
| 63209 | Roof deflector sub-assembly | 63209-16020 · 63209-16030 |
| 63217G | Right sliding sunroof trim | 63217-16010 |
| 63218A | Hoses (for sliding or removable sunroof drainage) | 63249-10010 · 63249-16060 · 63249-16070 · 63249-16080 |
| 63218G | Sliding sunroof trim, left | 63218-16010 |
| 63219D | Sliding sunroof guide cushion | 63219-10020 |
| 63221 | Sliding sunroof cable duct | 63209-10030 · 63221-16020 |
| 63223 | Right sliding sunroof transmission cable | 63205-10020 · 63223-24010 |
| 63224 | Left sliding sunroof transmission cable | 63206-10010 · 63224-24010 |
| 63239 | Sliding roof panel stop | 63239-24010 |
| 63251H | Sliding skylight seal | 63251-10030 |
| 63252D | Sliding skylight frame sealing strip | 63252-10020 |
| 63253F | Sliding sunroof motor cover bracket | 63253-16010 |
| 63255 | Right sliding sunroof guide cover | 63255-16010 |
| 63256 | Left sliding sunroof guide cover | 63255-16010 |
| 63257B | Sliding sunroof seal | 63257-10010 |
| 63259D | Sliding sunroof seal No. 2 | 63259-10020 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12040 · 63260-16010 |
| 63261C | Right front sliding sunroof slider | 63261-16020 · 63261-16021 |
| 63261D | Sliding skylight slider | 63261-10020 |
| 63262 | Left front sliding sunroof slider | 63262-16020 · 63262-16021 |
| 63262A | No. 1 front sliding sunroof seal | 63262-10010 |
| 63263B | Sliding skylight slider | 63263-10010 |
| 63264 | No. 3 front sliding sunroof seal | 63264-10020 |
| 63273E | Pad No. 2 | 63273-10010 |
| 63277C | Sliding skylight panel gasket | 63277-24010 · 63277-30020 |
| 63279A | No. 3 skylight frame to longitudinal beam bracket | 63279-32010 |
| 63301C | Roof reinforcement sub-assembly | 63301-16010 |
| 63343C | Rear roof silencer pad | 63343-10010 |
| 63345B | Center roof muffler pad | 63345-10010 |
| 63361D | Sliding headliner bracket | 63361-10080 |
| 63641B | Sliding sunroof guide rail stop | 63641-10010 |
| 63699A | Sliding sunroof guide seals | 63699-10010 · 63699-12040 |
| 63701A | Front roof air deflector bracket sub-assembly | 63701-16010 · 63702-16010 |
| 63769 | Roof air deflector clip bracket | 63769-16010 |
