Toyota COROLLA 仪表板和手套箱 — Figure 5501

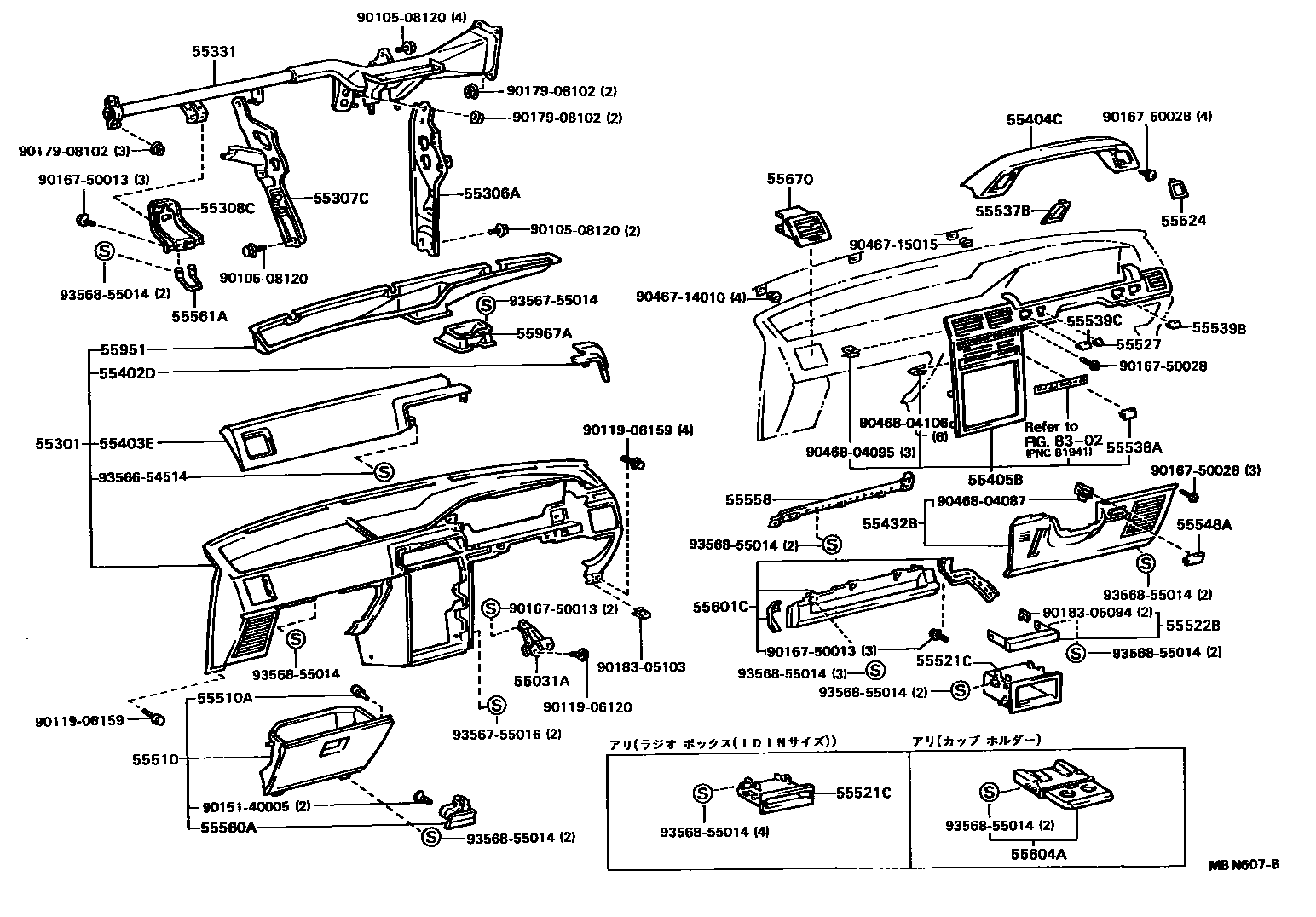

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55031A | Instrument panel No. 1 stay sub-assembly | 55031-16010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-16050 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-16050 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-16010 |
| 55331 | Dashboard reinforcement | 55330-16030 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-16052 · 55405-16092 |
| 55510A | Cushion (for glovebox lid) | 90541-03015 |
| 55521C | stereo system hole cover | 55521-16030 · 55521-16040 |
| 55522B | Radio tuner opening cover | 55522-16030 |
| 55524 | Switch base hole cover | 55524-16030 |
| 55527 | Transmission control switch hole cover | 55527-16010 · 55527-16020 |
| 55537B | Rear defogger switch hole cover | 55537-16020 |
| 55538A | Cooler switch hole cover | 55538-16020 |
| 55539B | No. 2 spare switch hole cover | 55539-16030 · 55539-32010 |
| 55539C | Spare switch hole cover | 55539-32010 |
| 55558 | Glove box cover reinforcement | 55558-16040 |
| 55561A | Glove box lid lock | 55561-12040 |
| 55604A | Dashboard cup holder sub-assembly | 55604-19015 |
| 55951 | front defroster nozzle | 55951-16060 |
| 55967A | Lower defroster nozzle | 55967-16020 |
