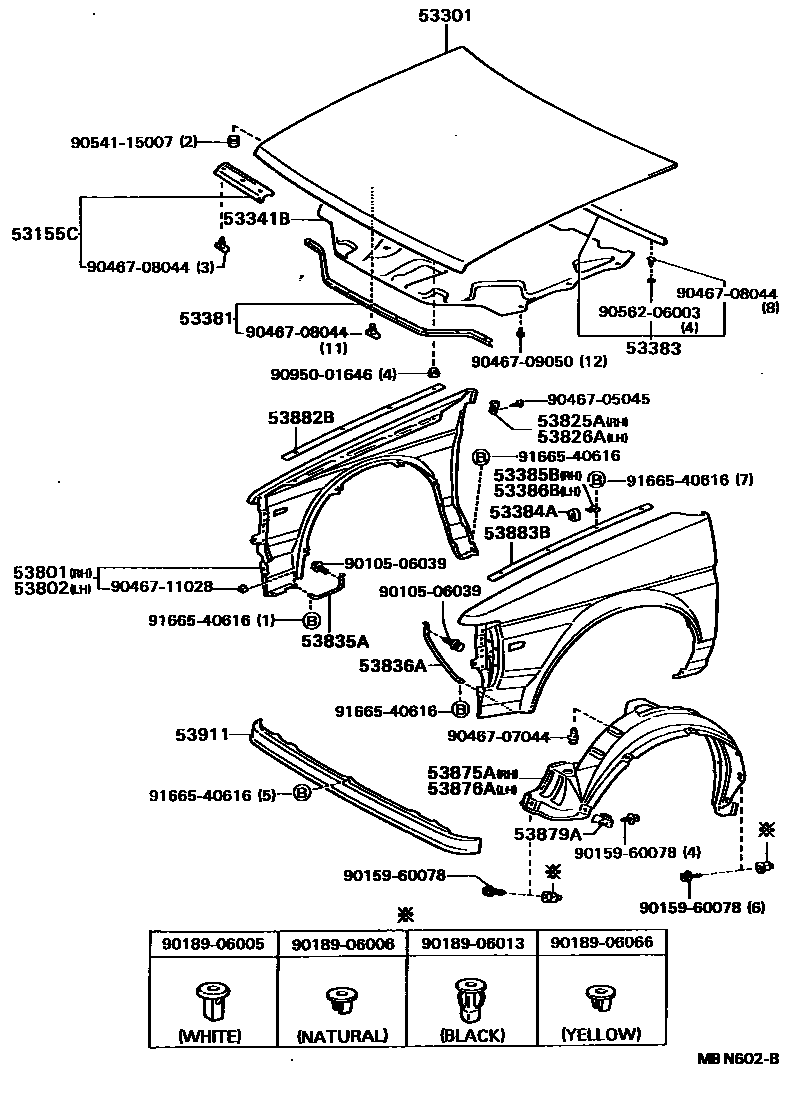

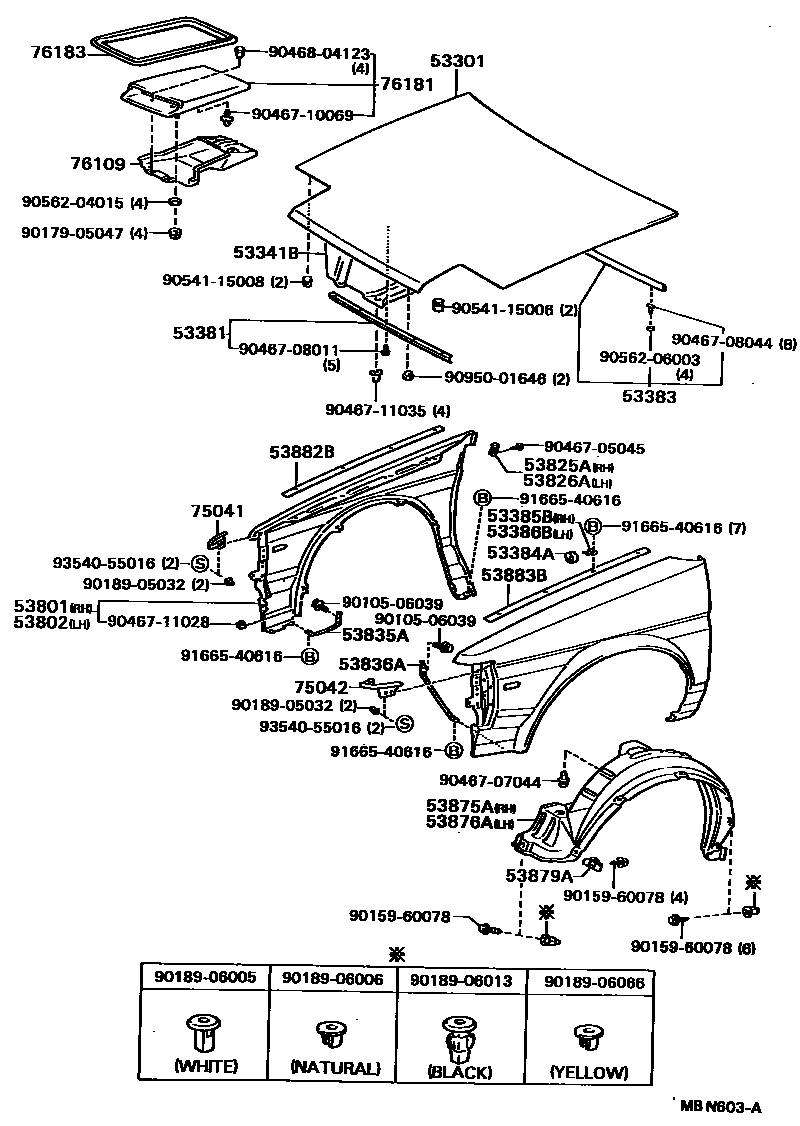

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53155C | Radiator grille seal No. 1 | 53155-16030 |
| 53301 | Engine cover sub-assembly | 53301-16051 · 53301-16061 · 53301-16081 |
| 53341B | engine cover gasket | 53341-16010 · 53341-16020 |
| 53381 | Engine cover to radiator bracket seal | 53381-16030 · 53381-16040 |
| 53383 | Engine cover to cowl upper cover seal | 53383-16030 |
| 53384A | fender to engine cover buffer block | 53384-16030 |
| 53385B | Right side bracket (fender to engine cover bumper) | 53385-14010 |
| 53386B | Left side bracket (fender to engine cover bumper) | 53386-14010 |
| 53801 | Right front fender sub-assembly | 53801-16270 · 53801-16280 |
| 53802 | Left front fender sub-assembly | 53802-16190 · 53802-16280 |
| 53825A | Right front fender protection piece | 53825-16010 |
| 53826A | Protection piece on left front fender | 53826-16010 |
| 53835A | Right front fender to fender stay | 53835-16020 |
| 53836A | Left front fender to fender stay | 53836-16020 |
| 53875A | Right front fender lining | 53875-16030 |
| 53876A | Left front fender lining | 53876-16030 |
| 53879A | Front fender lining fixing parts | 53879-14010 |
| 53882B | Right front fender seal | 53882-10050 |
| 53883B | Left front fender seal | 53882-10050 |
| 53911 | front fender | 53901-16050 |
| 75041 | Right front fender decorative panel sub-assembly | 75041-16010 |
| 75042 | Left front fender decorative panel sub-assembly | 75042-16010 |
| 76109 | Engine cover air intake duct sub-assembly | 76109-16010 |
| 76181 | hood bulge | 76181-16010 |
| 76183 | Engine cover bump protector No. 1 | 76183-16010 |
