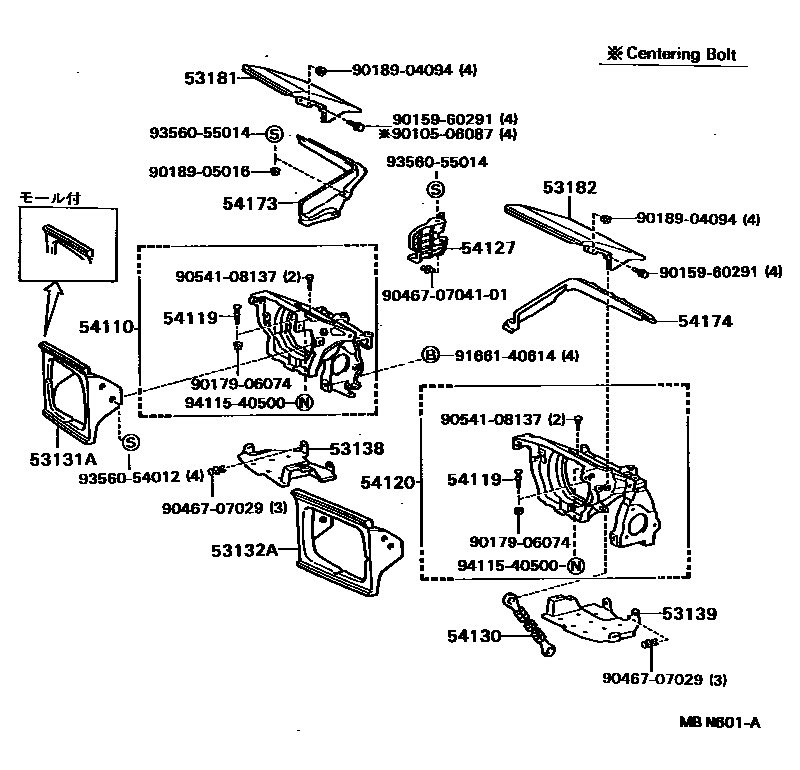

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53131A | Right headlight lampshade | 53031-16090 |
| 53132A | Left headlight lampshade | 53032-16090 |
| 53138 | Right headlight guard | 53138-16020 |
| 53139 | Left headlight guard | 53139-16020 |
| 53181 | Right headlight cover | 53181-16010 |
| 53182 | Left headlight cover | 53182-16010 |
| 54110 | Right telescopic headlight bracket assembly | 54110-16011 |
| 54119 | Retractable headlight linkage stop | 54119-14010 |
| 54120 | Left telescopic headlight bracket assembly | 54120-16010 |
| 54127 | No. 2 right retractable headlight protector | 54127-16010 |
| 54130 | Telescopic headlight pole assembly | 54130-16010 |
| 54173 | Retractable headlight guard, right | 54173-16010 |
| 54174 | Retractable headlight guard, left | 54174-16010 |
