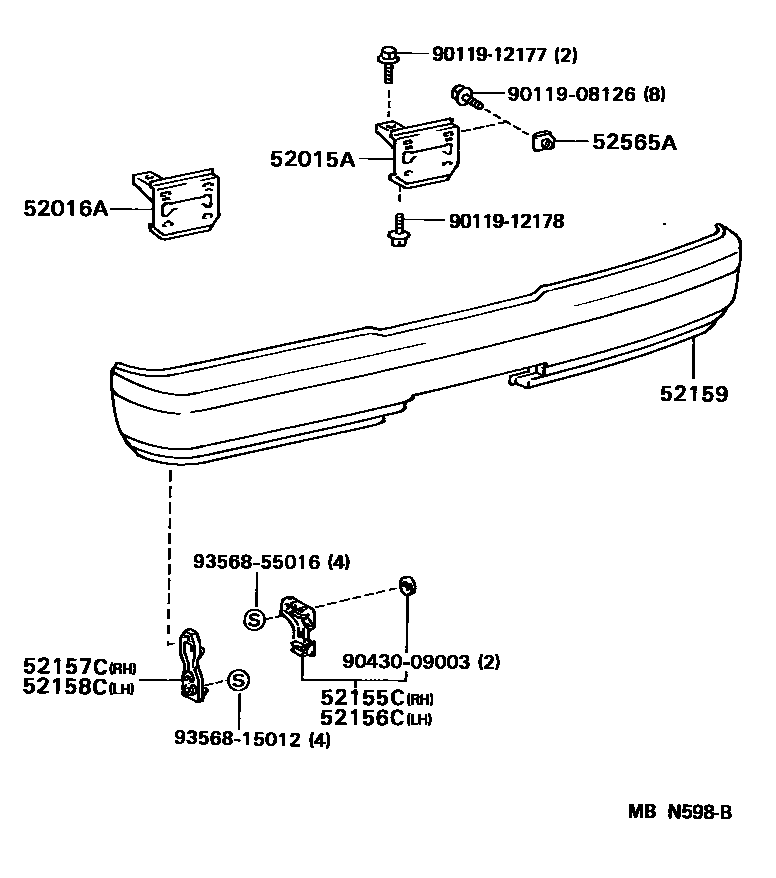

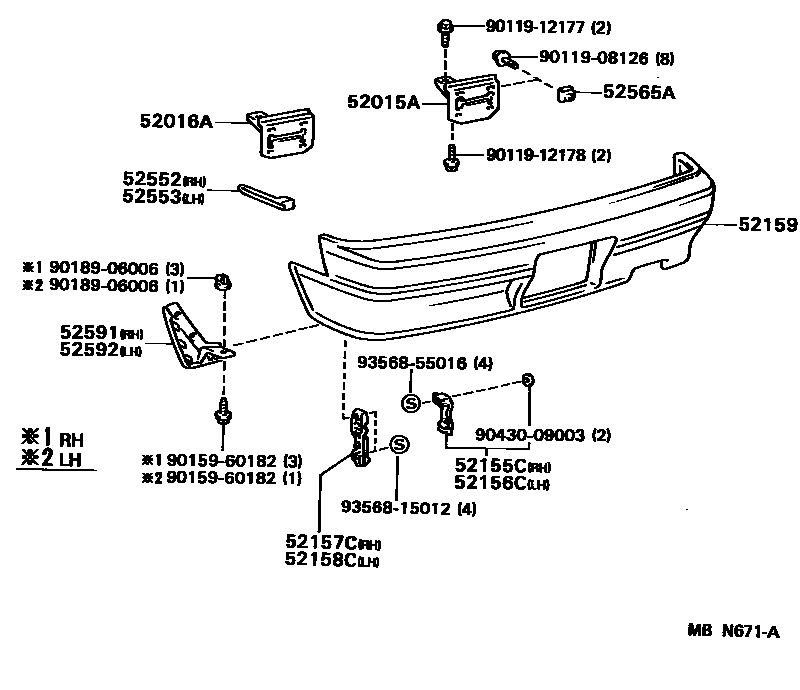

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-16160 |
| 52016A | Rear bumper left arm sub-assembly | 52016-16140 |
| 52155C | Rear bumper No. 1 right side bracket | 52155-16110 |
| 52156C | Rear bumper No. 1 left side bracket | 52156-16100 |
| 52157C | Rear bumper No. 2 right side bracket | 52157-16090 |
| 52158C | Rear bumper No. 2 left side bracket | 52157-16090 |
| 52159 | rear bumper cover | 52159-16260 |
| 52552 | Arc filler on the right side of the rear bumper | 52552-16010 |
| 52553 | Rear bumper left curved filler | 52553-16010 |
| 52565A | Rear bumper lower fixing bracket | 52565-16020 |
| 52591 | Rear bumper right seal | 52591-16050 |
| 52592 | Rear bumper left seal | 52592-16040 |
