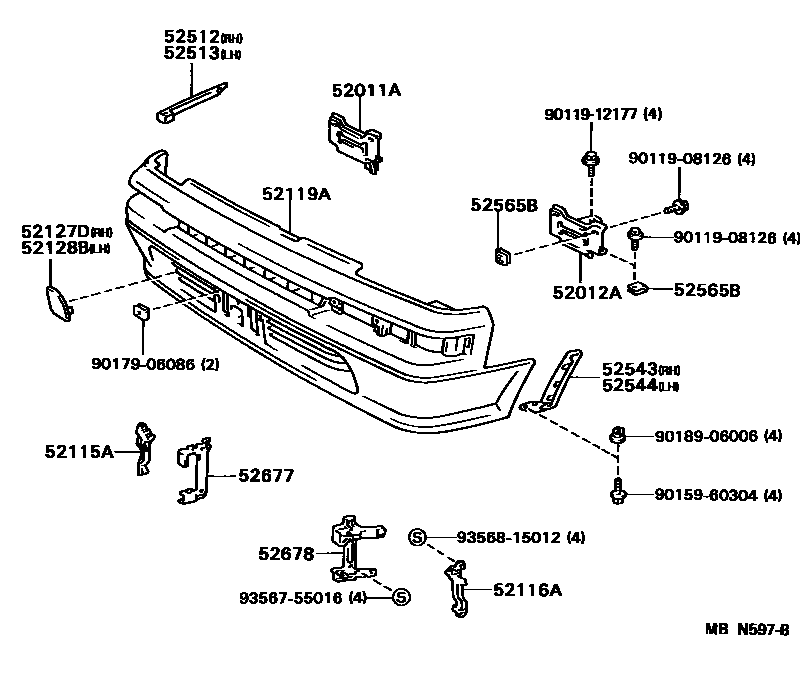

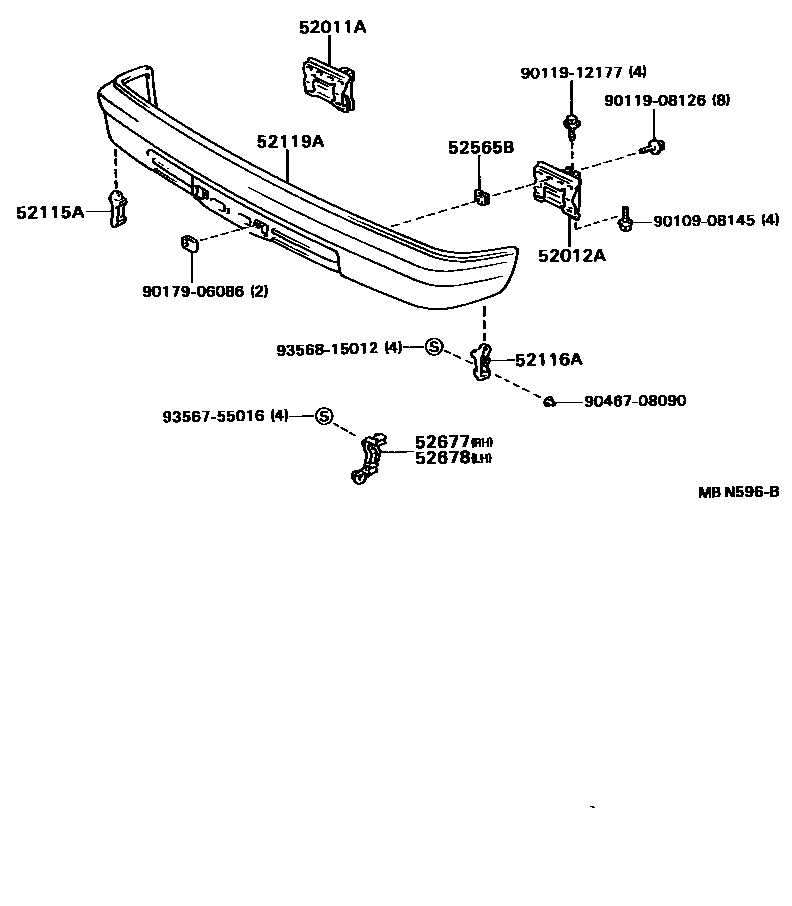

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52011A | Front bumper right arm sub-assembly | 52011-16110 · 52011-16120 |
| 52012A | Front bumper left arm sub-assembly | 52012-16100 · 52012-16110 |
| 52115A | Front bumper right side bracket | 52115-16100 · 52115-16110 |
| 52116A | Front bumper left bracket | 52115-16100 · 52115-16110 |
| 52119A | front bumper cover | 52119-16240 |
| 52127D | Front bumper right hole cover | 52127-16060 |
| 52128B | Front bumper left hole cover | 52128-16020 |
| 52512 | Front bumper right curved filler | 52512-16010 |
| 52513 | Front bumper left curved filler | 52513-16010 |
| 52543 | Front bumper right seal | 52543-16010 |
| 52544 | Front bumper left seal | 52544-16010 |
| 52565B | Rear bumper lower fixing bracket | 52565-16020 |
| 52677 | Front bumper No. 2 right side bracket | 52677-16040 · 52677-16050 |
| 52678 | Front bumper No. 2 left side bracket | 52677-16050 · 52678-16040 |
