Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

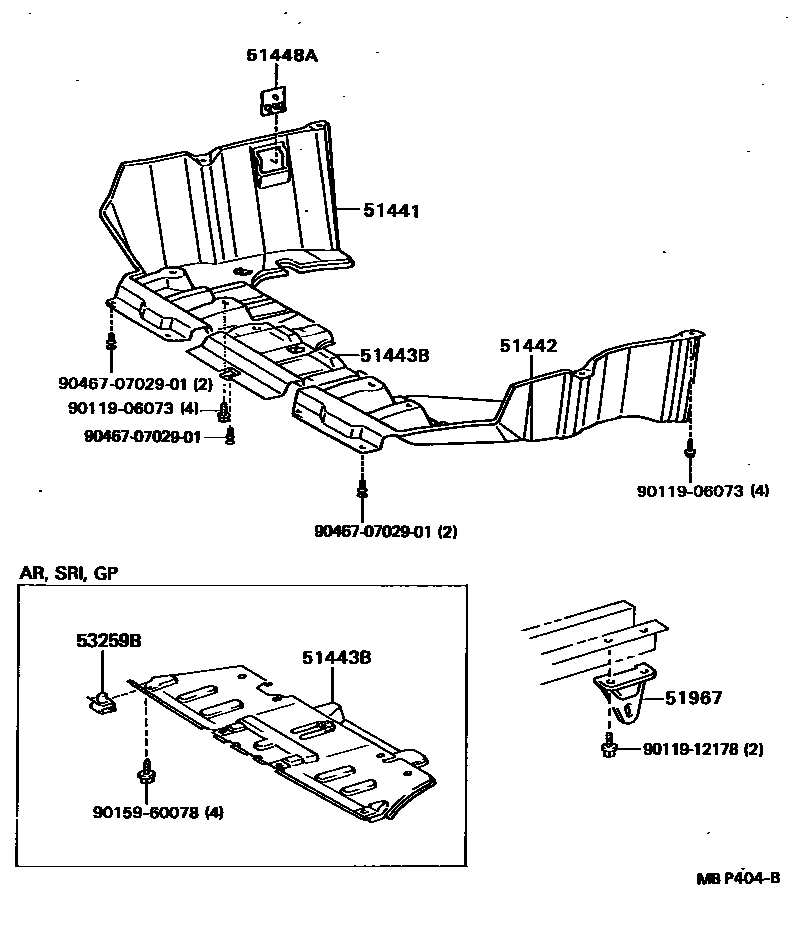

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51441 | No. 1 engine bottom cover | 51441-10090 · 51441-16030 |
| 51442 | No. 2 engine bottom cover | 51442-10070 · 51442-10080 · 51442-16020 · 51442-16030 |
| 51443B | No. 3 engine bottom cover | 51443-16020 · 51443-16040 |
| 51448A | Engine right bottom cover | 51448-20010 |
| 51967 | Rear transport hook | 51968-16080 · 51968-16090 |
| 53259B | Clip (for engine cover) | 53259-16010 |
