Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804

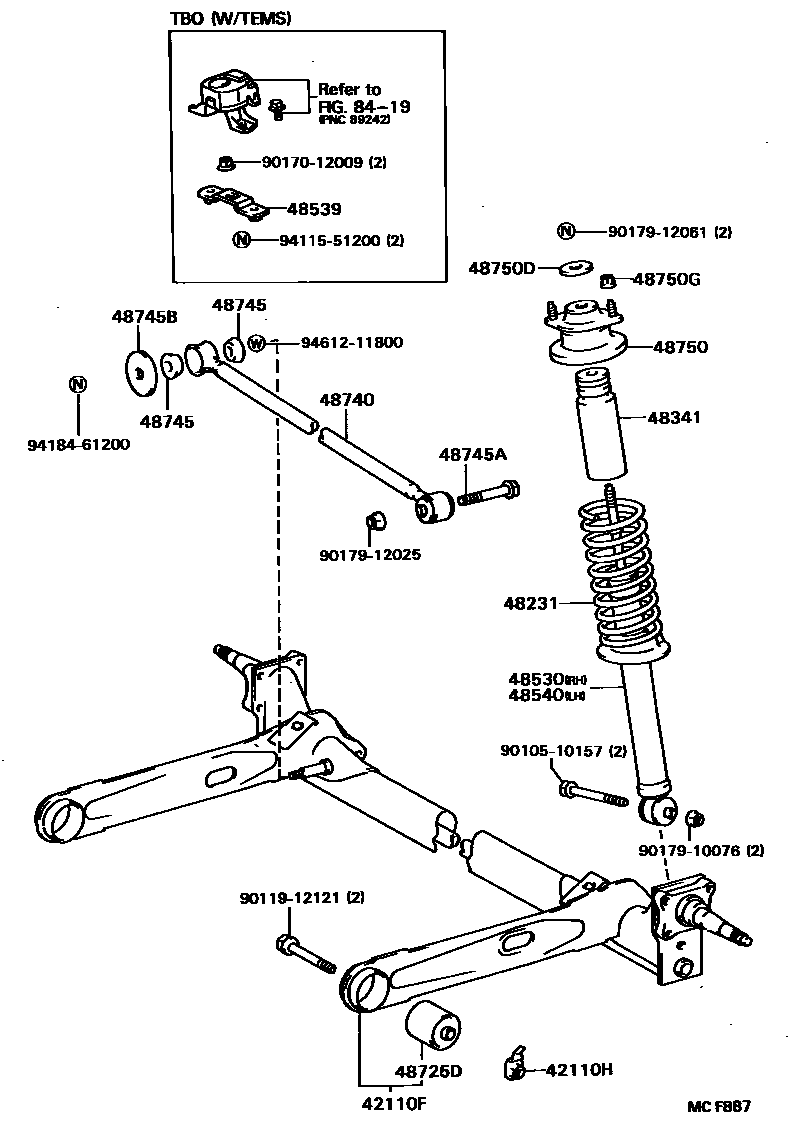

Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42110-16030 · 42110-16040 · 42110-16041 · 42110-16042 · 42110-16050 · 42110-16051 · 42110-16060 · 42110-16061 |
| 42110H | Nut (for rear axle) | 90179-12041 |
| 48231 | rear coil spring | 48231-16310 · 48231-16341 · 48231-16361 |
| 48341 | Rear spring buffer block | 48341-16040 |
| 48530 | Right rear shock absorber assembly | 48530-16081 · 48530-16111 · 48530-16140 |
| 48539 | Rear actuator bracket | 48539-16010 |
| 48540 | Left rear shock absorber assembly | 48530-16081 · 48530-16111 · 48530-16140 |
| 48725D | Rear suspension No. 3 arm bushing | 48725-16110 |
| 48740 | Rear transverse control rod assembly | 48740-16010 · 48740-16020 |
| 48745 | Lateral control rod bushing | 90385-18010 |
| 48745A | Hexagonal bolt (for lateral control lever) | 90105-12070 |
| 48745B | Lateral control lever bumper washer | 90201-12047 |
| 48750 | Rear suspension support assembly | 48750-16040 |
| 48750D | Block (for rear mount to rear shock absorber) | 90948-02100 · 90948-02107 |
| 48750G | Nut (for rear suspension mount) | 90179-08111 |
