Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

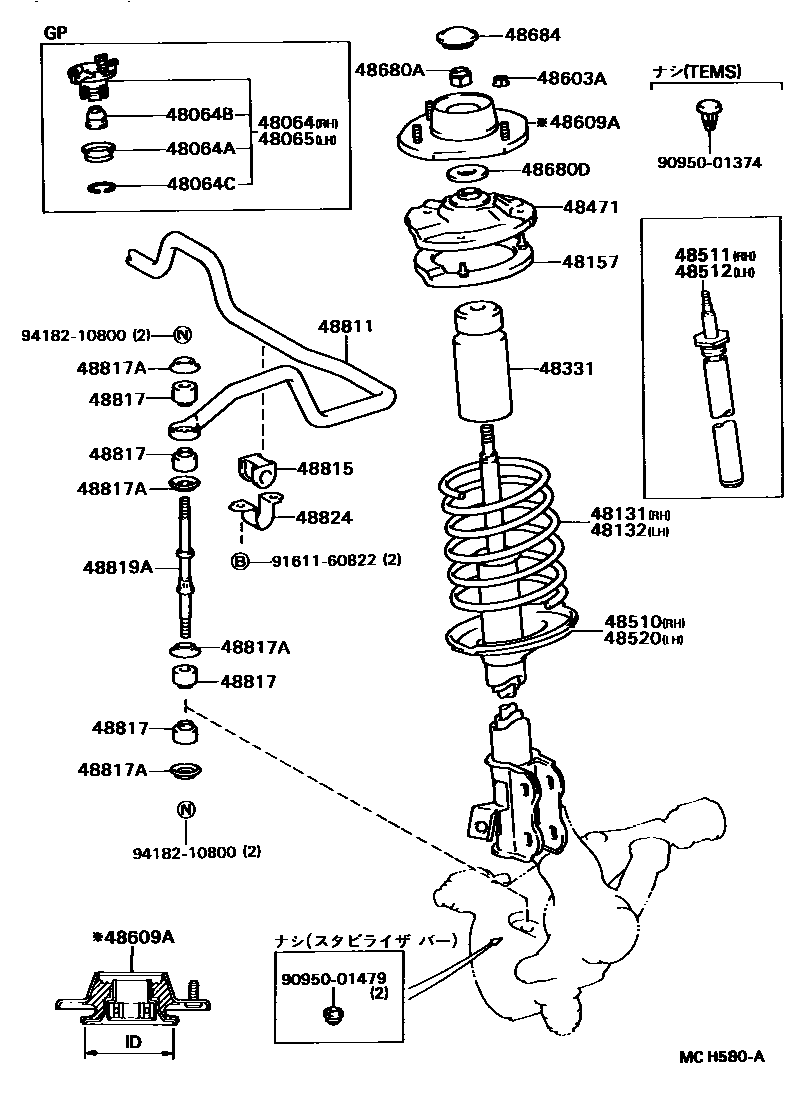

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48064 | Right front suspension support cover sub-assembly | 48064-16020 |
| 48064A | Dust seal (for front suspension mount cover) | 90304-26001 |
| 48064B | Seal (for front suspension mount cover) | 90480-13019 |
| 48064C | Retaining ring (for front suspension mount cover) | 90522-24001 |
| 48065 | Left front suspension support cover sub-assembly | 48065-16020 |
| 48131 | Right front coil spring | 48131-16361 · 48131-16381 · 48131-16411 · 48131-16441 · 48131-16471 · 48131-16501 · 48131-16541 · 48131-16561 · 48131-16581 · 48131-16601 |
| 48132 | Left front coil spring | 48131-16361 · 48131-16381 · 48131-16411 · 48131-16441 · 48131-16471 · 48131-16501 · 48131-16541 · 48131-16561 · 48131-16581 · 48131-16601 |
| 48157 | Front coil spring upper vibration isolation pad | 48157-16030 |
| 48331 | No. 1 front spring buffer block | 48331-10070 · 48331-16050 |
| 48471 | Front spring seat | 48044-10020 |
| 48510 | Right front shock absorber assembly | 48510-16171 · 48510-16281 |
| 48511 | Right front shock absorber (for adhesive cartridge type) | 48511-16010 · 48511-16020 |
| 48512 | Left front shock absorber (for adhesive cartridge type) | 48511-16010 · 48511-16020 |
| 48520 | Left front shock absorber assembly | 48520-16011 · 48520-16061 |
| 48603A | Nut (for front suspension mount) | 90179-08090 |
| 48609A | Front suspension support sub-assembly | 48609-16060 · 48609-16090 · 48609-16100 · 48609-16110 · 48609-16120 |
| 48680A | Nut (for front mount to front shock absorber) | 90179-14029 · 94182-11400 |
| 48680D | Dust seal (for front suspension mount) | 90303-22049 |
| 48684 | Bearing dust cover | 48684-10010 |
| 48811 | front stabilizer bar | 48811-16150 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-14130 |
| 48817 | Front stabilizer bar cushion | 48817-30020 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02032 |
| 48819A | front stabilizer bar bolt | 48819-20030 |
| 48824 | front stabilizer bar bracket | 48824-20040 |
