Toyota COROLLA 制动配管和卡箍 — Figure 4708

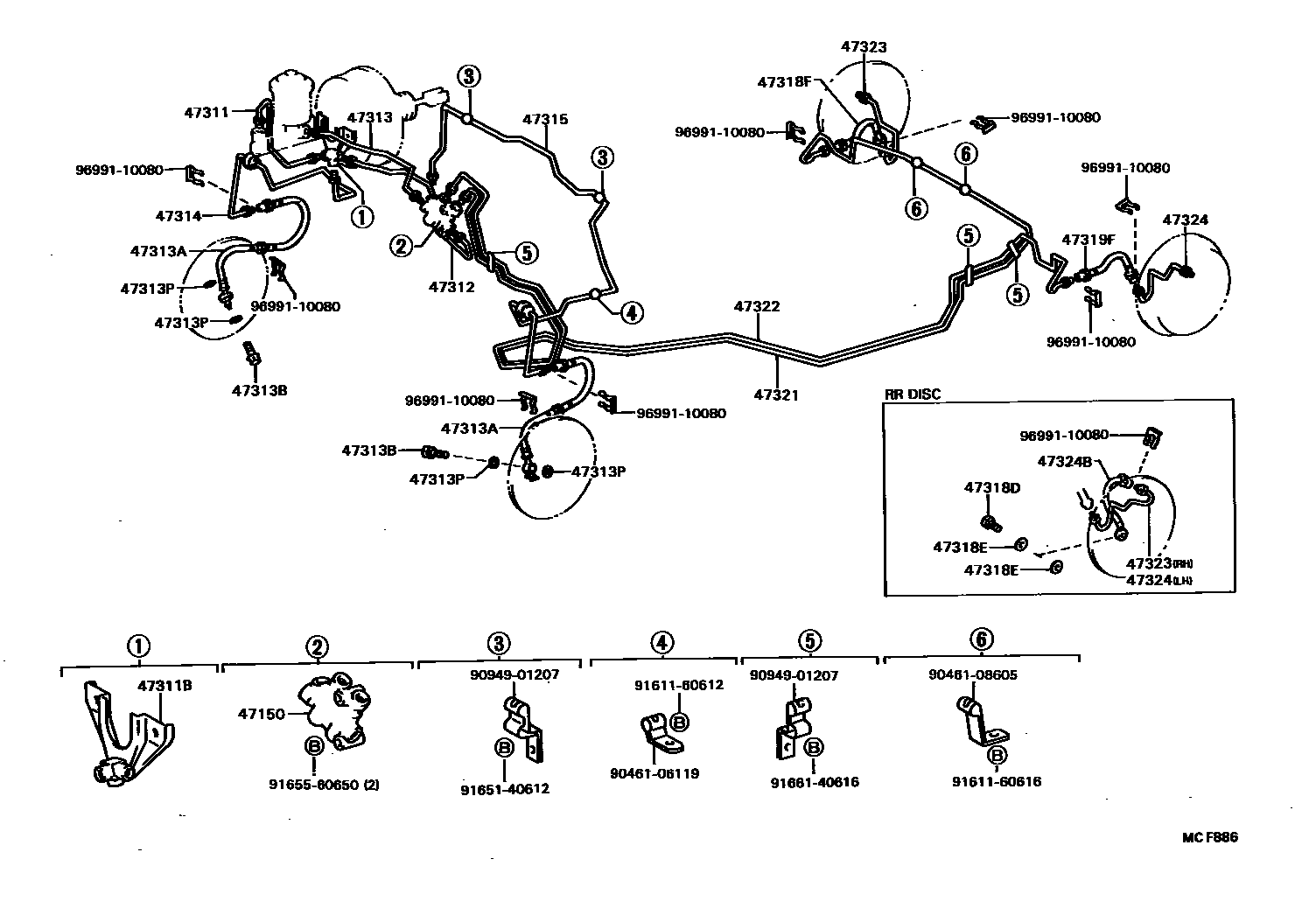

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47150 | Proportional valve assembly | 47150-16070 |
| 47311 | No. 1 front brake pipe | 47311-16090 · 47311-16100 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90413-10171 · 90413-10224 |
| 47312 | No. 2 front brake pipe | 47312-16070 |
| 47313 | No. 3 front brake pipe | 47313-16080 · 47313-16100 |
| 47313A | No. 1 front flexible hose | 90947-02508 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 |
| 47313P | Gasket (for front flex hose) | 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-16070 |
| 47315 | No. 5 front brake pipe | 47315-16050 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10015 |
| 47318E | Gasket (for rear flex hose) | 90430-10074 |
| 47318F | Right rear flexible hose | 90947-02509 |
| 47319F | Left rear flexible hose | 90947-02509 |
| 47321 | No. 1 rear brake pipe | 47321-16040 |
| 47322 | No. 2 rear brake pipe | 47322-16030 |
| 47323 | No. 3 rear brake pipe | 47323-16090 · 47323-16100 · 47323-16110 |
| 47324 | No. 4 rear brake pipe | 47324-16080 · 47324-16090 · 47324-16100 |
| 47324B | Flexible hose (for No. 2 rear brake pipe) | 90947-02510 |
