Toyota COROLLA 制动总泵 — Figure 4702

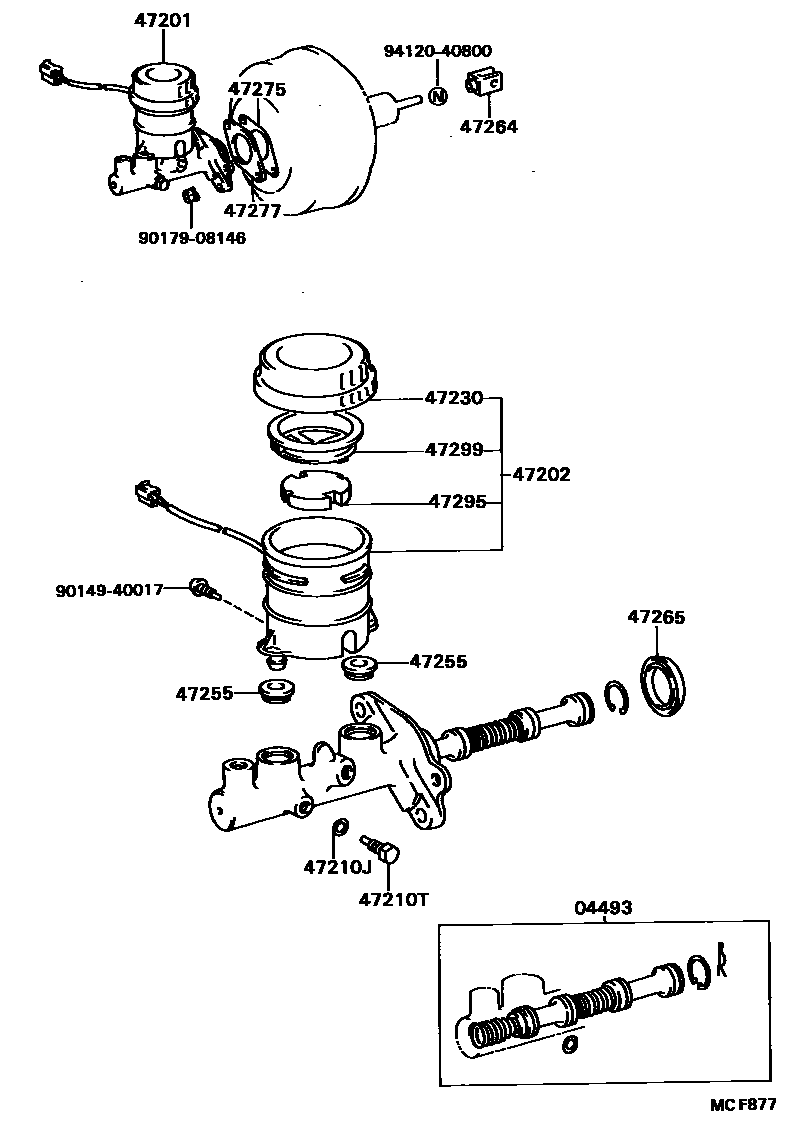

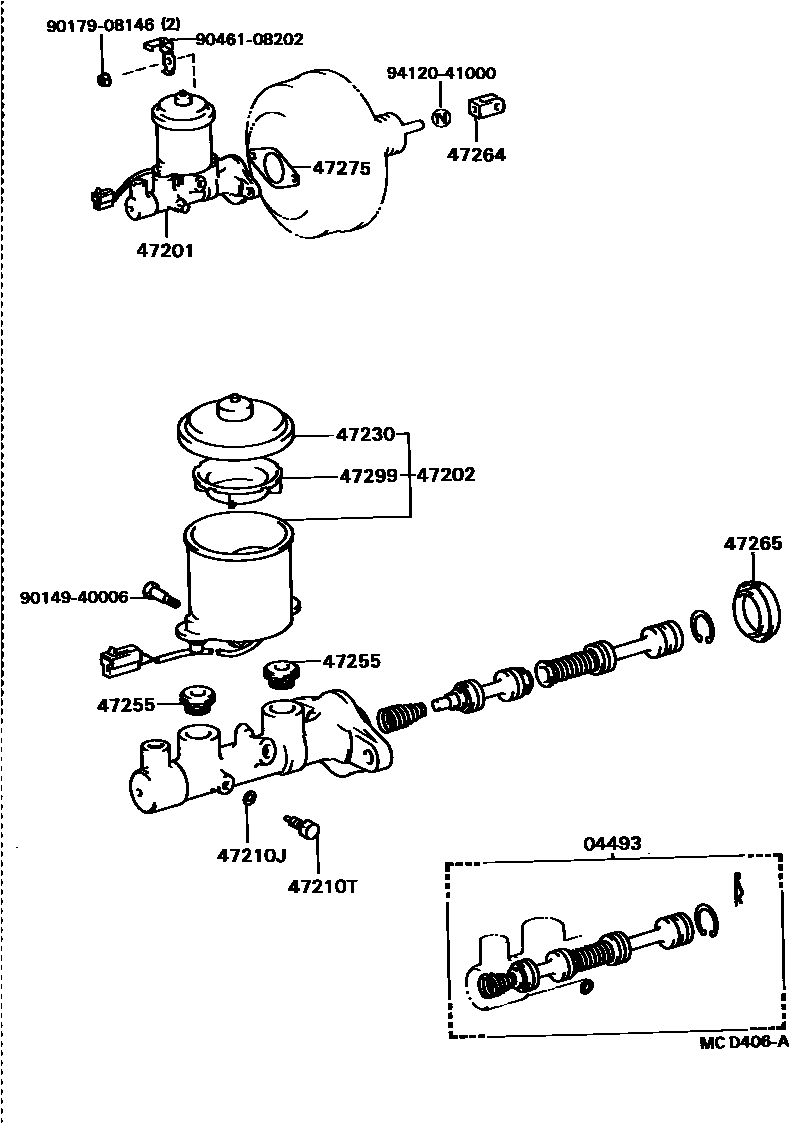

Toyota COROLLA EPC diagram 4702, 制动总泵, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-16030 · 04493-16060 · 04493-20140 |
| 47201 | Brake master cylinder sub-assembly | 47201-16120 · 47201-16150 · 47201-16160 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47202-16050 · 47220-16010 |
| 47210J | Gasket (for master cylinder) | 90430-06002 · 90430-06104 |
| 47210T | Bolt (for brake master cylinder) | 90109-06077 · 90109-06123 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-16010 · 47230-16020 |
| 47255 | Master pump reservoir seal | 47255-16010 · 47255-20010 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-16010 · 47264-20040 |
| 47265 | Master pump dust jacket | 47265-20050 · 47265-20080 |
| 47275 | brake master cylinder gasket | 47275-12010 · 47275-14010 |
| 47277 | master pump septum | 47277-16010 |
| 47295 | switch operated float | 47295-20040 |
| 47299 | Brake master cylinder reservoir filter | 47299-16010 · 47299-16020 |
