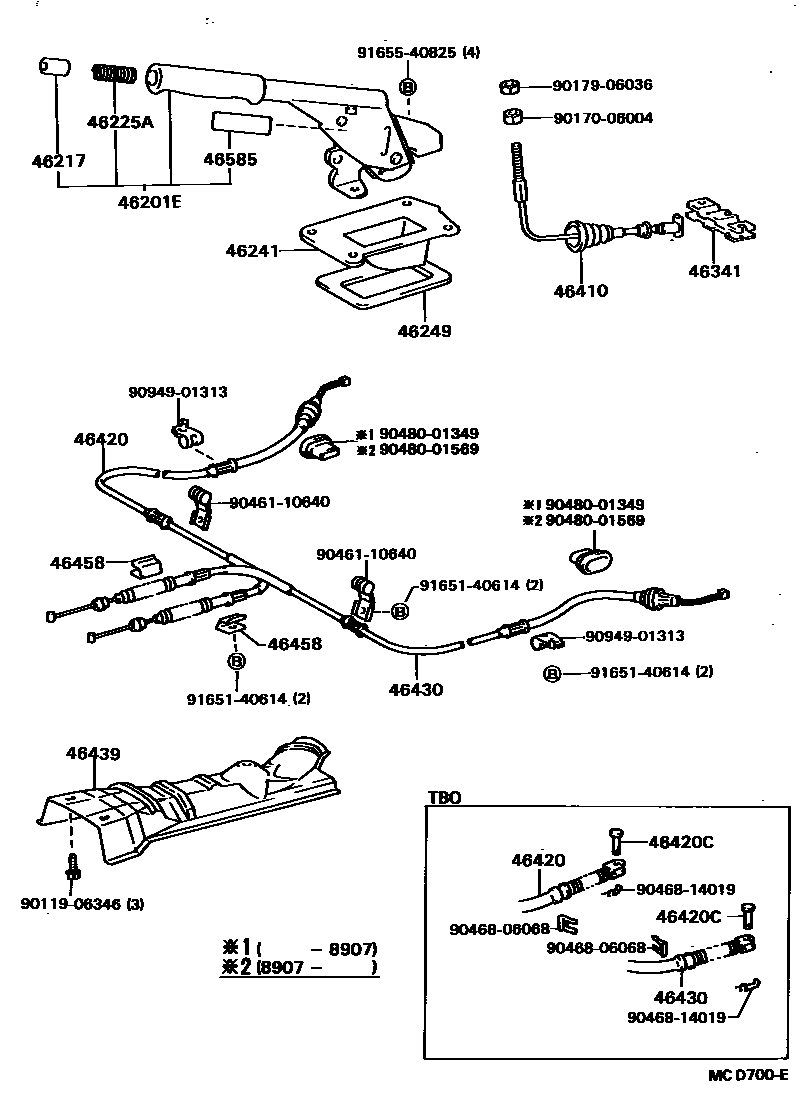

Toyota COROLLA Parking Brake & Cable — Figure 4601
Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46225A | Compression spring (for parking brake pawl lever) | 90501-10745 |
| 46241 | Parking brake lever dust cover | 46241-16030 · 46241-20050 |
| 46249 | Parking brake hole cover | 46249-16020 · 46249-20020 |
| 46341 | Parking brake balancer | 46341-16020 |
| 46410 | Parking brake cable assembly No. 1 | 46410-10050 · 46410-16030 |
| 46420 | Parking brake No. 2 cable assembly | 46420-16090 · 46420-16110 |
| 46420C | Pin with hole (for parking brake cable) | 90240-08040 |
| 46430 | Parking brake No. 3 cable assembly | 46430-16090 · 46430-16110 |
| 46439 | Parking brake cable insulation pad | 46439-16010 |
| 46458 | Cable fixings | 46458-20020 · 46458-50010 |
| 46585 | Parking brake warning plate | 46585-16020 |
