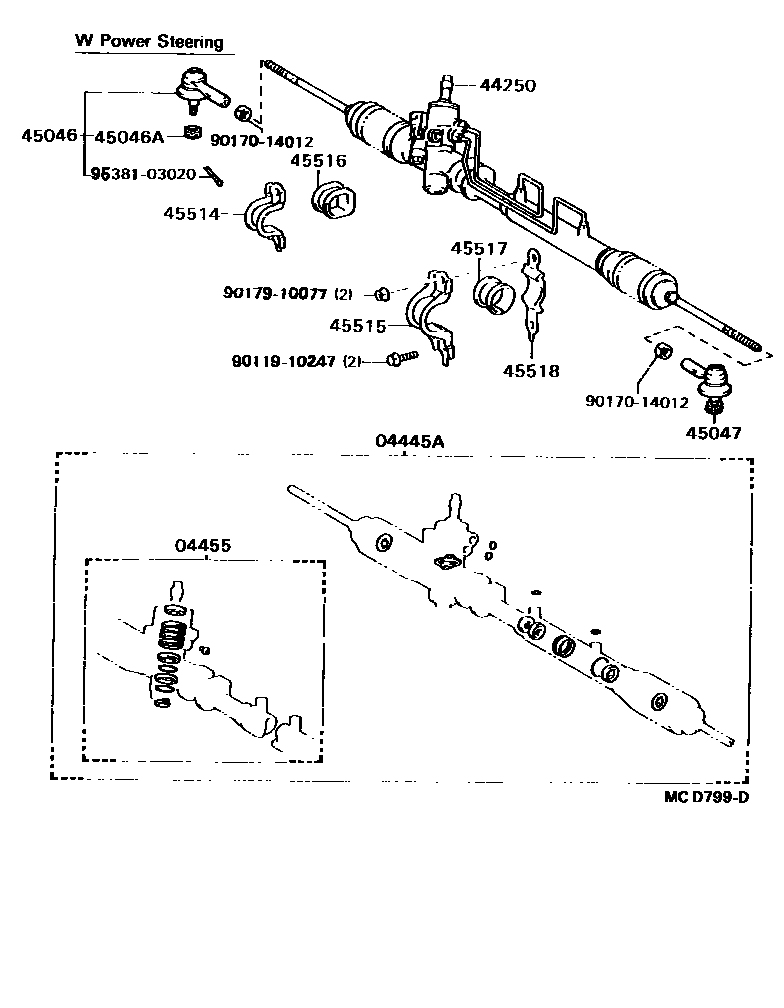

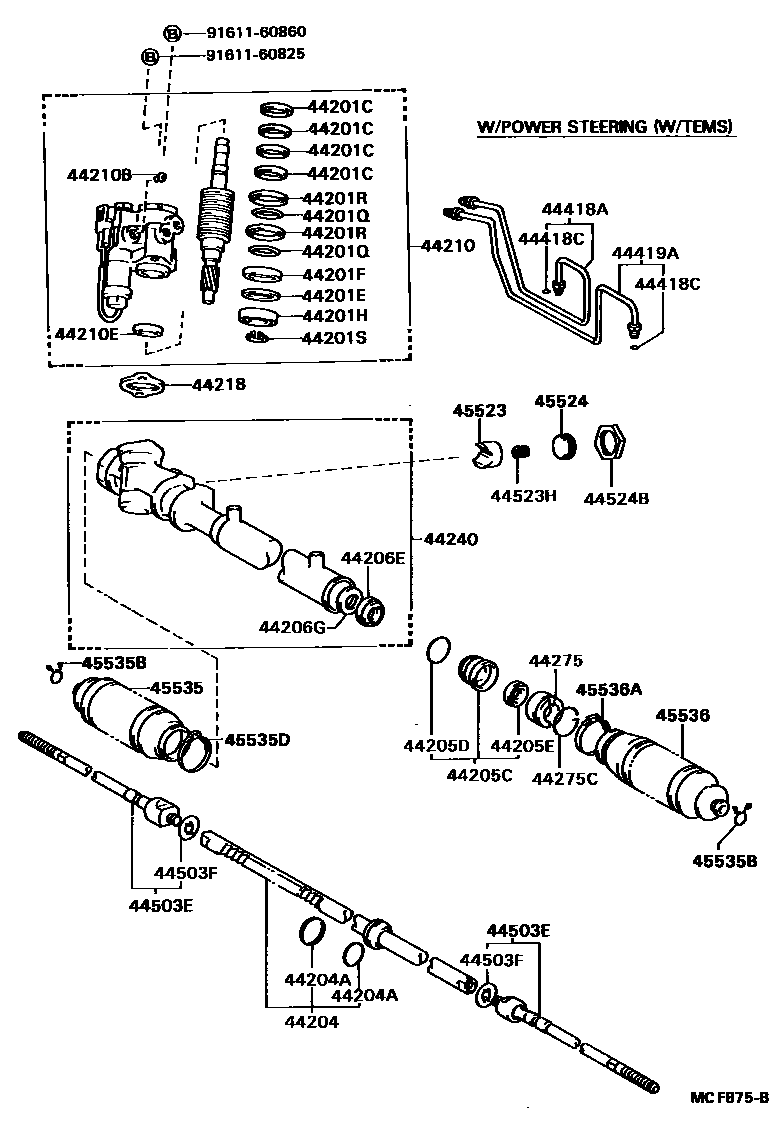

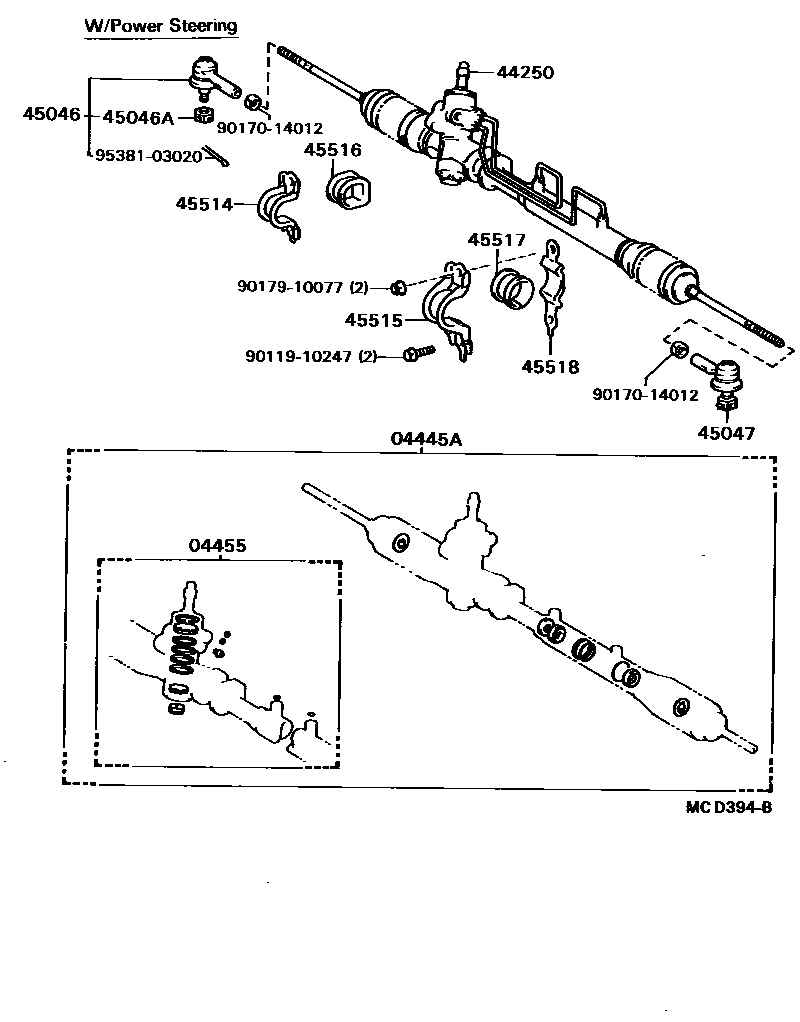

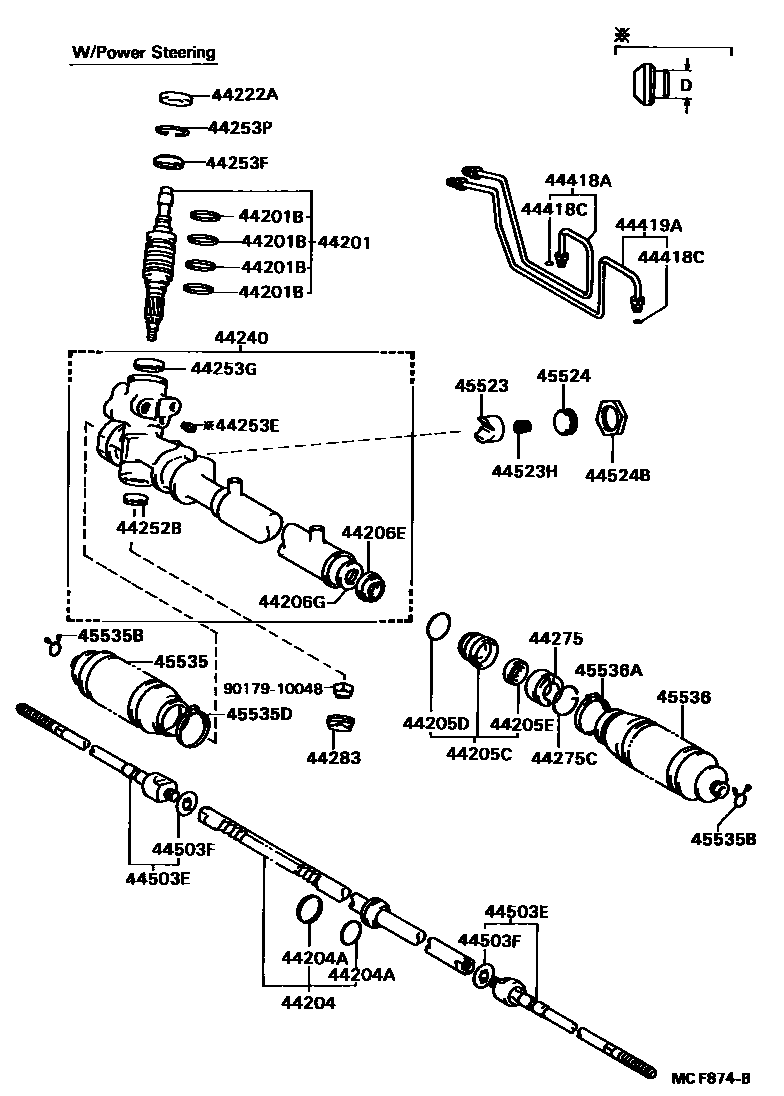

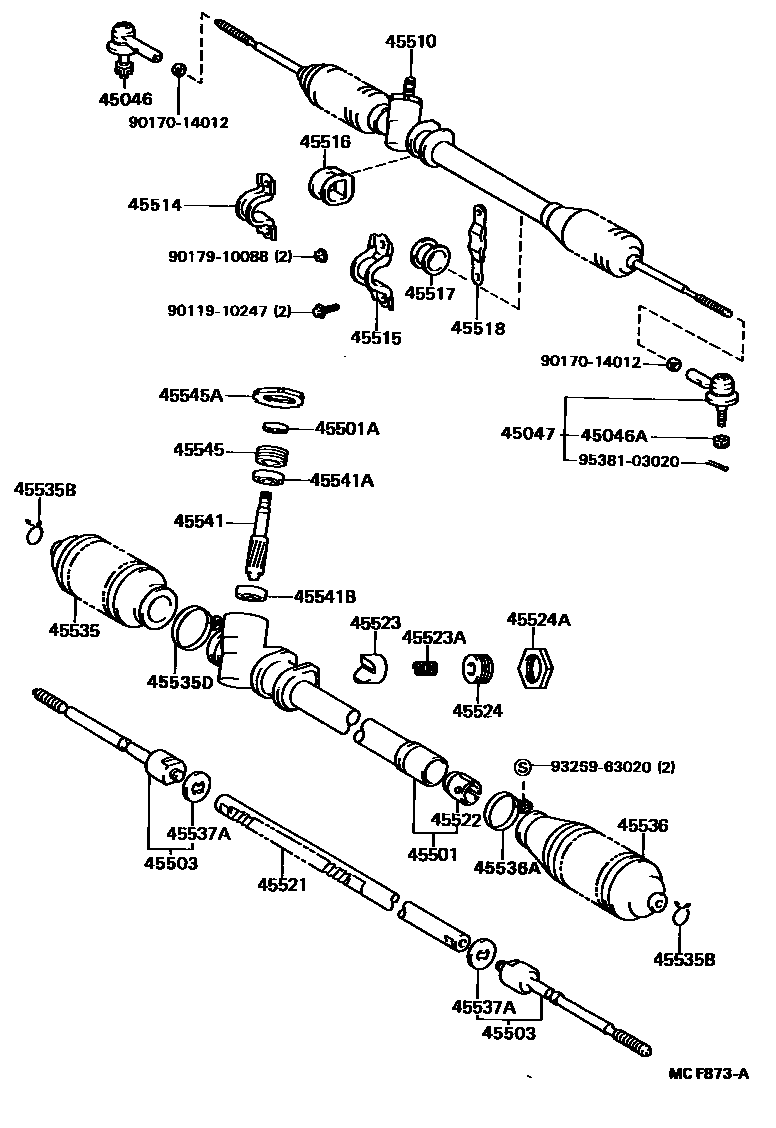

Toyota COROLLA 前转向齿轮和连杆 — Figure 4505
Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 5 images and 69 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-16032 · 04445-16043 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-16020 · 04455-16030 |
| 44201 | Power steering control valve sub-assembly | 44201-16030 · 44201-16060 |
| 44201B | Spacer (for power steering control valve) | 90560-33003 |
| 44201C | Ring (for power steering control valve) | 90560-33005 · 90562-33001 |
| 44201E | Flat Washer (for power steering control valve) | 90201-30004 |
| 44201F | Oil seal (for power steering control valve) | 90311-26003 |
| 44201H | Bearing (for upper power steering control valve) | 90363-20026 |
| 44201Q | O-ring (for power steering control valve) | 90301-32004 |
| 44201R | Ring (for power steering control valve) | 90560-35011 |
| 44201S | Snap ring (for power steering control valve) | 96150-02000 |
| 44204 | Power steering rack sub-assembly | 44204-16030 |
| 44204A | Ring (for steering rack piston) | 90301-29005 · 90562-34002 |
| 44205C | Power steering rack bushing sub-assembly | 44205-16020 |
| 44205D | O-ring (for power steering rack bushing) | 90301-33004 |
| 44205E | Oil seal (for power steering rack bushing) | 90311-22014 |
| 44206E | No. 1 oil seal (for power steering cylinder barrel) | 90311-22013 |
| 44206G | No. 1 spacer (for power steering cylinder barrel) | 90560-23011 |
| 44210 | Power steering control valve assembly | 44210-16050 |
| 44210B | Connector seat (for power steering control valve) | 90410-05006 |
| 44210E | Oil seal (for power steering control valve) | 90311-19005 |
| 44218 | valve housing gasket | 44218-16010 |
| 44222A | Dust cover (for power steering gear) | 45222-16080 |
| 44240 | Power steering rack housing assembly | 44240-16030 · 44240-16031 · 44240-16050 · 44240-16051 · 44240-16060 · 44240-16061 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-16051 · 44250-16071 · 44250-16081 · 44250-16090 |
| 44252B | Bearings (for power steering pinion) | 90363-12006 · 90363-12009 |
| 44253E | Connector seat (for power steering rack housing) | 90410-05006 |
| 44253F | No. 1 oil seal (for power steering rack housing) | 90311-19009 |
| 44253G | No. 2 oil seal (for power steering rack housing) | 90310-23004 |
| 44253P | Hole snap ring (for power steering rack housing) | 90521-40001 |
| 44275 | Cylinder end stop | 44275-16020 |
| 44275C | Coil (for cylinder end stop) | 90580-18001 |
| 44283 | Rack housing cover | 44283-16010 |
| 44418A | Right steering pressure oil pipe | 44418-16030 · 44418-16050 |
| 44418C | O-ring (for steering pressure oil pipe) | 90301-03001 |
| 44419A | Left steering pressure oil pipe | 44419-16030 · 44419-16050 |
| 44503E | Steering rack end sub-assembly (for power steering) | 45503-19116 |
| 44503F | Claw washer (for power steering rack end) | 90214-12002 |
| 44523H | Spring (for power steering rack guide) | 90501-23075 |
| 44524B | Nut (for power steering rack guide cover) | 90179-30002 |
| 45046 | Right tie rod end sub-assembly | 45046-19175 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45046-19175 |
| 45501 | Steering rack housing sub-assembly | 45501-16240 |
| 45501A | T-type oil seal (for steering rack housing) | 90311-15001 · 90311-15002 |
| 45503 | Steering rack end sub-assembly | 45503-19116 |
| 45510 | Steering gear assembly | 45510-16091 · 45510-16111 |
| 45514 | No. 1 steering rack housing bracket | 45514-16030 · 45514-16040 |
| 45515 | No. 2 steering rack housing bracket | 45515-16040 · 45515-16050 |
| 45516 | No. 1 steering rack housing seal | 45516-10040 · 45516-16040 |
| 45517 | No. 2 steering rack housing seal | 45517-10040 · 45517-16040 |
| 45518 | No. 3 steering rack housing bracket | 45518-16020 · 45518-16030 |
| 45521 | steering rack | 45521-16170 · 45521-16190 |
| 45522 | steering rack bushing | 45522-10040 |
| 45523 | Rack guide block (for steering gear) | 45523-10020 · 45523-10030 |
| 45523A | Spring (for steering gear rack guide block) | 90501-26038 |
| 45524 | Steering rack guide block spring cover | 45524-10020 · 45524-10030 |
| 45524A | Nut (for steering rack guide spring cover) | 90179-30001 |
| 45535 | No. 1 steering rack dust cover | 45535-10021 · 45535-16020 |
| 45535B | Clamp (for steering rack dust boot) | 90467-18003 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 90460-56001 · 90461-10273 |
| 45536 | No. 2 steering rack dust cover | 45536-10060 · 45536-10070 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90460-48002 · 90461-10646 |
| 45537A | Claw washer (for steering rack end lock) | 90214-12002 |
| 45541 | steering pinion | 45541-16090 |
| 45541A | Upper radial ball bearing (for steering pinion) | 90363-15003 |
| 45541B | Lower radial ball bearing (for steering pinion) | 90363-13001 |
| 45545 | Pinion Bearing Adjustment Screw | 45545-10010 |
| 45545A | Nut (for pinion bearing adjustment screw) | 90179-38001 |
