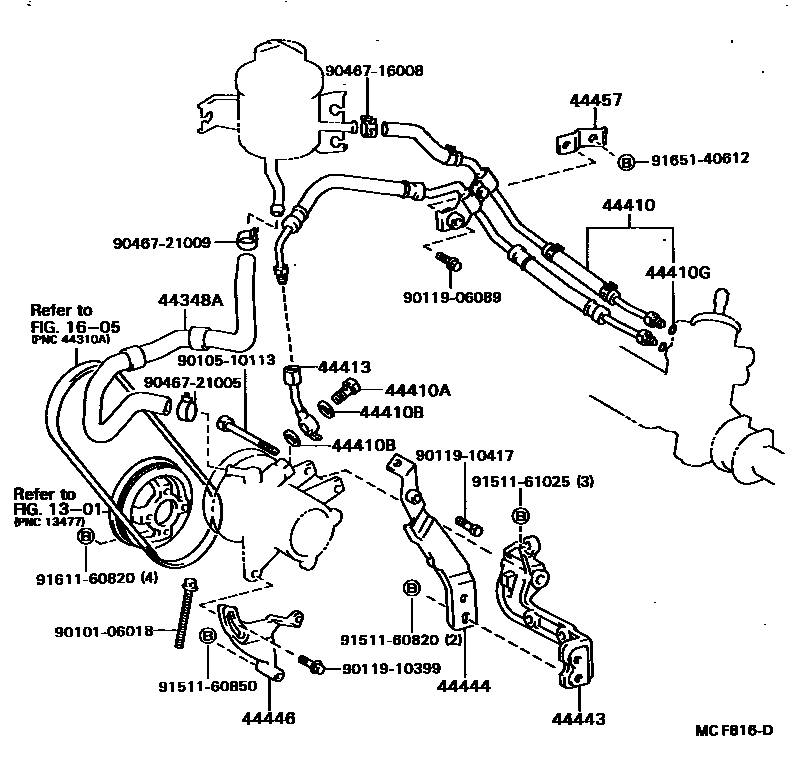

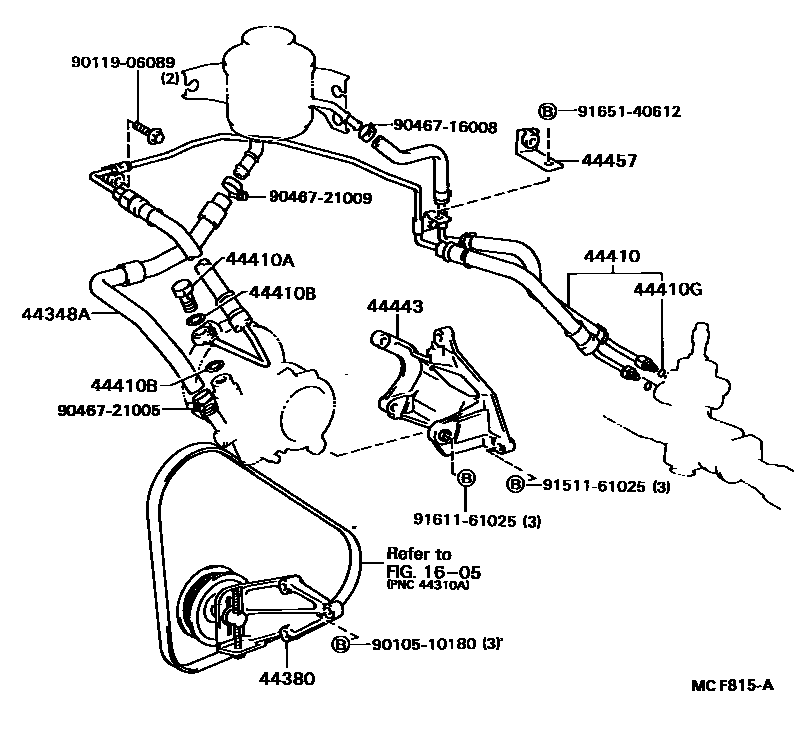

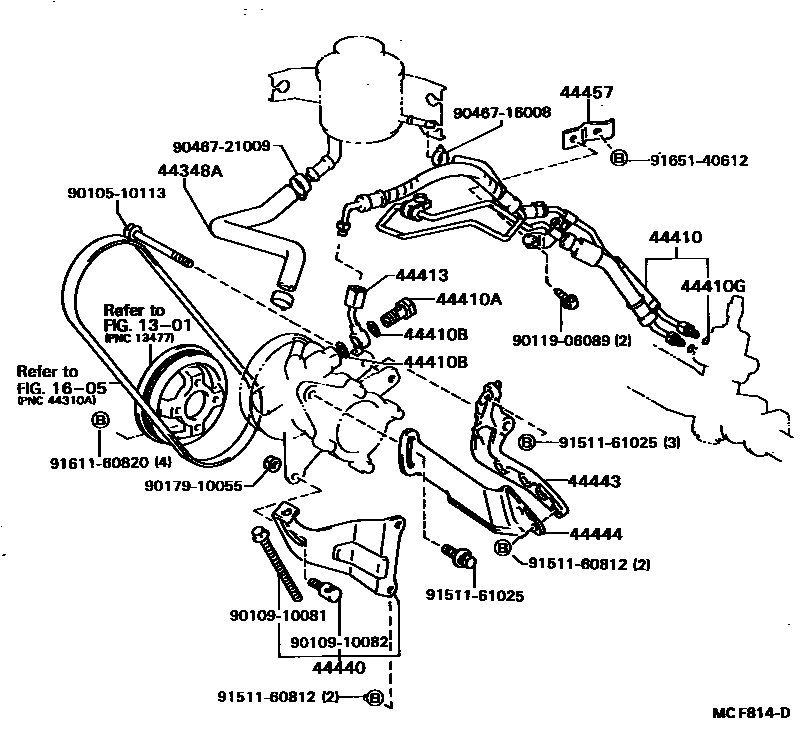

Toyota COROLLA 动力转向配管 — Figure 4503
Toyota COROLLA EPC diagram 4503, 动力转向配管, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44348A | No. 1 hose (tank to pump) | 44348-16011 · 44348-16020 · 44348-16030 |
| 44380 | Power steering idler assembly with bracket | 44380-16010 |
| 44410 | Pressure supply pipe assembly | 44410-16050 · 44410-16060 · 44410-16070 · 44410-16080 |
| 44410A | Connector bolt (for pressure supply pipe) | 90401-16008 |
| 44410B | Gasket (for pressure supply pipe) | 90430-16242 |
| 44410G | O-ring (for pressure supply pipe) | 90301-07009 |
| 44413 | No. 1 pressure supply pipe | 44413-16021 · 44413-16030 · 44413-16050 |
| 44440 | Pump bracket assembly | 44440-16010 · 44440-16020 |
| 44443 | pump bracket | 44443-10020 · 44443-16010 · 44443-16030 |
| 44444 | Pump back stay | 44444-10020 · 44444-16011 |
| 44446 | Adjust the stand | 44446-16020 |
