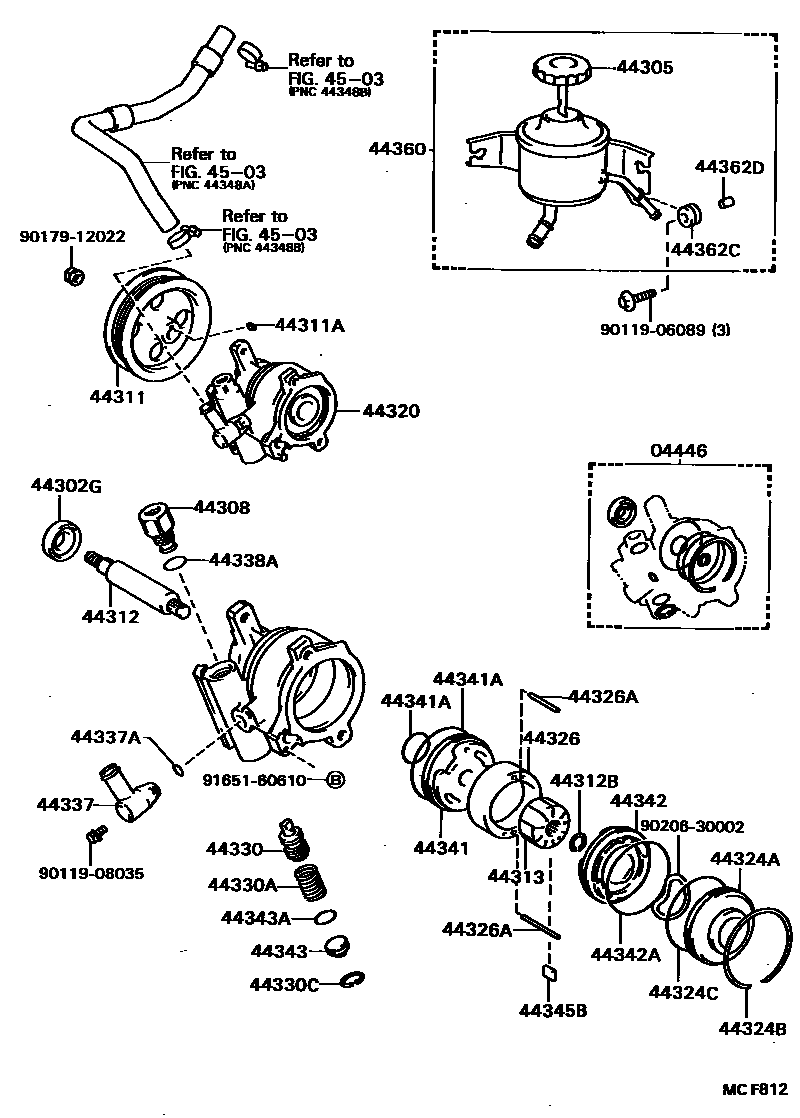

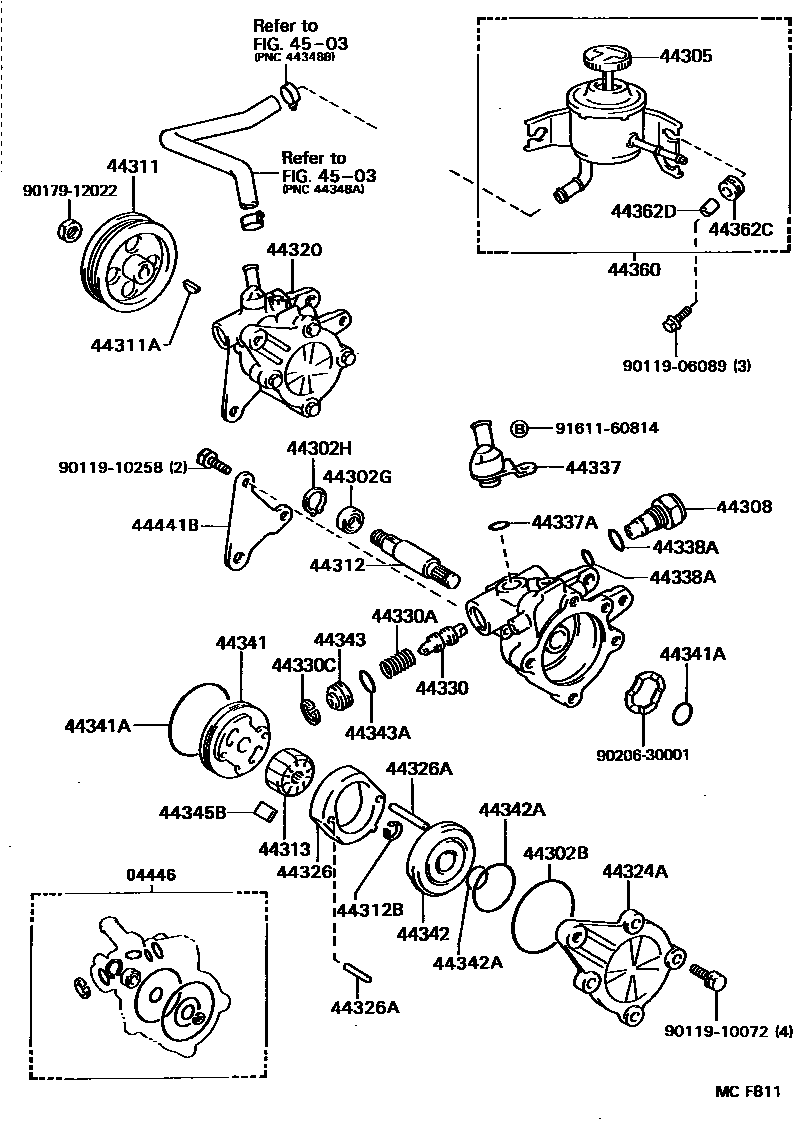

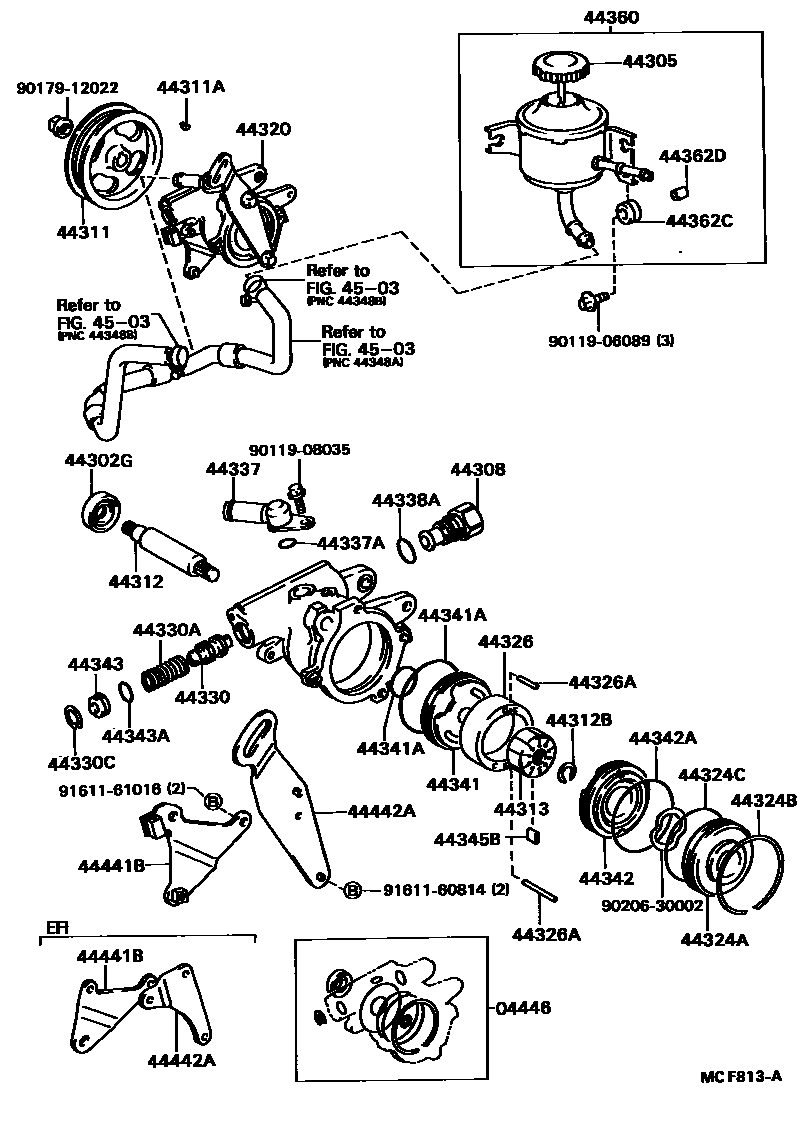

Toyota COROLLA 叶片泵和储油罐(动力转向) — Figure 4502
Toyota COROLLA EPC diagram 4502, 叶片泵和储油罐(动力转向), with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-16020 · 04446-16030 · 04446-20030 |
| 44302B | No. 1 O-ring (for vane pump housing) | 90301-63002 |
| 44302G | No. 2 oil seal (for vane pump housing) | 90311-18007 · 90311-18008 |
| 44302H | No. 1 snap ring (for vane pump housing) | 90521-32001 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-12010 · 44305-22040 |
| 44308 | Pressure hole connector sub-assembly | 44308-12042 · 44308-16020 · 44308-16030 · 44308-20012 |
| 44311 | vane pump pulley | 44311-12030 · 44311-16010 · 44311-16020 |
| 44311A | Vane pump pulley key | 90280-05008 |
| 44312 | vane pump shaft | 44312-12020 · 44312-12030 |
| 44312B | No. 1 snap ring (for vane pump shaft) | 90520-10003 |
| 44313 | vane pump rotor | 44313-22040 · 44313-22050 · 44313-22060 · 44313-22070 · 44313-22080 |
| 44320 | Vane pump assembly | 44320-16041 · 44320-16051 · 44320-16062 · 44320-16081 · 44320-16091 · 44320-16100 · 44320-16101 |
| 44324A | Pump back shell | 44324-12031 · 44324-16020 |
| 44324B | Hole snap ring (for pump rear housing) | 90521-62002 |
| 44324C | O-ring (for pump rear housing) | 90301-52001 |
| 44326 | Cam ring (for vane pumps) | 44325-12060 · 44325-12070 · 44325-12080 · 44325-12090 · 44325-12100 · 44325-12110 · 44325-12120 · 44325-12130 · 44325-12140 · 44325-12150 |
| 44326A | Direct sales (for vane pump cam rings) | 90250-04047 · 90250-04049 · 90250-05008 · 90250-05017 |
| 44330 | Flow control valve assembly | 44330-14010 · 44330-14020 · 44330-14030 · 44330-14040 · 44330-14050 · 44330-14060 · 44330-16130 · 44330-16131 · 44330-16140 · 44330-16141 · 44330-16150 · 44330-16151 · 44330-16160 · 44330-16161 · 44330-16170 · 44330-16171 · 44330-16180 · 44330-16181 · 44330-16190 · 44330-16191 · 44330-16200 · 44330-16201 · 44330-16210 · 44330-16211 · 44330-16220 · 44330-16221 · 44330-16230 · 44330-16231 · 44330-16240 · 44330-16241 · 44330-20010 · 44330-20020 · 44330-20030 · 44330-20040 · 44330-20050 · 44330-20060 · 44330-32070 · 44330-32080 · 44330-32090 · 44330-32100 · 44330-32110 · 44330-32120 · 44330-35070 · 44330-35080 · 44330-35090 · 44330-35100 · 44330-35110 · 44330-35120 |
| 44330A | Compression spring (for flow control valve) | 90501-12103 |
| 44330C | Snap ring (for flow control valve) | 96151-01700 · 96151-02200 |
| 44337 | Power steering suction port connector | 44337-10020 · 44337-16010 · 44337-16021 |
| 44337A | O-ring (for power steering oil suction port) | 90301-12003 · 96711-19013 |
| 44338A | O-ring (for pressure port connector) | 90301-19003 · 90301-22001 · 96711-19014 |
| 44341 | Vane pump front cover | 44341-30030 · 44341-32010 |
| 44341A | O-ring (for vane pump front cover) | 90301-21001 · 90301-25001 · 90301-52001 · 90301-56002 |
| 44342 | Vane pump rear end cover | 44342-30020 · 44342-32010 |
| 44342A | O-ring (for vane pump rear end cover) | 90301-13004 · 90301-30004 · 90301-52001 |
| 44343 | Flow control spring seat | 44343-12010 · 44343-12030 |
| 44343A | O-ring (for flow control spring seat) | 96711-19014 · 96711-19019 |
| 44345B | vane pump disc | 44345-12010 · 44345-12020 · 44345-12030 · 44345-12040 · 44345-12050 |
| 44360 | Vane pump oil storage tank assembly | 44360-16011 · 44360-16012 · 44360-16021 · 44360-16031 |
| 44362C | Buffer pad (for vane pump oil storage tank) | 90540-09004 |
| 44362D | Spacer (for vane pump reservoir) | 90560-06014 |
| 44441B | Pump front bracket | 44441-16010 · 44441-16021 · 44441-16030 |
| 44442A | Vane pump rear bracket | 44442-16010 · 44442-16020 |
