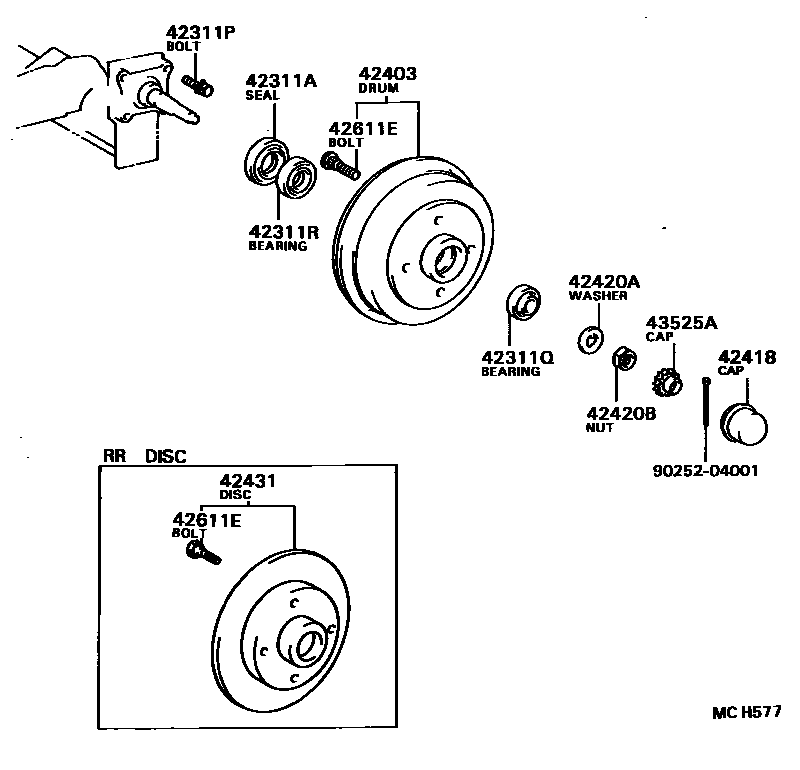

Toyota COROLLA 后桥半轴和后桥轮毂 — Figure 4102
Toyota COROLLA EPC diagram 4102, 后桥半轴和后桥轮毂, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42311A | Oil seal (for rear axle half shaft) | 90311-36001 |
| 42311P | Bolt (for rear axle half shaft) | 90119-10447 |
| 42311Q | Outer bearing (for rear axle half shaft) | 90368-17017 |
| 42311R | Inner bearing (for rear axle half shaft) | 90366-25003 |
| 42403 | Rear brake drum sub-assembly | 42403-16020 |
| 42418 | Rear hub grease cap | 43514-10030 |
| 42420A | Claw washer (for rear axle half shaft) | 90214-16010 |
| 42420B | Nut (for rear axle half shaft) | 90170-16137 |
| 42431 | rear brake disc | 42403-16050 |
| 42611E | Hub bolts (for rear axle) | 90942-02047 |
| 43525A | Rear wheel adjustment lock cover | 43525-20011 |
