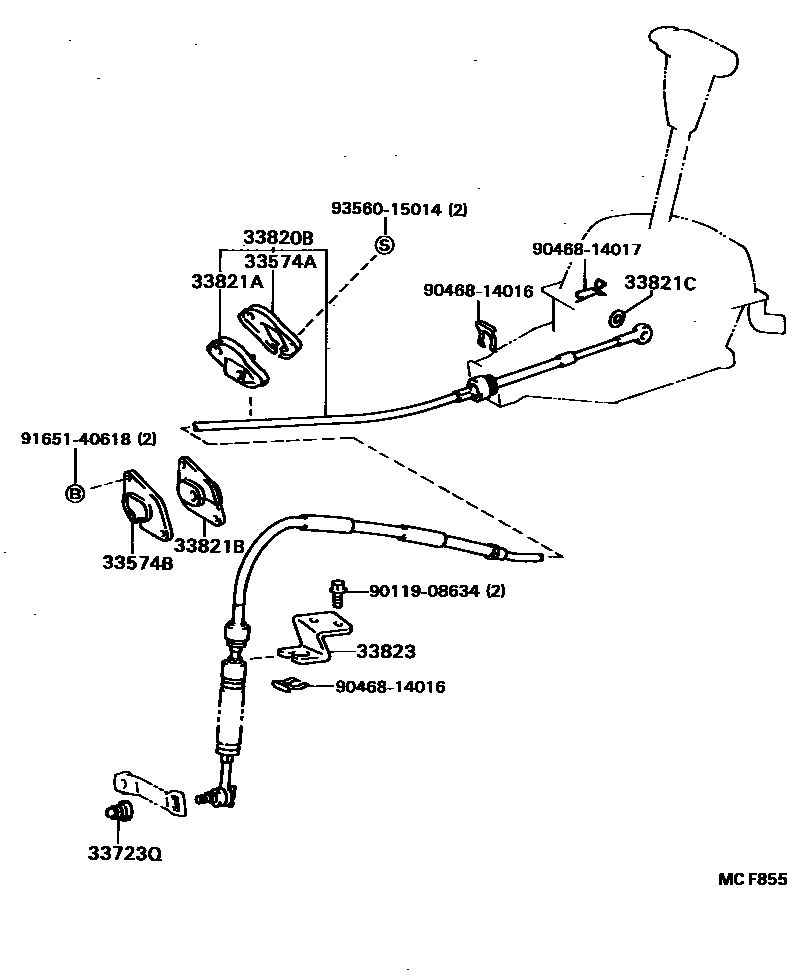

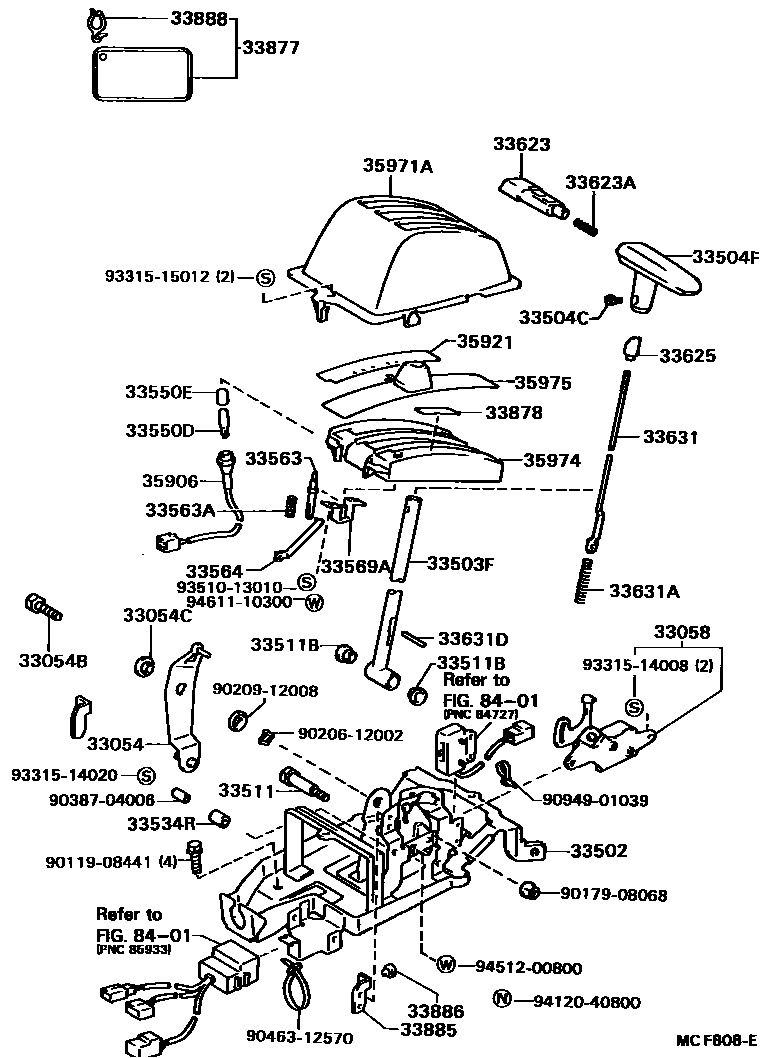

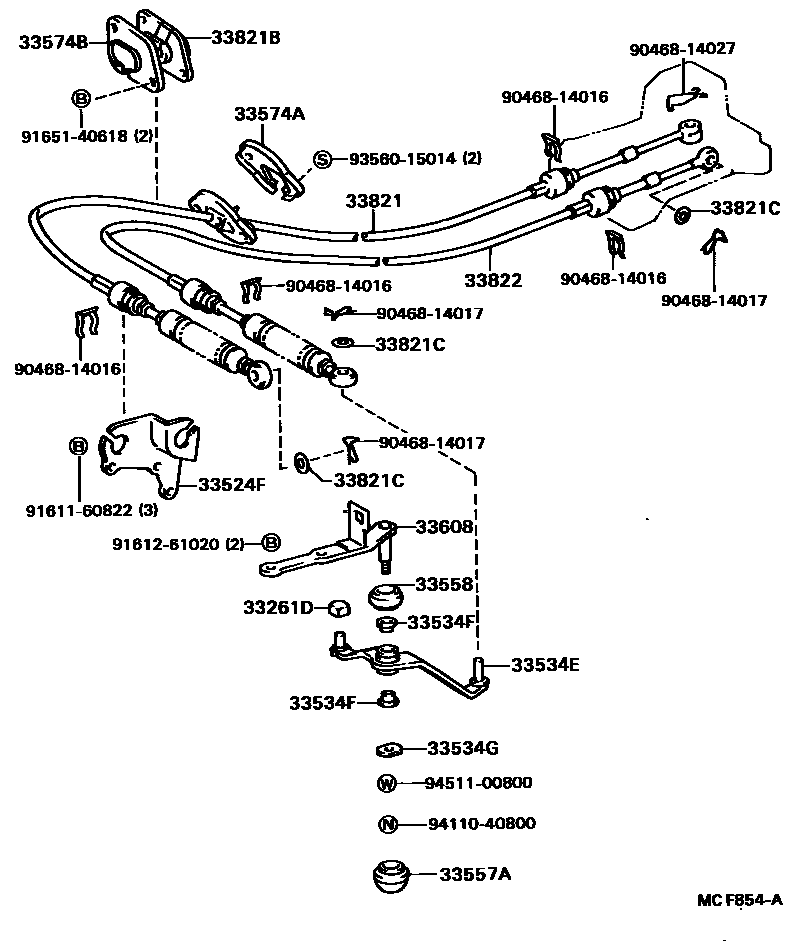

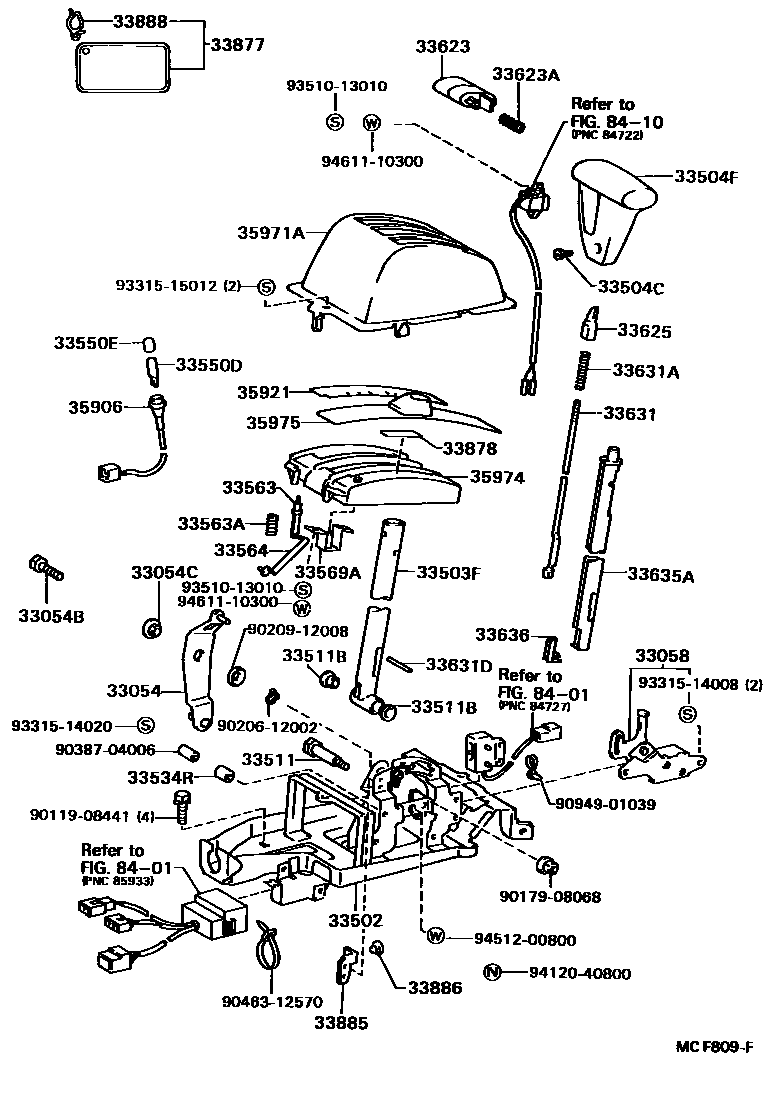

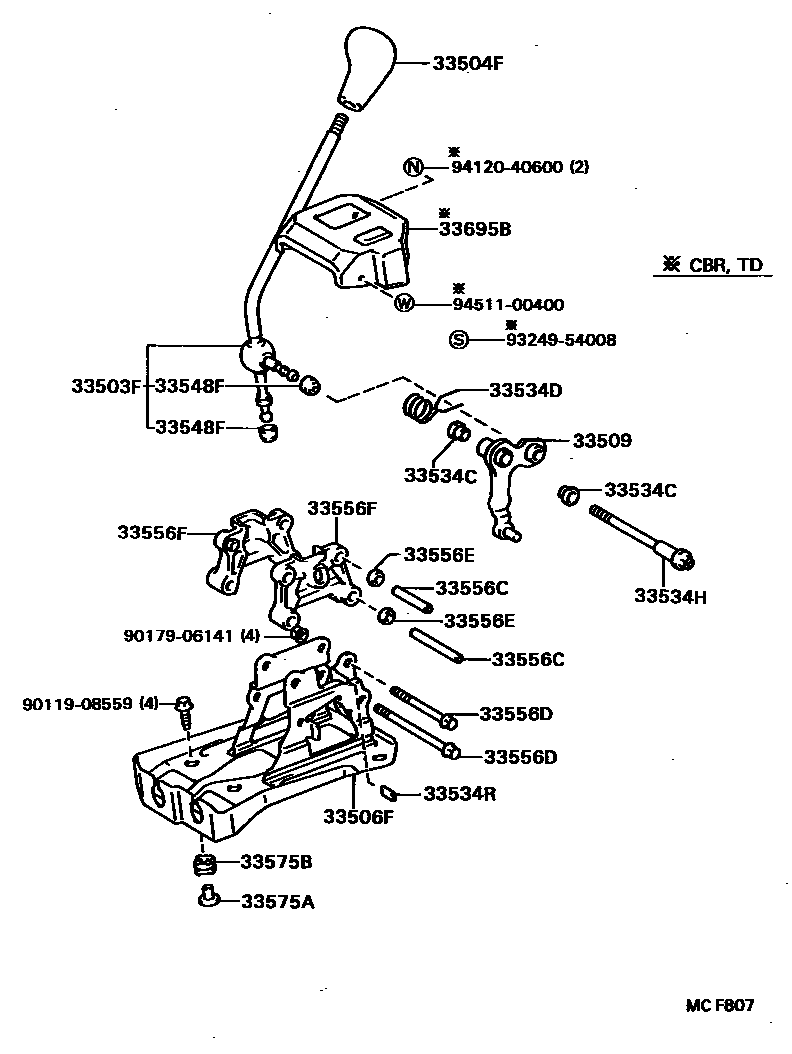

Toyota COROLLA Shift Lever & Retainer — Figure 3312
Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 5 images and 63 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33054 | No. 2 shift lever sub-assembly (for floor shift) | 33054-16020 |
| 33054B | Bolt (for shift lever No. 2) | 90119-08606 |
| 33054C | Bushing (for shift lever No. 2) | 90386-12029 |
| 33058 | Shift lock solenoid valve bracket sub-assembly | 33058-16010 |
| 33261D | Bushing (for shift lever) | 90389-10009 |
| 33502 | Shift lever base plate sub-assembly | 33502-16131 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33503-16151 · 33503-16171 · 33503-16200 · 33503-16211 |
| 33504C | Screw (for securing shift lever knob) | 90159-40109 |
| 33506F | Shift control lever stopper sub-assembly (for floor shift) | 33506-16021 |
| 33509 | No. 1 gear selection right-angle lever sub-assembly | 33509-20020 |
| 33511 | Control shaft (for floor shifting) | 33511-20240 |
| 33511B | Bushing (for control shaft) | 90386-11010 |
| 33524F | Lever housing bracket (for floor shift) | 33524-10030 · 33524-16020 · 33524-16040 |
| 33534C | Bushing (for No. 1 gear selector right-angle lever) | 90386-12013 |
| 33534D | Torsion spring (for No. 1 gear selector right-angle lever) | 90508-20084 |
| 33534E | No. 2 gear selection right-angle lever | 33534-10030 · 33534-16010 · 33534-16050 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33534H | Bolt (for No. 1 gear selector right-angle lever) | 90109-06146 |
| 33534R | Cushion pad (for No. 1 gear selector right-angle lever) | 90540-04005 · 90540-06030 |
| 33548F | Shift lever bushing No. 1 (for floor shift) | 33548-12021 |
| 33550D | position indicator light bulb | 90981-11030 |
| 33550E | position indicator cover | 90339-04023 |
| 33556C | Collar (for transmission shift lever ball seat) | 90387-06044 |
| 33556D | Bolt (for transmission shift lever ball seat) | 90105-06116 |
| 33556E | Cushion pad (for transmission shift lever ball seat) | 90540-08017 |
| 33556F | Transmission shift lever ball seat | 33556-20030 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33563 | Shift lock release button | 33563-16010 |
| 33563A | Compression spring (for shift lock release button) | 90501-07043 |
| 33564 | No. 1 shift lock release link | 33564-16010 |
| 33569A | Shift lock release button guide | 33569-16010 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-10010 |
| 33574B | No. 2 shift cable seal | 33574-10030 |
| 33575A | Bushing No. 1 (for shift lever stop) | 90389-08031 |
| 33575B | Bushing No. 2 (for shift lever stop) | 90389-10018 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-10011 · 33608-12021 · 33608-16010 · 33608-16020 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07009 |
| 33625 | Shift lever handle sleeve | 33625-22020 · 33625-24010 |
| 33631 | Locking lever | 33631-10060 · 33631-16040 |
| 33631A | Compression spring (for locking lever) | 90501-07074 · 90501-08017 |
| 33631D | Grooved pin (for locking lever) | 90256-04003 |
| 33635A | Cable guide No. 1 (for gear selector) | 33635-16020 |
| 33636 | Cable guide No. 2 (for gear selector) | 33636-35010 |
| 33695B | Gear selector spring cover (for floor shift) | 33695-16021 |
| 33723Q | Nut (for connecting rod swivel joint) | 90179-08061 · 90179-08070 |
| 33820B | Transmission control cable assembly | 33820-16050 · 33820-16060 · 33820-16071 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-16010 · 33821-16020 |
| 33821A | No. 1 retaining ring (for transmission control cable) | 90480-01281 |
| 33821B | No. 2 retaining ring (for transmission control cable) | 90480-01288 · 90480-01291 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08267 · 90201-10042 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-16010 · 33822-16020 · 33822-16021 |
| 33823 | No. 1 transmission control cable bracket | 33823-10010 · 33823-16010 |
| 33877 | Shift lock information label No. 1 | 33877-16010 |
| 33878 | No. 2 shift lock information label | 33878-16010 |
| 33885 | Shift lever stop bracket | 33885-16010 · 33885-16020 |
| 33886 | shift lever block | 33886-16010 |
| 33888 | Shift lock information label holder | 33888-16010 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-16041 |
| 35921 | control position indicator board | 35921-16101 |
| 35974 | Position indicator light lower shell | 35974-16051 |
| 35975 | Slide cover (for position indicator light) | 35975-16050 · 35975-16060 |
