Toyota COROLLA 离合器踏板和挠性软管 — Figure 3102

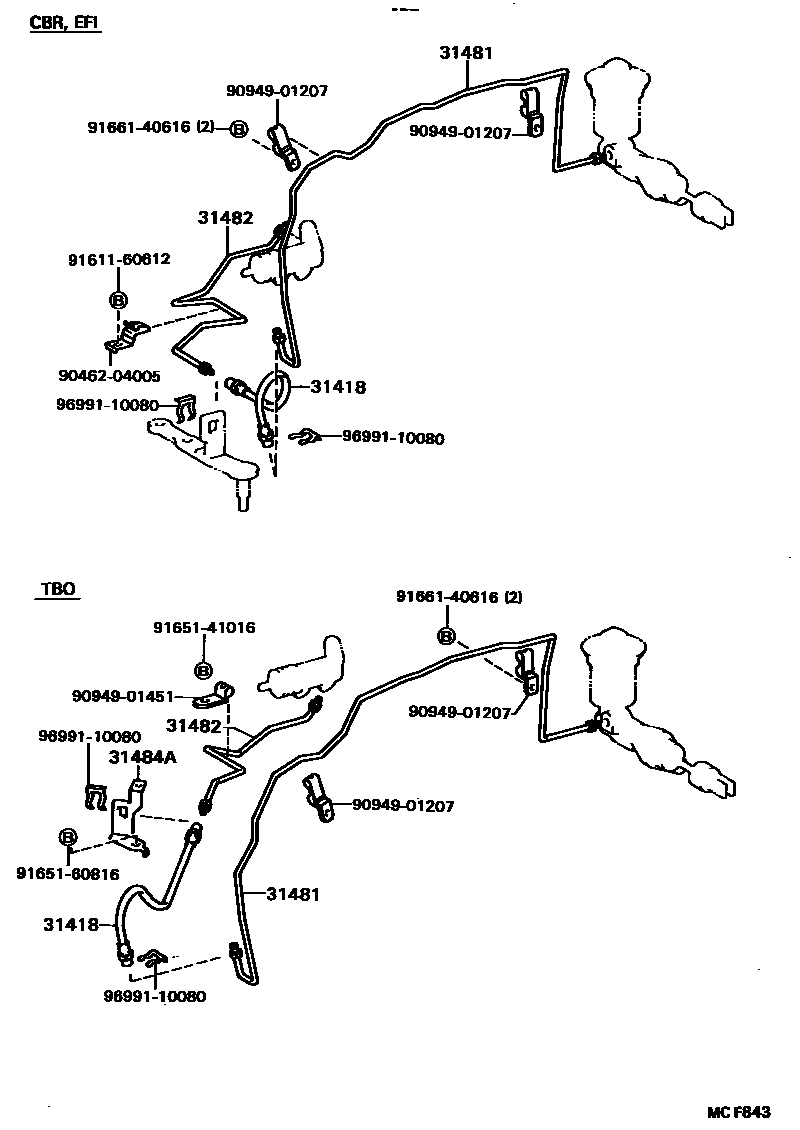

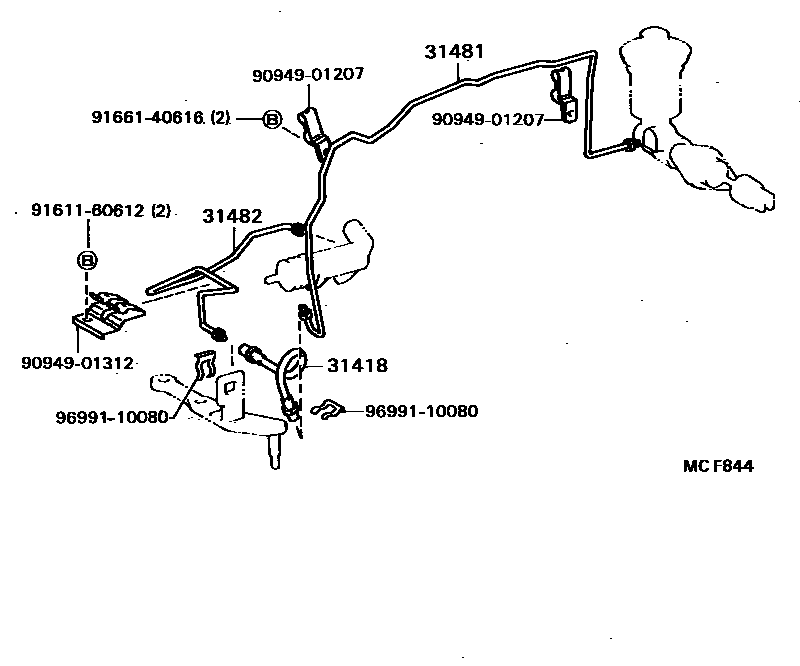

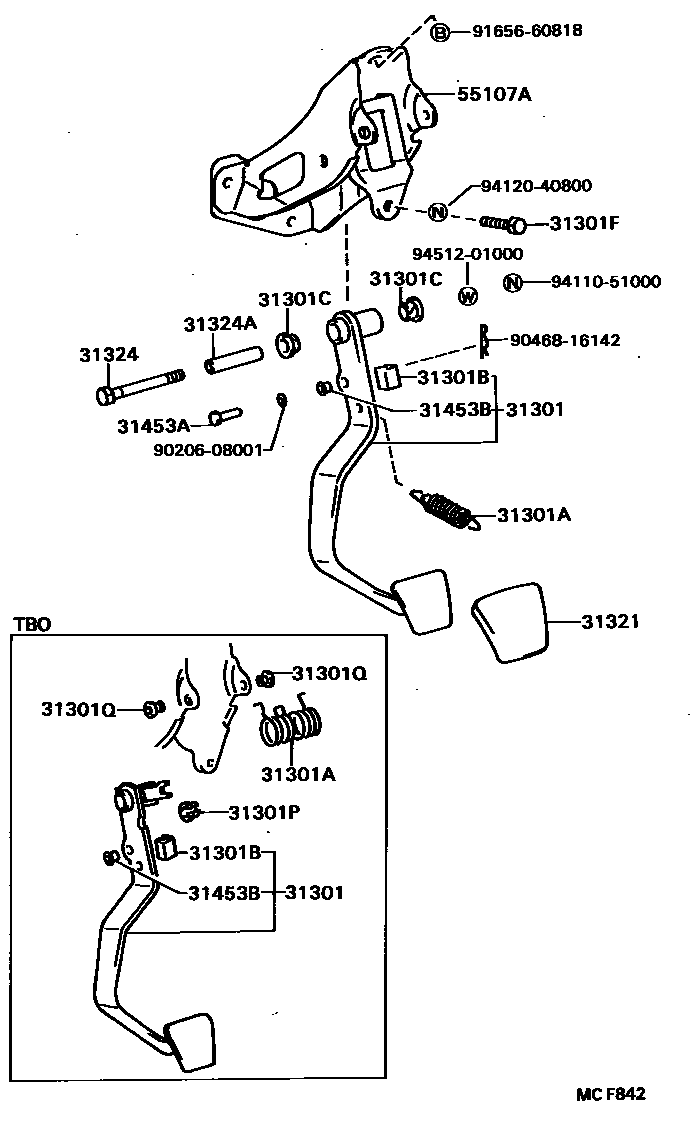

Toyota COROLLA EPC diagram 3102, 离合器踏板和挠性软管, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-16080 · 31310-16020 |
| 31301A | Spring (for clutch pedal) | 90507-14023 · 90507-14036 · 90508-35027 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 47131-10010 |
| 31301C | Bushing (for clutch pedal) | 90386-13192 |
| 31301F | Bolt (for clutch pedal stop) | 90101-08052 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90386-04002 |
| 31301Q | Bushing (for clutch pedal spring) | 90386-04009 |
| 31321 | clutch pedal pad | 31321-14020 |
| 31324 | clutch pedal shaft | 90101-10015 |
| 31324A | clutch pedal collar | 90387-10003 |
| 31418 | clutch hose | 96816-50260 · 96816-50340 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90240-08006 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-16010 · 31481-16020 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-10010 · 31482-16010 · 31482-16020 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-16010 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-16040 · 55107-16060 |
