Toyota COROLLA 燃油泵和燃油管 — Figure 2301

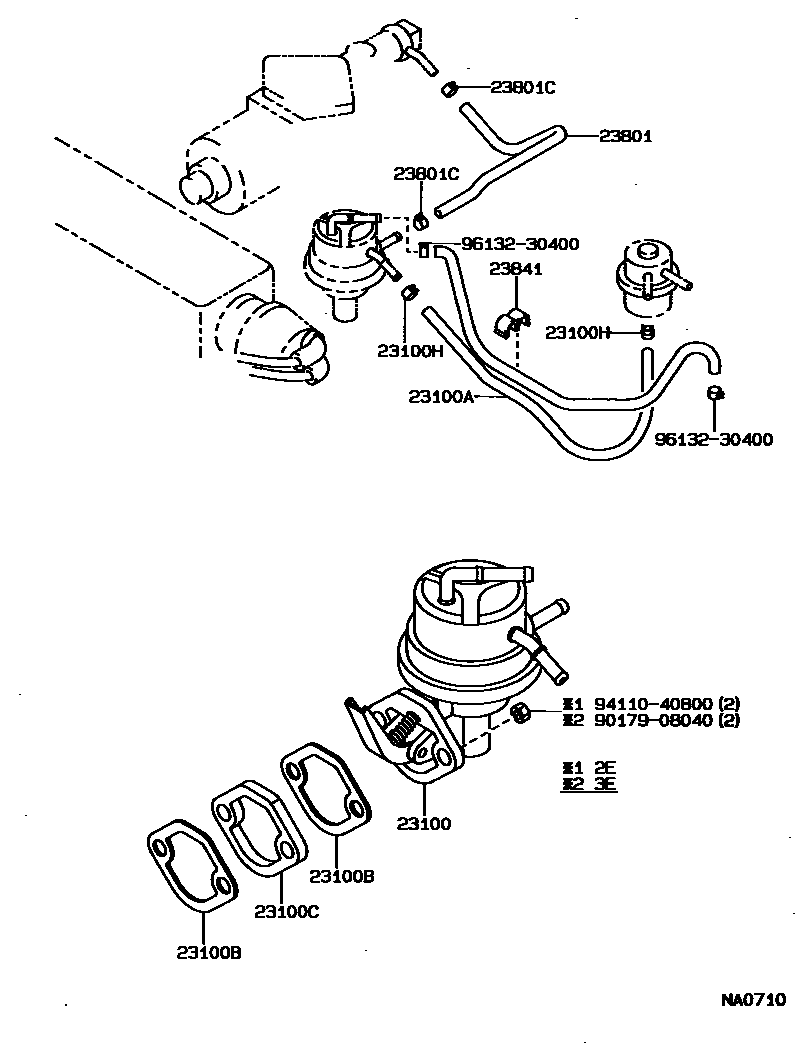

Toyota COROLLA EPC diagram 2301, 燃油泵和燃油管, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23100 | fuel pump assembly | 23100-11032 · 23100-11033 · 23100-11051 |
| 23100A | fuel hose | 95333-06030 |
| 23100B | fuel pump gasket | 90923-05017 · 90923-05024 |
| 23100C | Fuel pump vibration isolation pad | 23915-10020 |
| 23100H | Clamp (for fuel hose) | 96132-30600 |
| 23801 | No. 1 carburetor fuel pipe or hose sub-assembly | 95333-06030 |
| 23801C | Clamp (for carburetor fuel hose) | 90467-11009 · 90467-11049 |
| 23841 | No. 1 fuel pipe (hose) clamp | 90464-00231 |
