Toyota COROLLA 燃油喷射系统 — Figure 2211
Toyota COROLLA EPC diagram 2211, 燃油喷射系统, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

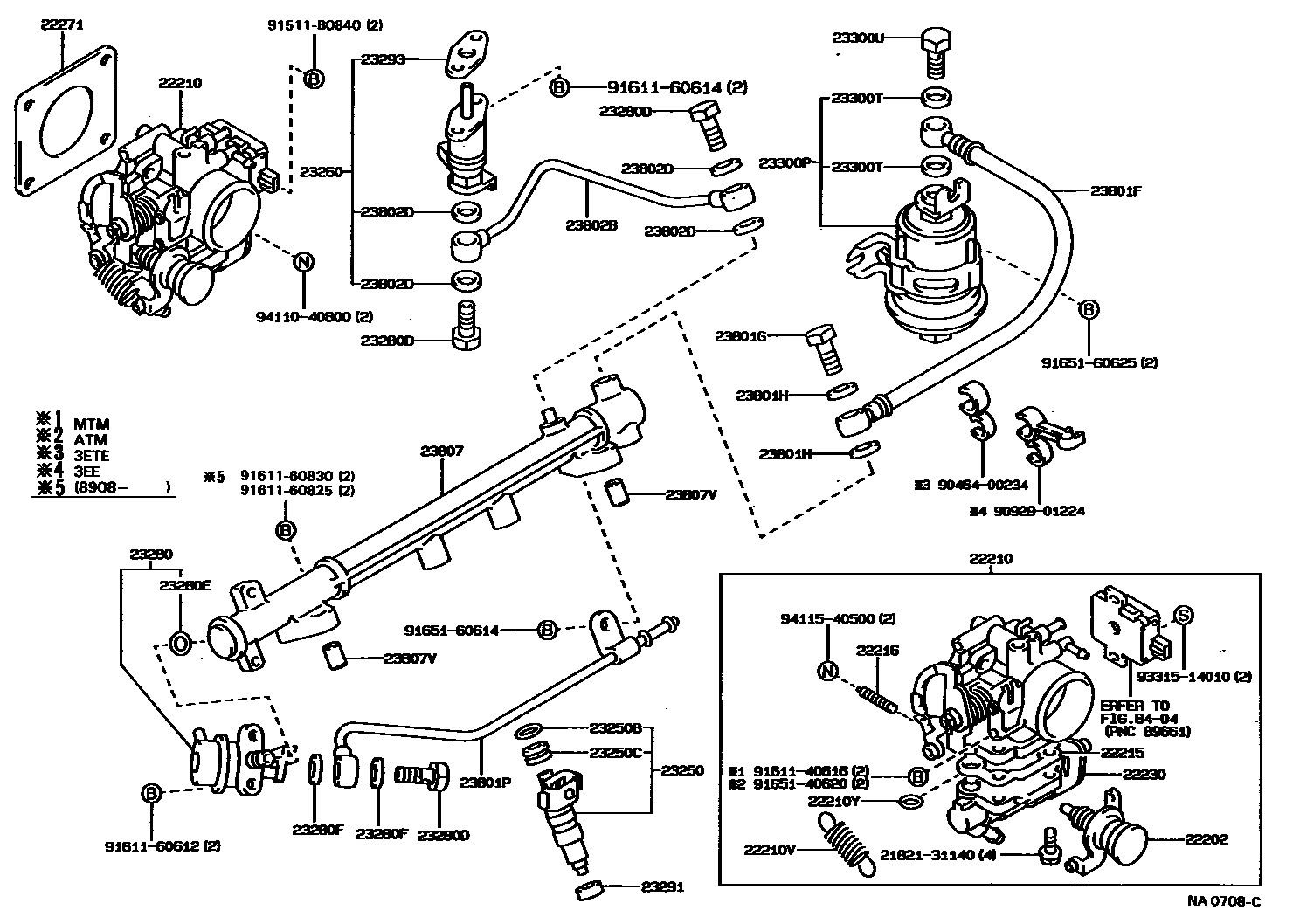

| 22202 | Deceleration buffer sub-assembly | 22202-11021 · 22202-11030 |
| 22210 | Throttle body assembly | 22210-11020 · 22210-11030 |
| 22210V | Tension spring with damper (for throttle return) | 90507-12021 · 90507-12028 |
| 22210Y | O-ring (for air pipe) | 96711-19009 |
| 22215 | Throttle body cover gasket | 22215-11010 · 22215-11110 |
| 22216 | Deceleration buffer adjustment screw | 22216-74010 |
| 22230 | Auxiliary air valve assembly | 22230-11020 · 22230-11030 |
| 22271 | Throttle body gasket | 22271-11010 · 22271-11011 |

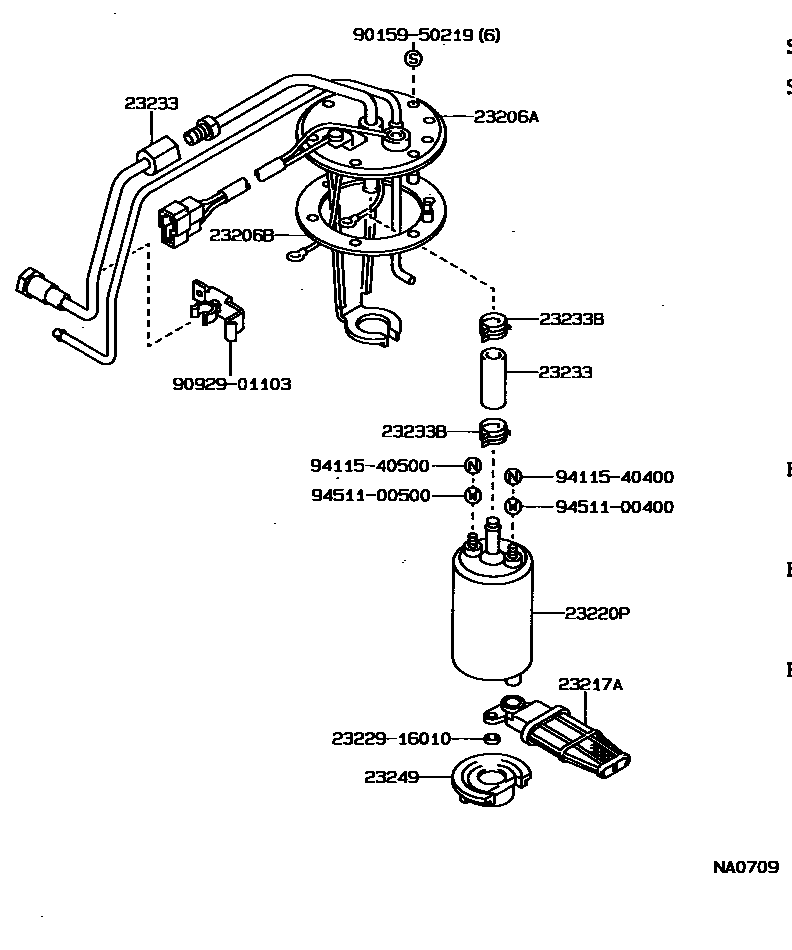

| 23206A | fuel pump bracket | 23206-11030 · 23206-11050 |
| 23206B | fuel pump bracket gasket | 77169-16020 |
| 23217A | fuel pump filter | 23217-16030 · 23217-16043 |
| 23220P | fuel pump assembly | 23220-16084 · 23220-43070 |
| 23233 | fuel pump hose | 23091-11020 · 23239-16010 |
| 23233B | Clamp (for fuel pump hose) | 90467-13001 · 90467-13054 |
| 23249 | Rubber gasket (for fuel pump) | 23249-74150 |
| 23250 | Fuel injector assembly | 23209-11030 · 23209-11040 |
| 23250B | O-ring (for fuel injector) | 90301-07001 |
| 23250C | Gasket (for injector) | 90480-13005 |
| 23260 | Cold start injector assembly | 23260-19065 · 23260-19066 |
| 23280 | Fuel pressure regulator assembly | 23280-11010 · 23280-11011 · 23280-11020 · 23280-11021 |
| 23280D | Connector bolt (for fuel line or hose assembly) | 90401-08003 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07001 |
| 23280F | Gasket (for fuel pressure regulator) | 90430-08005 |
| 23291 | Injector vibration isolation pad | 23291-41010 |
| 23293 | Cold start injector gasket | 23293-62020 · 23293-74010 |
| 23300P | Fuel filter (for EFI) | 23300-19075 |
| 23300T | Gasket (for fuel filter) | 90430-12005 |
| 23300U | Connector bolt (for fuel filter) | 90401-12097 |
| 23801F | No. 1 fuel hose | 90923-01358 |
| 23801G | Connector bolt (for fuel pipe) | 90401-12097 |
| 23801H | Gasket (for fuel lines) | 90430-12005 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-11030 · 23801-11040 |
| 23802B | No. 2 fuel pipe sub-assembly | 23802-11030 · 23802-11031 |
| 23802D | Gasket (for No. 2 fuel line) | 90430-08005 |
| 23807 | Oil pipe sub-assembly | 23807-11010 · 23807-11030 |
| 23807V | No. 1 spacer (for oil pipe) | 90253-11021 · 90561-08036 |
