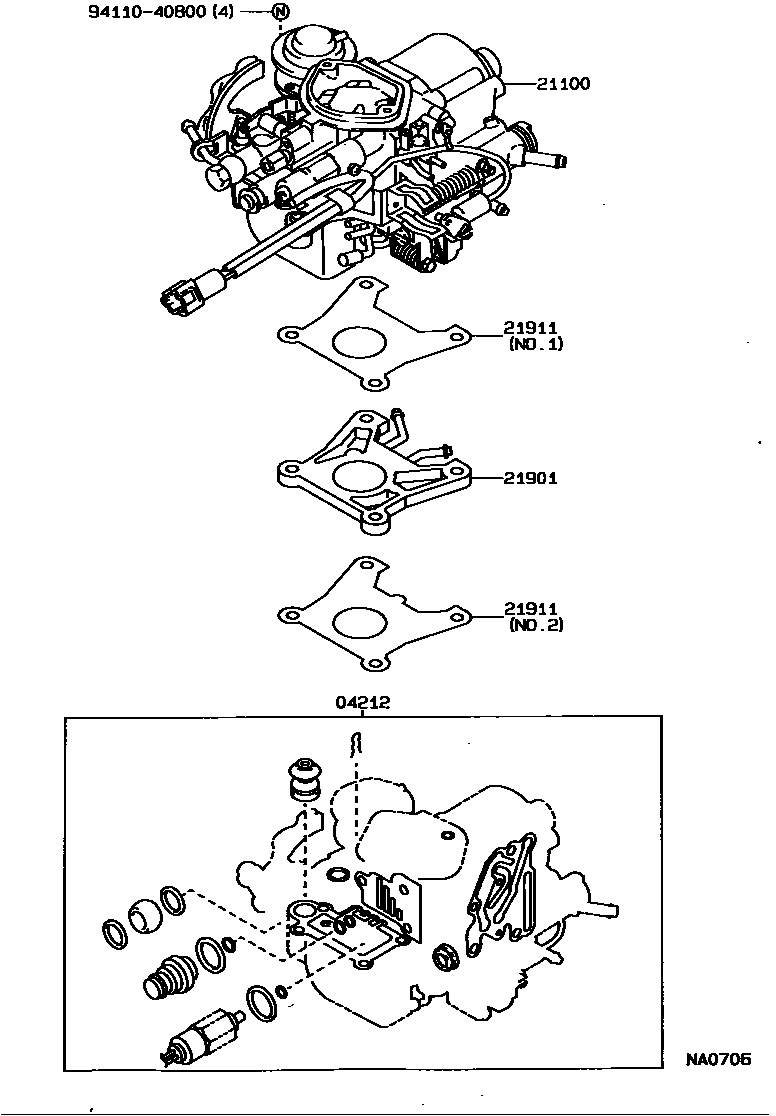

Toyota COROLLA carburetor assembly — Figure 2102
Toyota COROLLA EPC diagram 2102, carburetor assembly, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04212 | carburetor gasket assembly | 04212-11040 · 04212-15091 · 04212-15092 |
| 21100 | carburetor assembly | 21100-11281 · 21100-11304 · 21100-11324 · 21100-11344 · 21100-11364 |
| 21901 | No. 1 carburetor heat insulation pad sub-assembly | 21901-11010 · 21901-11030 |
| 21911 | carburetor gasket | 21911-11020 · 21911-11021 · 21911-11030 · 21911-11031 |
